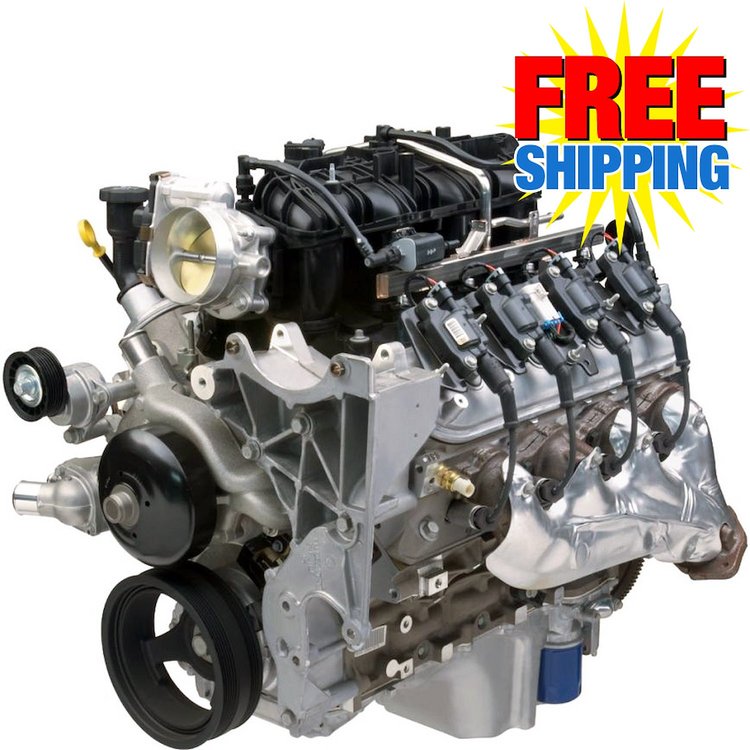

L96 6.0L Truck Crate Engine 360 HP
Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-19370449

L96 6.0L Truck Crate Engine 360 HP

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Crate Engine
L96 6.0L Truck Engine
  • 360 HP @ 5400 RPM
  • 380 ft/lbs TQ @ 4200 RPM

    L96 6.0L TECH SPECS:

    • Engine Type: LS-Series Gen IV V8 Small Block
    • Displacement: 364ci (6.0L)
    • Bore x Stroke: 4.000" x 3.622" (101.6mm x 92mm)
    • Block: Cast-iron with 6-bolt cross-bolted main caps
    • Crankshaft: Nodular Iron with 6-bolt flange
    • Connecting Rods: Powdered metal
    • Pistons: Hypereutectic aluminum with polymer coating, floating wrist pins
    • Camshaft Type: Hydraulic roller (12626660)
    • Camshaft Duration at .050": 193° Intake / 200° Exhaust
    • Cylinder Heads: Aluminum L76/L92
    • Valve Size: 2.00" Intake / 1.56" Exhaust
    • Compression Ratio: 9.6:1
    • Rocker Arms: 1.7:1 Ratio, Investment Cast, Roller Trunnion
    • Recommended Fuel: Regular unleaded pump
    • Maximum Recommended RPM: 6000
    • Reluctor Wheel: 58X
    • Balance: Internal

    INSTALLATION NOTES:

    • Includes electronic throttle body
    • Not intended for marine applications
    • Heavy-Duty LS Truck Power

      Chevrolet Performance's L96 6.0L crate engine is the perfect replacement engine in your truck of LS swap project. Built on the same core components that made the original engine tough and refined, including a unique cast-iron cylinder block casting that's home to a nodular iron crankshaft and durable reciprocating parts. It also features high-flow rectangle port aluminum cylinder heads and a hydraulic roller camshaft that supports the airflow required to hit the 380 lb-ft of torque mark.

      Show More

      Connect and Cruise Kits

      Chevrolet Performance continues to lead the industry with its unprecedented Connect & Cruise crate powertrain systems - factory-engineered engine and transmission combinations. Chevy Performance engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower from them with total confidence. The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation and operation without the need for third-party tuning. Each kit delivers a brand-new, fully assembled crate engine, an electronically controlled overdrive transmission, electronic control modules for both, and the engine control hardware to get it all running in your project vehicle. The convenience of a crate engine, the assurance of factory validated performance, and the value of an inclusive package - that's what you get with Chevrolet Performance's Connect & Cruise crate powertrain systems. Detailed instructions outline all the necessary steps. The engineers did all the hard work of designing and calibrating perfectly matched powertrain systems - and they covered them with a 24-month/50,000-mile limited warranty.



      GM Warranty

    Product LineChevrolet Performance L96 6.0L 360HP Truck Crate Engine
    BrandCHEVROLET PERFORMANCE
    Package Height31.25
    Package Width39.0
    Package Length42.25
    Weight629.0 PG
    Part CategoryPerformance Parts
    Package Qty1
    Package TypeEA
