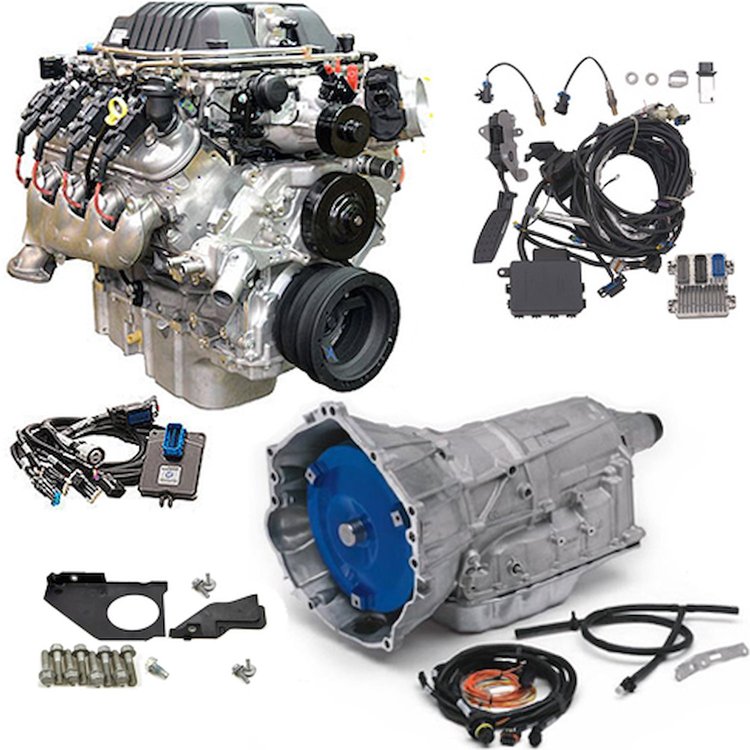

Breakdown of Included Items

ZL1 LSA Supercharged 6.2L Crate Engine

GM supercharged 6.2L LSA engine features a unique aluminum cylinder block that houses a forged steel crankshaft, and durable reciprocating parts, with integrated piston-cooling oil jets. High-flow cylinder heads support the airflow enabled by the sixth-generation 1.9L supercharger with high-twist 4-lobe rotors. The advanced rotor design broadens the supercharger's effective range, providing tire-shredding low-RPM torque and high-RPM horsepower.

LSA 6.2L Engine Specs:

• Engine Type: LS-Series Gen IV Small-Block V-8
• Displacement: 376 ci (6.2L)
• Bore x Stroke: 4.065 x 3.622 in. (103.250 x 92 mm)
• Block: Cast-aluminum with six-bolt, cross-bolted main caps
• Crankshaft: Forged steel with eight-bolt flange
• Connecting Rods: Powdered metal
• Pistons: Hypereutectic aluminum
• Camshaft Type: Hydraulic roller
• Valve Lift: .492 in. intake / .480 in. exhaust
• Camshaft Duration (@.050 in.): 198-degree intake / 216-degree exhaust
• Cylinder Heads: L92 style port; 'as cast' with 68-cc chambers
• Valve Size: 2.160 in. intake / 1.590 in. exhaust
• Compression Ratio: 9.1:1
• Rocker Arms: Investment-cast, roller trunnion
• Rocker Arm Ratio: 1.7:1
• Recommended Fuel: 92 octane
• Maximum Recommended rpm: 6600
• Reluctor Wheel: 58X
• Balanced: Internal

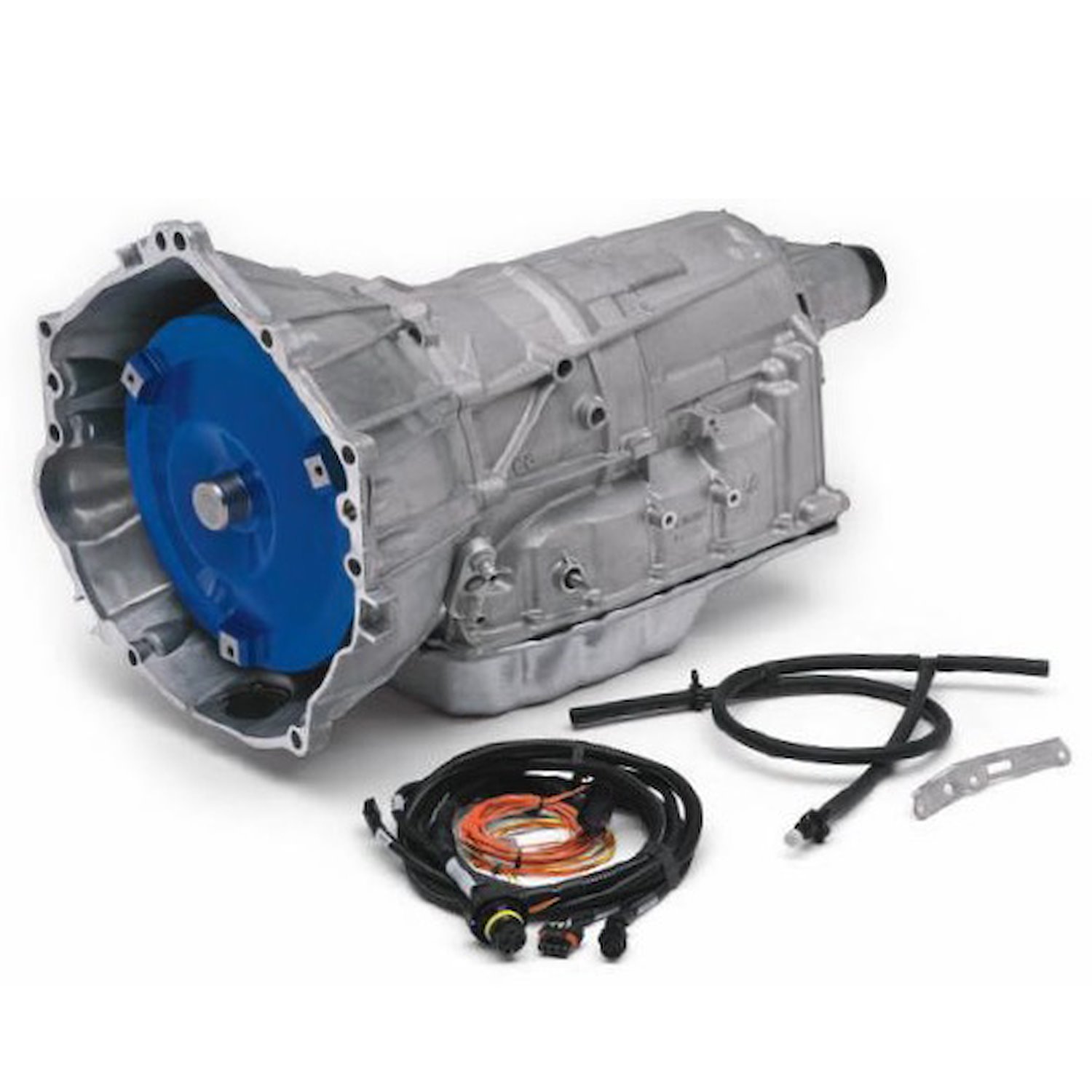

Supermatic 6L80-E Transmission

Chevrolet Performance 6L80-E SuperMatic Six-Speed Automatic Transmission is based on the production version six-speed transmission found in many modern rear-wheel-drive GM vehicles. This aftermarket version of the transmission is enhanced with upgraded internal components that allow for a much higher torque output of 650 ft.lbs. that is 45 percent higher than regular production models. Equipped with a 4.02:1 first gear for strong off-the-line acceleration and a 0.67:1 final gear for smooth highway cruising, the 6L80-E is perfect for any project vehicle running a Chevrolet LS engine in a RWD configuration.

6L80-E SuperMatic Features:

• Six-Speed Automatic
• 2400-2800 Stall Converter
• Truck-Style Production Oil Pan
• Production Vent Tube Assembly
• 32-Bit Transmission Controller with street & track calibrations
• Transmission Bulkhead Connector
• -6 AN line fittings

6L80-E SuperMatic Gear Ratios:

• 1st: 4.02:1
• 2nd: 2.36:1
• 3rd: 1.53:1
• 4th: 1.15:1
• 5th 0.85:1
• 6th 0.67:1

Engine Control Module and Harness

A precisely calibrated engine control module is essential to making your modern fuel-injected engine perform in your older vehicle.  Unlike production controllers that may or may not come with a used engine, these controllers are calibrated for installation in older vehicles. That means many of the features required for late-model production vehicles are "turned off," because they're not required in older cars and trucks. That means features that may trigger a diagnostic trouble code and possibly affect performance - requiring additional tuning - are not enabled. These controller kits deliver all the components required to plug into the engine and get it running - from the controller itself and the accompanying wire harness to the mass airflow sensor, oxygen sensors, and even a throttle pedal assembly. The kits also include detailed instructions to help you do it right the first time, even if you have no experience.

INSTALLATION NOTES:

• Assembly does not include accessory drive kit
• LSA is the same size and mounts the same as other LS-Series engines
• Intended for pre-1976 street vehicles or any off-road vehicle
• Transmission requires DEXRON VI fluid
• 6L80 does NOT include a transmission dipstick
• Chevrolet Performance recommends a 65 psi (450 kPa) fuel pump for the LSA.
• The specially calibrated engine controller does not engage a number of features associated with production-model systems, which eliminates the possibility of trouble codes. It also has an SES (service engine soon) LED indicator embedded in the fuse box.

Engine Break-In Procedure

Use only engine oil that meets dexos1 specifications. For track events or competitive driving, use Mobil 1 15W-50 engine oil. Fill the engine with oil and follow the proper engine priming procedure.  Also check and fill as required any other necessary fluids such as coolant, power steering fluid, etc.

Start the engine and listen for any unusual noises. If no unusual noises are noted, run the engine at approximately 1000 RPM until normal operating temperature is reached.  The engine should be driven at varying loads and conditions for the first 30 miles or one hour without wide open throttle (WOT) or sustained high RPM accelerations.  Run five or six medium throttle (50%) accelerations to about 4000 RPM and back to idle (0% throttle) in gear. Run two or three hard throttle (WOT 100%) accelerations to about 4000 RPM and back to idle (0% throttle) in gear.

Change the engine oil and filter. Inspect the oil and the oil filter for any foreign particles to ensure that the engine is functioning properly.  Drive the next 500 miles (12 to 15 engine hours) under normal conditions. Do not run the engine at its maximum rated engine speed. Also, do not expose the engine to extended periods of high load.  Change the oil and filter again, inspect the oil and oil filter for any foreign particles to ensure that the engine is functioning properly.

GM Warranty Form

• Chevrolet Performance Crate Engines includes a 24-month or 50,000 mile limited warranty
