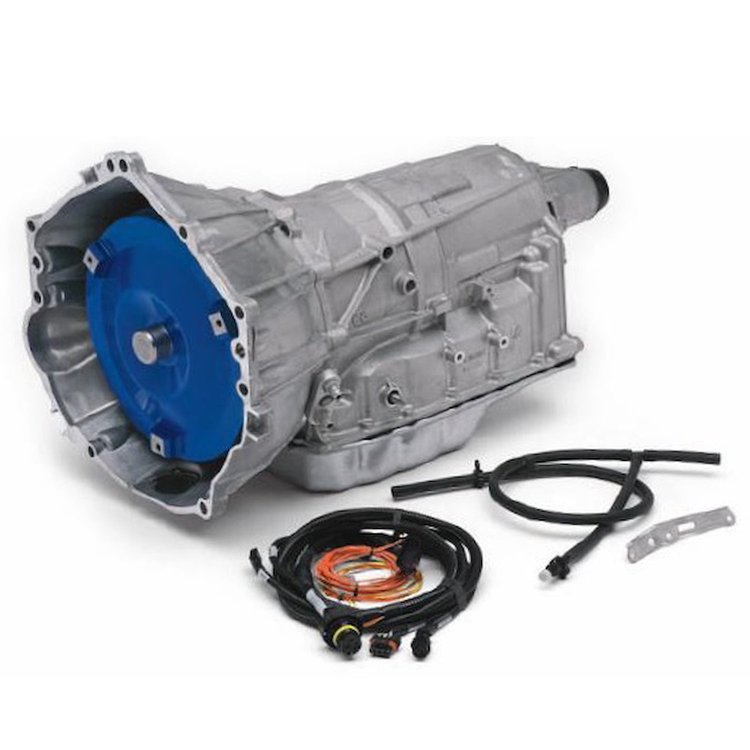

6L80-E SuperMatic Six-Speed Automatic Transmission
InfoVehicle Info Needed
CHEVROLET PERFORMANCEPART NUMBER: 809-19417102

6L80-E SuperMatic Six-Speed Automatic Transmission

$5,31182
Truck Freight
1 left in stock
ShippingShips Today
ShippingFree shippingLowest PriceLowest Price Guarantee

Items You Need

Penetrating Oil [11 oz. Aerosol Can]

LUCAS OIL

Penetrating Oil [11 oz. Aerosol Can]

Part Number : 639-11043
$878$9.49
You Save$0.71
822405 DEXRON VI/MERCON LV Transmission Fluid [1QT Bottle]

VALVOLINE

822405 DEXRON VI/MERCON LV Transmission Fluid [1QT Bottle]

Part Number : 949-822405
$1099
AT6 Synthetic Racing Automatic Transmission Fluid for High-Performance Applications [1 Qt. Bottle]

DRIVEN RACING OIL

AT6 Synthetic Racing Automatic Transmission Fluid for High-Performance Applications [1 Qt. Bottle]

Part Number : 499-04806
$1659
TD-36L80TM Hi-Tech Flexible Braided Stainless Transmission Dipstick GM 6L80E/6L90E

LOKAR

TD-36L80TM Hi-Tech Flexible Braided Stainless Transmission Dipstick GM 6L80E/6L90E

Part Number : 625-TD-36L80TM
$13895

6L80-E SuperMatic Six-Speed Automatic Transmission
  • For RWD Vehicles with a GM LS Engine
  • 440 ft.-lbs. Input TQ
  • 650 ft.-lbs. Output TQ
  • 3000-3400 Stall Converter
  • 23.500 in. Long
  • 32-Spline
  • 195 lbs. Dry
  • Aluminum Case

    6L80-E SuperMatic Additional Features:

    Electro/hydraulic controls with clutch-to-clutch shifting.

    Wiring harness includes connection provisions for paddle shifting.

    Bulkhead connector supports aftermarket gear indicator displays and electronically controlled shifters.

    -6 AN provisions for aftermarket transmission coolers.

    6L80-E SuperMatic Gear Ratios:

    • 1st: 4.02:1
    • 2nd: 2.36:1
    • 3rd: 1.53:1
    • 4th: 1.15:1
    • 5th 0.85:1
    • 6th 0.67:1

    6L80-E SuperMatic Includes:

    • Six-Speed Transmission
    • 3000K-3400K Stall Converter
    • Truck-Style Production Oil Pan
    • Production Vent Tube Assembly
    • 32-Bit Transmission Controller (street & track calibrations) - Internal
    • Transmission Bulkhead Connector
    • Wiring Harness

    6L80-E SuperMatic Does Not Include:

    • Transmission Dipstick
    • Dexron VI Transmission Fluid

      • 6L80-E Automatic Trans with 45% More Torque Than the Production Version

      Chevrolet Performance 6L80-E SuperMatic Six-Speed Automatic Transmission is based on the production version six-speed transmission found in many modern rear-wheel-drive Chevrolet cars and trucks. This aftermarket version of the transmission is enhanced with upgraded internal components that allow for a much higher torque output of 650 ft.lbs. Equipped with a 4.02:1 first gear for strong off-the-line acceleration and a 0.67:1 final gear for smooth highway cruising, the 6L80-E is perfect for any project vehicle running a Chevrolet LS engine in a RWD configuration.

    Part TypeAutomatic Transmission
    Product LineChevrolet Performance SuperMatic 6L80E 6-Speed Automatic Transmission
    BrandCHEVROLET PERFORMANCE
    Package Height20.0
    Package Width25.0
    Package Length42.0
    Weight271.0 PG
    Part CategoryPerformance Parts
    Transmission Mfr.GM
    Transmission Drive Type2WD
    QuantitySold individually
    Transmission Mfr. Code6L80E
    Part FitmentSemi Universal
    Vendor Part Number19417102
    Package Qty1
    Package TypeEA
