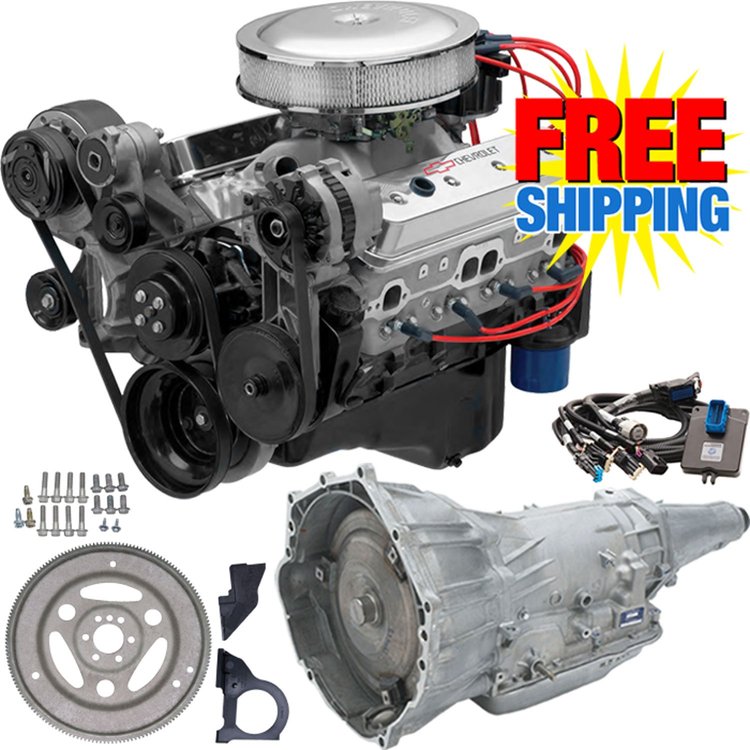

SP350/385 Turn-Key 350ci Connect & Cruise Powertrain System 4L65-E Trans

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

385 HP @ 5600 RPM
405 ft/lbs TQ @ 3600 RPM
Remanufactured Hydra-Matic 4L65-E Four Speed Transmission
2400-2800 RPM Stall Torque Converter

SP350/385 Turn-Key 350ci TECH SPECS:
- Engine Type: Small-Block V-8
- Displacement: 350ci (5.7L)
- Bore x Stroke: 4.000' x 3.480'
- Block: Cast-iron with four-bolt main caps
- Crankshaft: Forged steel
- Connecting Rods: Powdered metal
- Pistons: Hypereutectic aluminum
- Camshaft Type: Hydraulic roller
- Camshaft Lift: .474' intake / .510' exhaust
- Camshaft Duration (@.050 in.): 208° intake / 221° exhaust
- Cylinder Heads: Aluminum 'Fast Burn' w/ 62cc combustion chambers
- Valve Size: 2.00' intake / 1.55' exhaust
- Compression Ratio: 9.6:1
- Rocker Arms: Stamped steel
- Rocker Arm Ratio: 1.5:1
- Recommended Fuel: Premium pump
- Maximum Recommended rpm: 5800
- Balanced: External
- Intake Manifold: Dual plane
INSTALLATION NOTES:
- Comes with 12.750" externally balanced 153-tooth automatic transmission flexplate. Change to externally balanced flywheel for manual transmission applications.
- Requires fuel line from fuel pump to carburetor
- Fuel pump pressure is pre-set; fuel pressure regulator not required
- Designed for pre-1976 street vehicles or off-road vehicles
- Some assembly and minor engine tuning required
- Not intended for marine application
