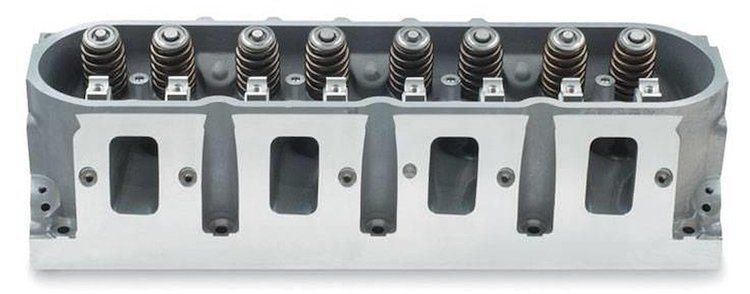

Vehicle Info NeededGM LSX-LS7 Aluminum Cylinder Head Assembly
Ships Tomorrow
Lowest Price GuaranteeFeatures:
- Fully CNC-ported
- 6-bolt-per-cylinder bolt pattern
- Capable of handling up to .650 in. lift with premium springs
- Uses GM LS7 rocker arms and bolts (sold separately)
- Flows 397 cfm @ 0.700 in. intake, 230 cfm @ 0.700 in. exhaust
19419197 supersedes 19354241
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Extending the performance range of the LSX platform are Chevrolet Performance's new, 6-bolt LSX cylinder heads. Many are capable of flowing more than 400 cfm and their 6-bolts-per-cylinder clamping design gives them bomb-proof strength. Your horsepower-building potential is nearly unlimited with LSX heads. These aluminum masterpieces of performance feature port and chamber designs based on popular and performance-proven production-style heads, such as the LS3/L92 and LS7 heads. They are easily identified by the engraved LSX logo on the ends.
Show More
Features include:
- All LSX heads are made of 356-T6 aluminum and feature a 5/8'' thick deck that allows plenty of room for builder-specified combinations.
- Extra material cast in the port areas to accommodate professional porting
- Uses 11mm (10) and 8mm (13) head bolts
- 6-bolt per cylinder bolt pattern
- LS7 style rectangle port design
- 12 degree valve angle
- Uses LS7 rocker arms/LS7 bolts
- Accommodates production valvetrain components (except for Drag Race and Circle Track heads)
- Includes premium beehive-type valve springs (except for Drag Race and Circle Track heads)
- Valve guides for 8mm valve stems (except for Drag Race and Circle Track heads)
