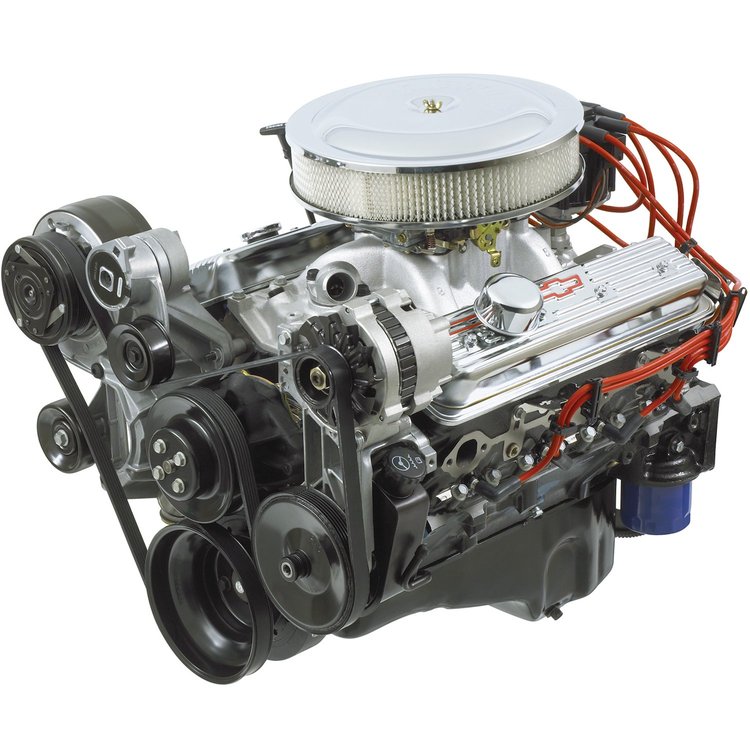

350 HO Turn-Key 350ci Engine 333 HP @ 5100 RPM

Name: 350 HO Turn-Key 350ci Engine 333 HP @ 5100 RPM
Brand: CHEVROLET PERFORMANCE
SKU: 809-19419992
Price: 5908.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

350 HO Turn-Key Engine

350 HO Turn-Key 350ci Engine

333 HP @ 5100 RPM

381 ft/lbs TQ @ 3700 RPM

INSTALLATION NOTES:

Comes with externally balanced flexplate for automatic transmission; requires externally balanced flywheel for manual transmission.
Has right-side oil dipstick
Requires fuel line from the fuel pump to carburetor
Fuel pump pressure is pre-set; fuel pressure regulator not required
Some assembly and minor engine tuning required
Designed for pre-1976 street vehicles or any off-road vehicle
Not intended for marine applications
Spark Plugs: R44TS
This block is drilled and tapped for clutch linkage.
Engine Break-In Procedure
Use conventional or break-in oil (non-synthetic) for the first oil change, be sure to check the oil level in the engine and prime the oil system with an engine priming tool.
Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM's, with no-load on the engine for the first 30 minutes. This is critical to breaking in the camshaft.
Drive the vehicle with varying speeds and loads on the engine for the first 30 miles. Be sure not to use a lot of throttle or high RPM. Run five or six medium-throttle accelerations to about 3000 RPM (40 to 50 MPH), then letting off in gear and coasting back down to 20 MPH. Run a couple of hard throttle accelerations up to about 5000 RPM (55 to 60 MPH), then letting off in gear and coasting back down to 20 MPH.
Let the engine cool and change the oil and filter using conventional (non-synthetic) oil and check the coolant level, top off if necessary. Drive the next 500 miles normally, without high RPM's (below 5000 RPM), hard use, or extended periods of high loading. Change the oil and oil filter again using conventional (non-synthetic) oil. Keep an eye on oil level during the first thousand or so miles.
It would be suitable to use synthetic motor oil after the second recommended oil change and mileage accumulation.

The Classic 350 Ready to Rock!

Free Shipping!

Forget rebuilding! This 350 HO is assembled with all-new parts and high-flow heads, giving you more power than just about any production-spec Small-Block ever installed at the factory: 333 horsepower and a satisfying 381 lb.-ft. of torque. It's affordable power with dependability you can count on. A cast-iron block with four-bolt main caps is the foundation for the 350 HO, which is topped with cast iron Vortec heads fitted with 1.94/1.50-inch valves. Its durable rotating assembly has aluminum pistons delivering a 9.0:1 compression ratio, while a hydraulic flat-tappet camshaft requires no periodic lash adjustments.

As one of our Turn-Key crate engines, the 350 HO Turn-Key comes with the intake manifold and distributor installed. It also includes the carburetor, front-accessory kit, starter, fuel pump and spark plug wires (not installed).

350 HO TURN-KEY TECH SPECS:

Engine Type: Chevy Small-Block V-8
Displacement: 350ci
Bore x Stroke: 4.000'' x 3.480''
Block: Cast-iron with four-bolt main caps
Crankshaft: Nodular iron
Connecting Rods: Powdered metal steel
Pistons: Cast-aluminum
Camshaft Type: Hydraulic flat tappet
Camshaft Lift: .435'' intake / .460'' exhaust
Cylinder Heads: Vortec Iron; 64cc combustion chambers
Valve Size: 1.94'' intake / 1.50'' exhaust
Compression Ratio: 9.0:1 nominal
Rocker Arms: Stamped steel
Rocker Arm Ratio: 1.5:1
Water Pump: Cast iron, long-style
Flexplate: 12.750''
Recommended Fuel: Premium pump
Ignition Timing: 34° Total @ 4000 rpm
Maximum Recommended rpm: 5100
Balanced: External
