350ci HO Turn-Key Engine Kit 333 HP @ 5100 RPM w/ Holley Fuel Filter, FelPro Gaskets

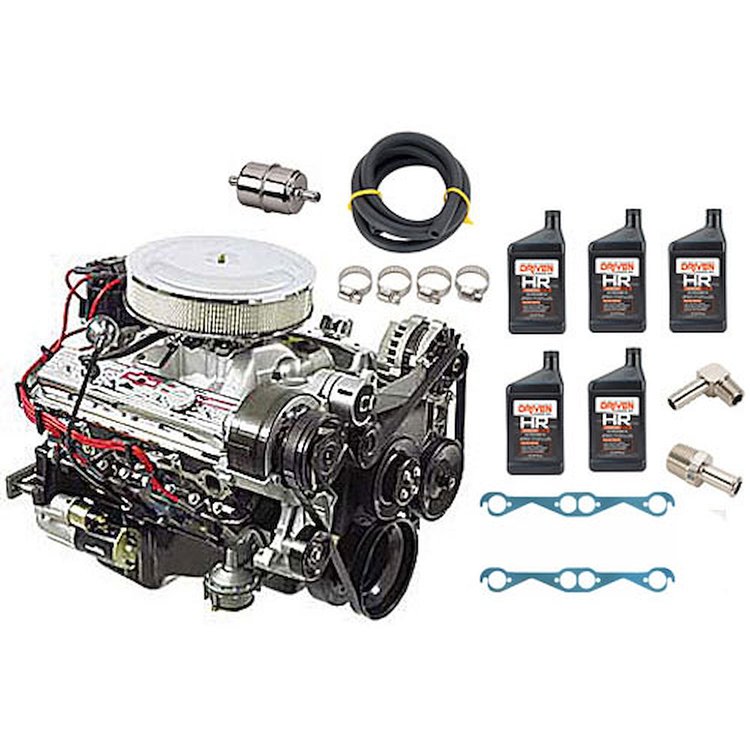

Name: 350ci HO Turn-Key Engine Kit 333 HP @ 5100 RPM w/ Holley Fuel Filter, FelPro Gaskets
Brand: CHEVROLET PERFORMANCE
SKU: 809-19419992K
Price: 6010.20 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

350 HO Turn-Key Engine

350ci HO Turn-Key Engine Kit

333 HP @ 5100 RPM

381 ft/lbs TQ @ 3700 RPM
Includes:

350 HO Turn-Key Engine

Conventional Oil

FelPro Exhaust Gaskets

Holley In-Line Fuel Filter, Hose, Clamps & Fittings

Kit Includes:

Chevrolet Performance Turn-Key 350ci/330HP Engine - 809-19210009
5 Quarts Of 10W30 Driven Conventional Hot Rod Oil - 499-02006
FelPro Round Port Exhaust Header Gaskets - 375-1426
Holley 3/8" In-Line Fuel Filter - 510-162-523
JEGS 3/8" Fuel Hose (5ft) - 555-15996
JEGS #8 Worm Hose Clamps - 555-15974
JEGS 3/8" NPT x 3/8" Hose Straight Fuel Fitting - 555-16021
JEGS 1/4" NPT x 3/8" Hose 90° Fuel Fitting - 555-16032

INSTALLATION NOTES:
Comes with externally balanced flexplate for automatic transmission; requires externally balanced flywheel for manual transmission.
Has right-side oil dipstick
Requires fuel line from the fuel pump to carburetor
Fuel pump pressure is pre-set; fuel pressure regulator not required
Some assembly and minor engine tuning required
Designed for pre-1976 street vehicles or any off-road vehicle
Not intended for marine applications
Spark Plugs: R44TS
This block is drilled and tapped for clutch linkage.

The Classic 350 Ready to Rock!

Free Shipping!

Forget rebuilding! This 350 HO is assembled with all-new parts and high-flow heads, giving you more power than just about any production-spec Small-Block ever installed at the factory: 333 horsepower and a satisfying 381 lb.-ft. of torque. It's affordable power with dependability you can count on. A cast-iron block with four-bolt main caps is the foundation for the 350 HO, which is topped with cast iron Vortec heads fitted with 1.94/1.50-inch valves. Its durable rotating assembly has aluminum pistons delivering a 9.0:1 compression ratio, while a hydraulic flat-tappet camshaft requires no periodic lash adjustments.

As one of our Turn-Key crate engines, the 350 HO Turn-Key comes with the intake manifold and distributor installed. It also includes the carburetor, front-accessory kit, starter, fuel pump and spark plug wires (not installed).

350 HO TURN-KEY TECH SPECS:

Engine Type: Chevy Small-Block V-8
Displacement: 350ci
Bore x Stroke: 4.000'' x 3.480''
Block: Cast-iron with four-bolt main caps
Crankshaft: Nodular iron
Connecting Rods: Powdered metal steel
Pistons: Cast-aluminum
Camshaft Type: Hydraulic flat tappet
Camshaft Lift: .435'' intake / .460'' exhaust
Cylinder Heads: Vortec Iron; 64cc combustion chambers
Valve Size: 1.94'' intake / 1.50'' exhaust
Compression Ratio: 9.0:1 nominal
Rocker Arms: Stamped steel
Rocker Arm Ratio: 1.5:1
Water Pump: Cast iron, long-style
Flexplate: 12.750''
Recommended Fuel: Premium pump
Ignition Timing: 34° Total @ 4000 rpm
Maximum Recommended rpm: 5100
Balanced: External

JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
