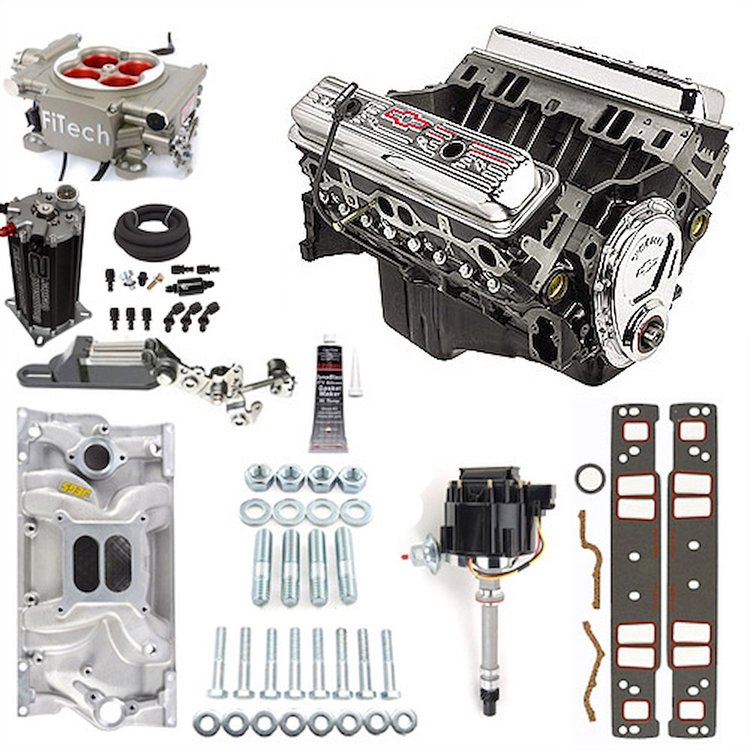

350 HO Base 350ci Engine Package with Fuel Command Center
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Includes:
Package Includes:
- Chevrolet Performance 350HO Base Engine (333HP) - 809-19210007
- FiTech GoStreet EFI Throttle Body Kit (400HP) - 546-30003
- Hyperfuel Go EFI Fuel Command Center 2 - 493-40004
- FiTech Throttle Return Spring Kit - 546-60011
- JEGS Champion Aluminum Intake Manifold - 555-513002
- JEGS Intake Manifold Gaskets - 555-210003
- JEGS Intake Manifold Bolts - 555-83201
- JEGS HEI Distributor - 555-40002
- JEGS Carburetor Stud Kit - 555-15840
- JEGS Black RTV Sealant - 555-28035
- 809-19417364K2 supersedes part number 809-19210007K2
The Chevrolet Performance 350ci HO Base Engine doesn't sacrifice power or durability with its four-bolt main block, nodular iron crankshaft, Powdered Metal steel connecting rods and cast aluminum pistons. Chevrolet engineers add to this strong foundation a pair of cast iron Vortec 64cc cylinder heads with 1.94'' intake and 1.50'' exhaust valves, yielding a healthy but streetable 9.0:1 compression ratio. The camshaft is a modern dual pattern interpretation of the 1965-67 Corvette 327 camshaft with more exhaust lift and duration for improved combustion chamber clearance and less intake lift/duration for more cylinder pressure!
Show More
350 HO Base TECH SPECS:
- Engine Type: Chevy Small-Block V-8
- Displacement: 350ci
- Bore x Stroke: 4.000'' x 3.480''
- Block: Cast-iron with four-bolt main caps
- Crankshaft: Nodular iron
- Connecting Rods: Powdered metal steel
- Pistons: Cast-aluminum
- Camshaft Type: Hydraulic flat tappet
- Camshaft Lift: .435'' intake / .460'' exhaust
- Cylinder Heads: Vortec Iron; 64cc combustion chambers
- Valve Size: 1.94'' intake / 1.50'' exhaust
- Compression Ratio: 9.0:1 nominal
- Rocker Arms: Stamped steel
- Rocker Arm Ratio: 1.5:1
- Flexplate: 12.750''
- Recommended Fuel: Premium pump
- Ignition Timing: 34° Total @ 4000 rpm
- Maximum Recommended rpm: 5100
- Balanced: External
JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
