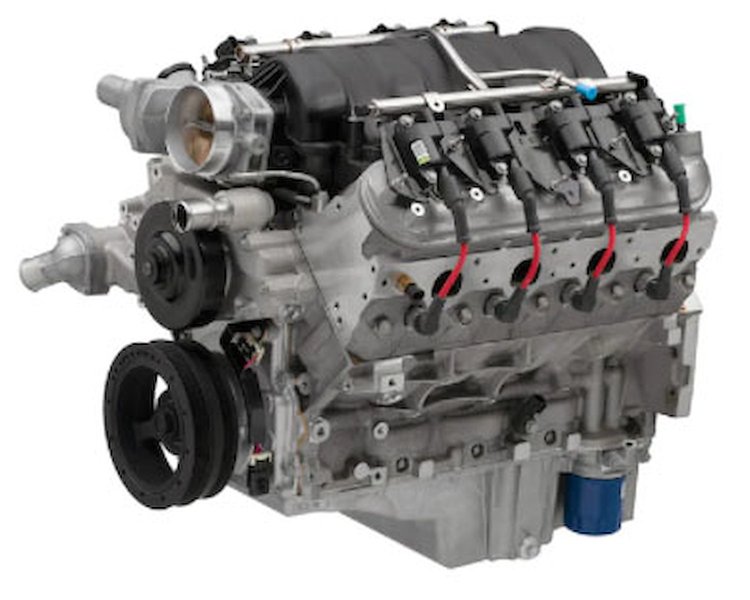

19421004 Specs:

• Displacement: 427ci (7.0L)
• Compression Ratio: 11.0:1
• Bore x Stroke: 4.125 x 4.000 in. (101.6 x 92 mm)
• Block: Cast aluminum with 6-bolt, cross-bolted main caps (P/N 12602689)
• Crankshaft: Forged steel (P/N 12611649)
• Connecting Rods: Forged titanium (P/N 12661677)
• Pistons: Hypereutectic aluminum
• Camshaft Type: Hydraulic roller (P/N 19419859)
• Valve Lift: .591 in. intake/.590 in. exhaust
• Camshaft Duration: 227-degree intake/242-degree exhaust @.050 in.
• Camshaft Lobe Separation Angle: 116 degree
• Cylinder Heads: CNC-ported LS7-style ports with 70cc combustion chambers
• Valve Size: 2.200 in. titanium intake, 1.610 sodium-filled exhaust
• Rocker Arms: Investment-cast, roller-bearing trunnion
• Rocker Arm Ratio: 1.8:1 (offset intake)
• Balanced: Internal 19421004

19421004 Notes:

• Premium pump fuel recommended
• 7,000 rpm max RPM recommended
• 15W50 Mobil 1 engine oil recommended

Engine Break-In Procedure

Use only engine oil that meets dexos1 specifications. For track events or competitive driving, use Mobil 1 15W-50 engine oil. Fill the engine with oil and follow the proper engine priming procedure. Also check and fill as required any other necessary fluids such as coolant, power steering fluid, etc.

Start the engine and listen for any unusual noises. If no unusual noises are noted, run the engine at approximately 1,000 RPM until normal operating temperature is reached. The engine should be driven at varying loads and conditions for the first 30 miles or one hour without wide open throttle (WOT) or sustained high RPM accelerations. Run five or six medium throttle (50%) accelerations to about 4,000 RPM and back to idle (0% throttle) in gear. Run two or three hard throttle (WOT 100%) accelerations to about 4,000 RPM and back to idle (0% throttle) in gear.

Change the engine oil and filter. Inspect the oil and the oil filter for any foreign particles to ensure that the engine is functioning properly. Drive the next 500 miles (12 to 15 engine hours) under normal conditions. Do not run the engine at its maximum rated engine speed. Also, do not expose the engine to extended periods of high load. Change the oil and filter again, and inspect the oil and oil filter for any foreign particles to ensure that the engine is functioning properly.
