350 HO Base 350ci Engine Kit with Carburetor

Name: 350 HO Base 350ci Engine Kit with Carburetor
Brand: CHEVROLET PERFORMANCE
SKU: 809-19431609K
Price: 4327.36 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

350ci/330HP HO

With Carburetor

350 HO Base 350ci Engine Kit

333 HP @ 5100 RPM

381 ft/lbs TQ @ 3700 RPM

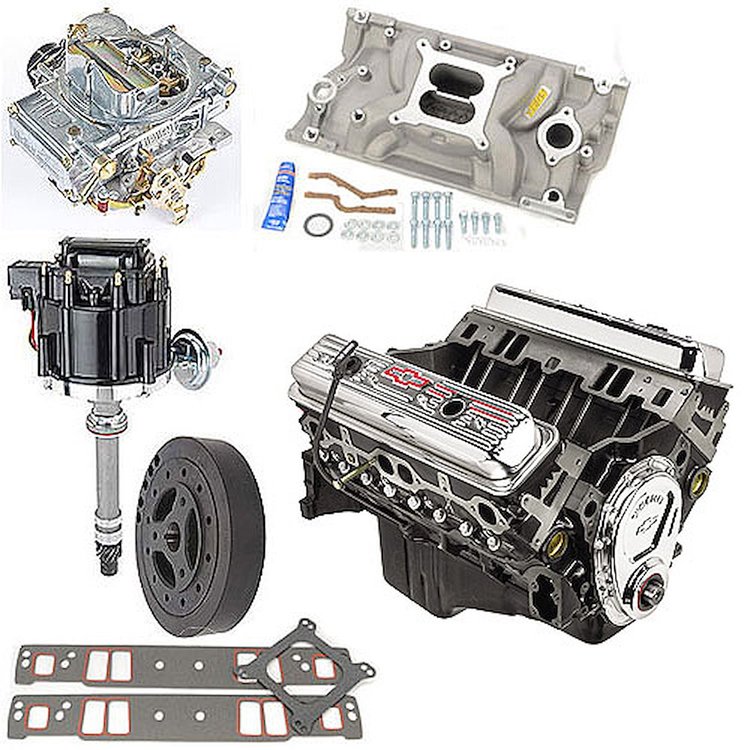

Includes:

Dual Plane Intake Manifold

600cfm Carburetor - Electric Choke

HEI Distributor w/Coil

Harmonic Balancer

Installation Fasteners & Gaskets

19431609K Easy Kit Includes:

JEGS Intake Manifold 555-513002
Holley 600cfm Carb 510-0-80457S
JEGS Intake Gasket 555-210003
JEGS Intake Bolts 555-83201
JEGS HEI Distributor and Coil 555-40002
JEGS Harmonic Balancer 555-51653
JEGS Blue RTV 555-28030
JEGS Carb Studs 555-15840
JEGS Carb Gasket 555-16100

INSTALLATION NOTES:

Requires externally balanced flexplate for automatic transmission; or externally balanced flywheel for manual transmission.
Has right-side oil dipstick
Designed for pre-1976 street vehicles or any off-road vehicle
Not intended for marine applications
Spark Plugs: R44TS
This block is drilled and tapped for clutch linkage

809-19431609K supersedes 809-19417364K & 809-19417364K supersedes 809-19210007K

The Chevrolet Performance 350ci HO Base Engine doesn't sacrifice power or durability with its four-bolt main block, nodular iron crankshaft, Powdered Metal steel connecting rods and cast aluminum pistons. Chevrolet engineers add to this strong foundation a pair of cast iron Vortec 64cc cylinder heads with 1.94'' intake and 1.50'' exhaust valves, yielding a healthy but streetable 9.0:1 compression ratio. The camshaft is a modern dual pattern interpretation of the 1965-67 Corvette 327 camshaft with more exhaust lift and duration for improved combustion chamber clearance and less intake lift/duration for more cylinder pressure!

350 HO Base TECH SPECS:

Engine Type: Chevy Small-Block V-8
Displacement: 350ci
Bore x Stroke: 4.000'' x 3.480''
Block: Cast-iron with four-bolt main caps
Crankshaft: Nodular iron
Connecting Rods: Powdered metal steel
Pistons: Cast-aluminum
Camshaft Type: Hydraulic flat tappet
Camshaft Lift: .435'' intake / .460'' exhaust
Cylinder Heads: Vortec Iron; 64cc combustion chambers
Valve Size: 1.94'' intake / 1.50'' exhaust
Compression Ratio: 9.0:1 nominal
Rocker Arms: Stamped steel
Rocker Arm Ratio: 1.5:1
Flexplate: 12.750''
Recommended Fuel: Premium pump
Ignition Timing: 34° Total @ 4000 rpm
Maximum Recommended rpm: 5100
Balanced: External

JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
