Vehicle Info Needed

CHEVROLET PERFORMANCEPART NUMBER: 809-19431953

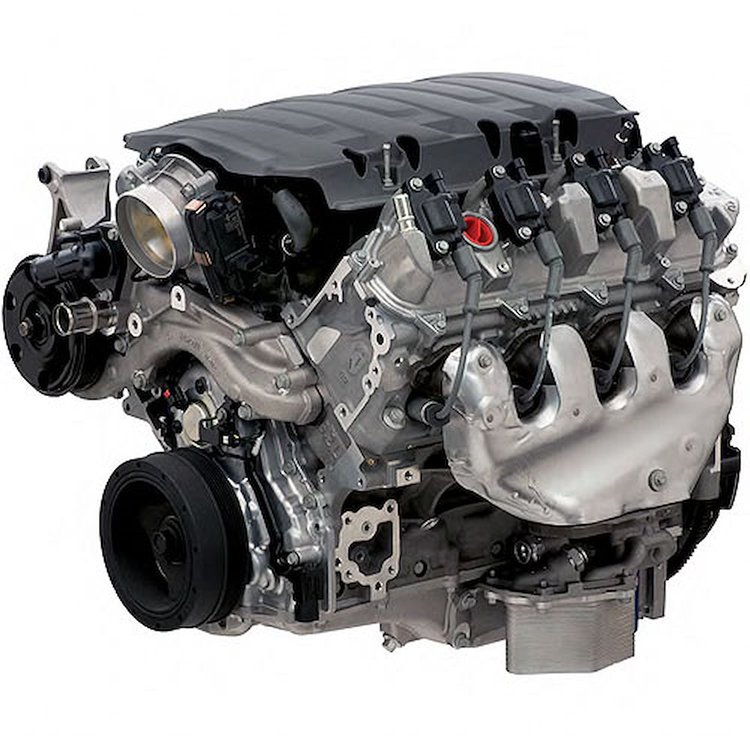

LT1 376ci / 6.2L Engine Kit

Name: LT1 376ci / 6.2L Engine Kit
Brand: CHEVROLET PERFORMANCE
SKU: 809-19431953
Price: 10907.56 USD
Availability: InStock

^$10,907⁵⁶

Truck Freight

2 left in stock

Ships Today

Lowest Price Guarantee

LT1 376/455 Engines
Wet Sump Oil System

LT1 376ci / 6.2L Engine Kit

455 HP @ 6,000 RPM

455 ft.-lbs. TQ @ 4,400 RPM

Cast Aluminum Block

Wet Sump Oil System

Installation Notes:

For use with 8L90-E transmission
Engines shipped with high-pressure direct-injection fuel pump installed
Assembly does not include electronics
Use LT1 Controller for engine operation. Kit includes an electronic throttle pedal, which is required for throttle input to the ECU.
Intended for pre-1976 street vehicles or any off-road vehicle
Not intended for marine applications
8-bolt crankshaft flange
Shipped with 14' flexplate

Engine Break-In Procedure

Use only engine oil that meets dexos1 specifications. For track events or competitive driving, use Mobil 1 15W-50 engine oil. Fill the engine with oil and follow the proper engine priming procedure. Also check and fill as required any other necessary fluids such as coolant, power steering fluid, etc.

Start the engine and listen for any unusual noises. If no unusual noises are noted, run the engine at approximately 1,000 RPM until normal operating temperature is reached. The engine should be driven at varying loads and conditions for the first 30 miles or one hour without wide open throttle (WOT) or sustained high RPM accelerations. Run five or six medium throttle (50%) accelerations to about 4,000 RPM and back to idle (0% throttle) in gear. Run two or three hard throttle (WOT 100%) accelerations to about 4,000 RPM and back to idle (0% throttle) in gear.

Change the engine oil and filter. Inspect the oil and the oil filter for any foreign particles to ensure that the engine is functioning properly. Drive the next 500 miles (12 to 15 engine hours) under normal conditions. Do not run the engine at its maximum rated engine speed. Also, do not expose the engine to extended periods of high load. Change the oil and filter again, and inspect the oil and oil filter for any foreign particles to ensure that the engine is functioning properly.

19431953 supersedes 19418843

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

The Next Generation is Here!

Free Shipping!

Chevrolet Performance is proud to announce all-new LT1 crate engine packages designed to give your project vehicle a high-tech heart transplant - and take it to a higher level of performance and efficiency! Introduced in the 2014 Corvette Stingray, the 6.2L LT1 V-8 opened the next chapter in the long, historic legacy of the Small-Block engine. It is architecturally similar to the LS family of Small-Block engines, but with a unique block casting, cylinder head design, oiling system and more.

It also combines advanced technologies including direct injection, Active Fuel Management (cylinder deactivation) and continuously variable valve timing to support an advanced combustion system. In fact, more than 10 million hours of computational analysis were conducted on the engine program, including 6 million hours (CPU time) dedicated to the advanced combustion system. The result is more power with greater efficiency than any previous Small-Block engine! Chevrolet Performance's new LT1 crate engine - offered with a wet-sump or dry-sump oiling system - is rated at either 455 or 460 horsepower and 455 lb-ft 465 lb-ft of torque respectively. A controller specially designed for retrofit applications is available. Using the specified controller retains the operation of all the advanced technology features.

There are also all-new transmission installation kits specially designed to match the new LT1 and its 8-bolt crankshaft flange with Chevrolet Performance's 4L60-series four-speed automatic transmissions and the T-56 Super Magnum six-speed manual.

LT1 376ci / 6.2L TECH SPECS:

Engine Type: Direct injection spark ignition Gen V Small-Block V8
Displacement: 376ci (6.2L)
Bore x Stroke: 4.065'' x 3.622'' (103.25 x 92mm)
Block: Cast aluminum with 6-bolt nodular iron main bearing caps
Crankshaft: Forged steel with 8-bolt flange
Connecting Rods: Forged powdered metal
Pistons: Hypereutectic aluminum
Compression Ratio: 11.5:1
Camshaft Type: Billet steel roller
Valve Lift: .561'' intake/ .531'' exhaust
Camshaft Duration (@.050 in.): 242° intake / 244° exhaust
Cylinder Heads: Aluminum, Rectangular Port Direct Injection
Valve Size: 2.165'' intake / 1.590'' exhaust
Rocker Arms: Investment-cast, roller trunnion
Rocker Arm Ratio: 1.81:1
Recommended Fuel: Premium pump
Maximum Recommended RPM: 6600
Reluctor Wheel: 58X
Balanced: Internal
