Chevrolet Performance engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower from them with total confidence! The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation and operation without the need for third-party tuning.
The convenience of a crate engine, the assurance of factory validate performance and the value of an inclusive package - that's what you get with Chevrolet Performance's Connect & Cruise crate powertrain systems.

Each kit delivers a fully assembled crate engine, transmission, electronic control module, and the engine control hardware to get it all running in your project vehicle - including the mass airflow sensor, oxygen sensors and even the special throttle pedal for the engines' electronic throttle bodies.

Chevrolet Performance engineers matched the engines with their respective transmissions, ensuring they are up to the task of channeling big power with absolute dependability. The engine controller is specially calibrated to run the engine without some of the production-vehicle features that aren't required in an older vehicle. That means no "trouble" codes and no need for third-party tuning, "plug-and-play" installation that is quick, easy and intuitive. Detailed instructions outline all the necessary steps.

The engineers did all the hard work of designing and calibrating perfectly matched powertrain systems - and they covered them with a 24-month/50,000-mile limited warranty.

LT1 376ci / 6.2L, 460HP / 465TQ Engine
Chevrolet Performance is proud to offer the all-new LT1 crate engine. Introduced on the seventh-generation Corvette Stingray, the LT1 6.2L opened the next chapter in the long, historic legacy of the small-block engine - and it gives your project vehicle a high-tech transplant with an outstanding balance of performance and efficiency.

The LT1 is architecturally similar to the LS family of small-block engines, but with a unique block casting, cylinder head design, oiling system, and more. It also combines advanced technologies including Direct Injection and continuously Variable Valve Timing to support an advanced combustion system.

Chevrolet Performance's LT1 crate engine is rated at 460 horsepower and 465 lb-ft of torque, and it is offered with a wet-sump (P/N 809-19328728) or dry-sump (P/N 809-19329997) oiling system. Engines with the dry sump oiling system, you'll need to supply the external oil supply and oil lines to the engine, but the rest of the assembly is fully dressed, including the manifold assembly with injectors and electronically controlled throttle body, and exhaust manifolds.

Specifications:

• Horsepower: 460 @ 6000 RPM
• Torque: 465 ft/lbs @ 4600 RPM
• Block: Cast Aluminum
• Crankshaft: Forged Steel
• Connecting Rods: Forged Powdered Metal
• Pistons: Hypereutectic Aluminum
• Camshaft: Hydraulic Roller
• Cylinder Heads: Aluminum, Rectangular Port Direct Injection
• Reluctor Wheel: 58X
• Balanced: Internal
• Compression Ratio: 11.5:1
• Rocker Arms: 1.81:1
• Recommended Fuel: Premium Recommended

Engine Control Modules and Harnesses
A precisely calibrated engine control module is essential to making your fuel-injected LT engine perform in your older vehicle - and Chevrolet Performance is your source for controllers that are designed for easy, "plug-and-play" installation and, in most applications, no need for third-party tuning adjustments.
Unlike production controllers that may or may not come with a used engine, these controllers are calibrated for installation in older vehicles. That means many of the features required for late-model production vehicles are "turned off," because they're not required in older cars and trucks. That means features that may trigger a diagnostic trouble code and possibly affect performance - requiring additional tuning - are not enabled.
These inclusive kits deliver all the components required to plug into the engine and get it running - from the controller itself and the accompanying wire harness to the mass airflow sensor, oxygen sensors and even a throttle pedal assembly for engines equipped with an electronic throttle body. The kits also include detailed instructions to help you do it right the first time, even if you have no experience.

Most Engine Control Modules Kits Include:

• Oxygen sensors & mounting bosses (for installation in the exhaust system)
• Mass airflow meter & mounting boss (for installation in the air intake system)
• Throttle pedal assembly (for use with the electronically operated throttle)
• Specific oil pressure sensor that is compatible with the harness (when needed)
• Complete wiring harness with fuse box and necessary cam sensor and MAP sensor jumpers
• Programmed controller
• Instruction sheet

Each Chevrolet Performance controller kit is a true stand-alone system. All that's needed to get a vehicle running with it are power and ground sources, a high-pressure fuel pump and an electric cooling fan.

SuperMatic 4L70-E Four-Speed Automatic Transmission
Capable of handling an impressive 495 ft/lbs of torque, the 4L70-E Four-Speed Transmission for your two-wheel drive (p/n 809-19299055) project car is a compact, all-aluminum transmission that accommodates your street performance needs.
Based on the renowned Hydra-Matic 4L60-E and 4L65-E Four-Speed Overdrive Transmissions, the 4L70-E delivers greater torque-carrying capacity and increased durability. It features five-pinion gearsets, heat-treated stator shaft splines, an induction-hardened turbine shaft, seven-plate clutch, and specific valve-body calibration. GM-engineered, -tested, and -validated to deliver smooth shifts, it more than meets the demands of your high-performance engine.

Features:

• Based on the 4L60-E/4L65-E
• Increased horsepower and torque capacity
• Features five-pinion gearsets, heat-treated stator shaft splines, induction-hardened turbine shaft, seven-plate clutch and specific valve-body calibration
• Gear ratios: 1st: 3.06, 2nd: 1.62, 3rd: 1.00, 4th: 0.70
• Handles up to 495 lbs/ft. torque

LT1 / SuperMatic 4L70-E Installation Kit
Get your new 4L70-E bolted to your new engine with this SuperMatic 4L70-E installation kit. Kit includes all the correct components that Chevrolet Performance offers to easily mate your new engine and trans.

Installation Kit Includes:

• LT1 Bellhousing
• SuperMatic Torque Converter; Stall: 2400-2800 RPM; Single Bolt Pattern: 11.062''
• SuperMatic Connect-N-Cruise Pre-Programmed Controller
• Flexplate
• Flexplate Covers
• Fasteners
• Instruction Sheet

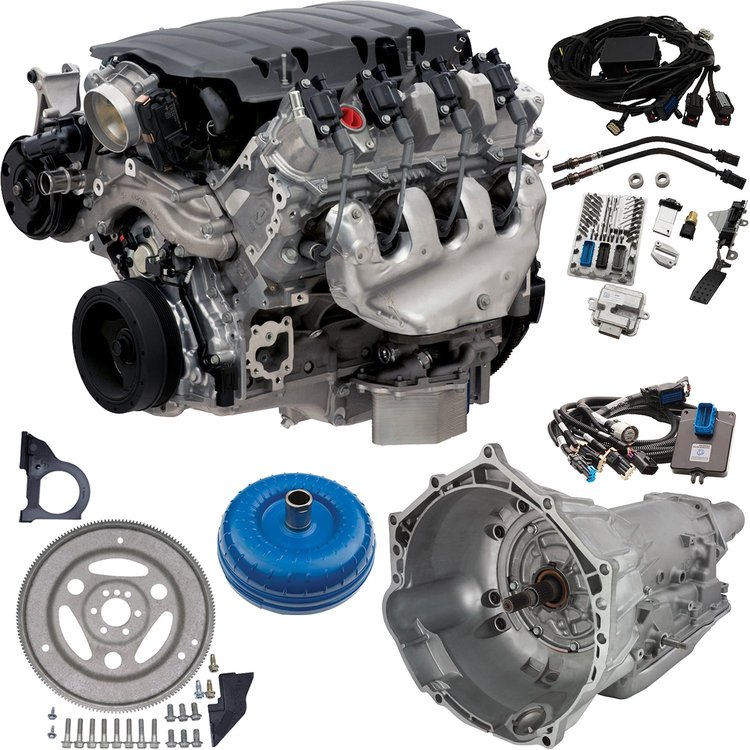

Each Crate Powertrain System Includes:

• Fully assembled crate engine
• Transmission & Install Kit
• Calibrated engine control module
• Oxygen sensors and mounting bosses (for installation in the exhaust system)
• Mass airflow meter and mounting boss (for installation in the air intake system)
• Throttle pedal assembly (for use with the electronically operated throttle body)
• Assembled wiring harness with fuse box and necessary cam sensor, oil pressure sensor, MAP sensor jumpers
• Instructions

GM Warranty
