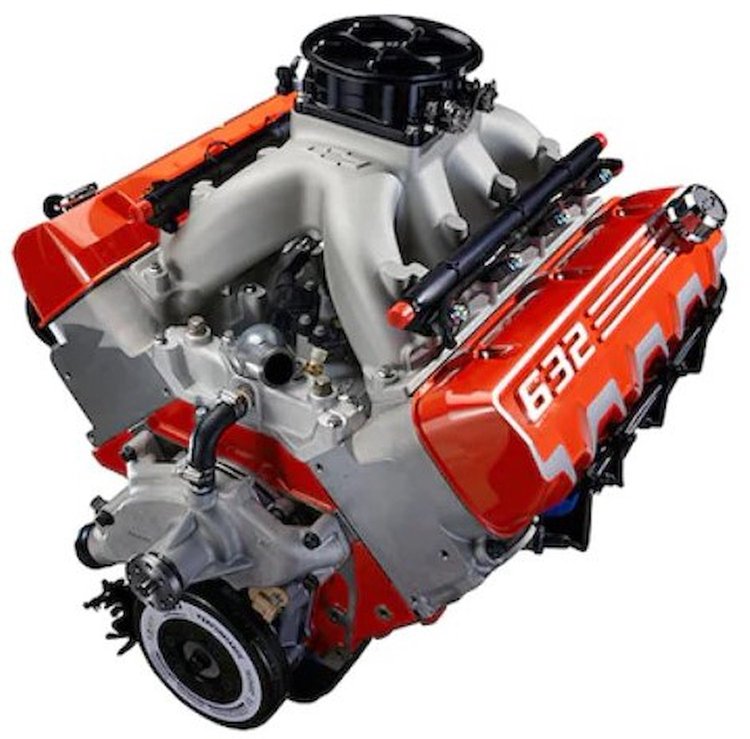

Chevrolet Performance 19432060 ZZ632/1000 Deluxe Crate Engine Features and Included Items:

• Power Ratings:
  • 1004 Horsepower (HP)
  • 876 ft.-lbs. Torque (TQ)
  • 12.0:1 Compression Ratio
  • Dynoed on 93-Octane Pump Gas
• Engine Block:
  • New CNC-Machined Cast Iron
  • 4.600 in. Bore
  • 4-Bolt Mains
  • Tall Deck (10.200 in.)
  • One-Piece Rear Main Seal
  • Provision for Mechanical Fuel Pump
  • Right (Passenger) Side Dipstick
  • Drilled and Tapped for Mechanical Clutch Linkage
  • Steel 8-Quart Oil Pan
  • Powder-Coated in Iconic Chevy Orange
• Rotating Assembly:
  • Forged 4340 Steel Crankshaft w/4.750 in. Stroke
  • Forged Steel H-Beam Connecting Rods
  • Forged Aluminum 2618 Alloy Pistons
  • Internal Balancing
  • Internally Balanced Harmonic Damper
  • (14) in. Internally Balanced Flexplate (Will Require Internally Balanced Flywheel for Manual Transmission Applications)
•  Aluminum Cylinder Heads:
  • RS-X Design Raised Spread-Port
  • 449cc Intake Runners
  • 70cc Combustion Chambers
  • 2.450 in. Intake / 1.800 in. Exhaust Titanium Valves
  • 481 cfm of Airflow at 781 in. Valve Lift
  • Aluminum Valve Covers w/632 Logo in Iconic Chevy Orange
• Camshaft and Valvetrain:
  • Billet Steel Hydraulic Roller
  • 0.780 in. Intake / 0.782 in. Exhaust Valve Lift
  • .471 in. Exhaust Valve Lift
  • 270° Intake / 287° Exhaust Duration @ .050 in.
  • Forged Aluminum 1.8:1 Shaft-Mounted Roller Rocker Arms
• Ignition and Fuel:
  • Pre-Programmed and Self-Learning Engine Control Unit (ECU) System for Precise Fuel and Spark Management
  • Wiring Harness from ECU to Engine Components
  • 4500 Style Throttle Body (TB)
  • (8) 86 lbs./hr. Fuel Injectors
  • Billet Aluminum Fuel Rails
  • Crank Trigger w/58X Reluctor Wheel

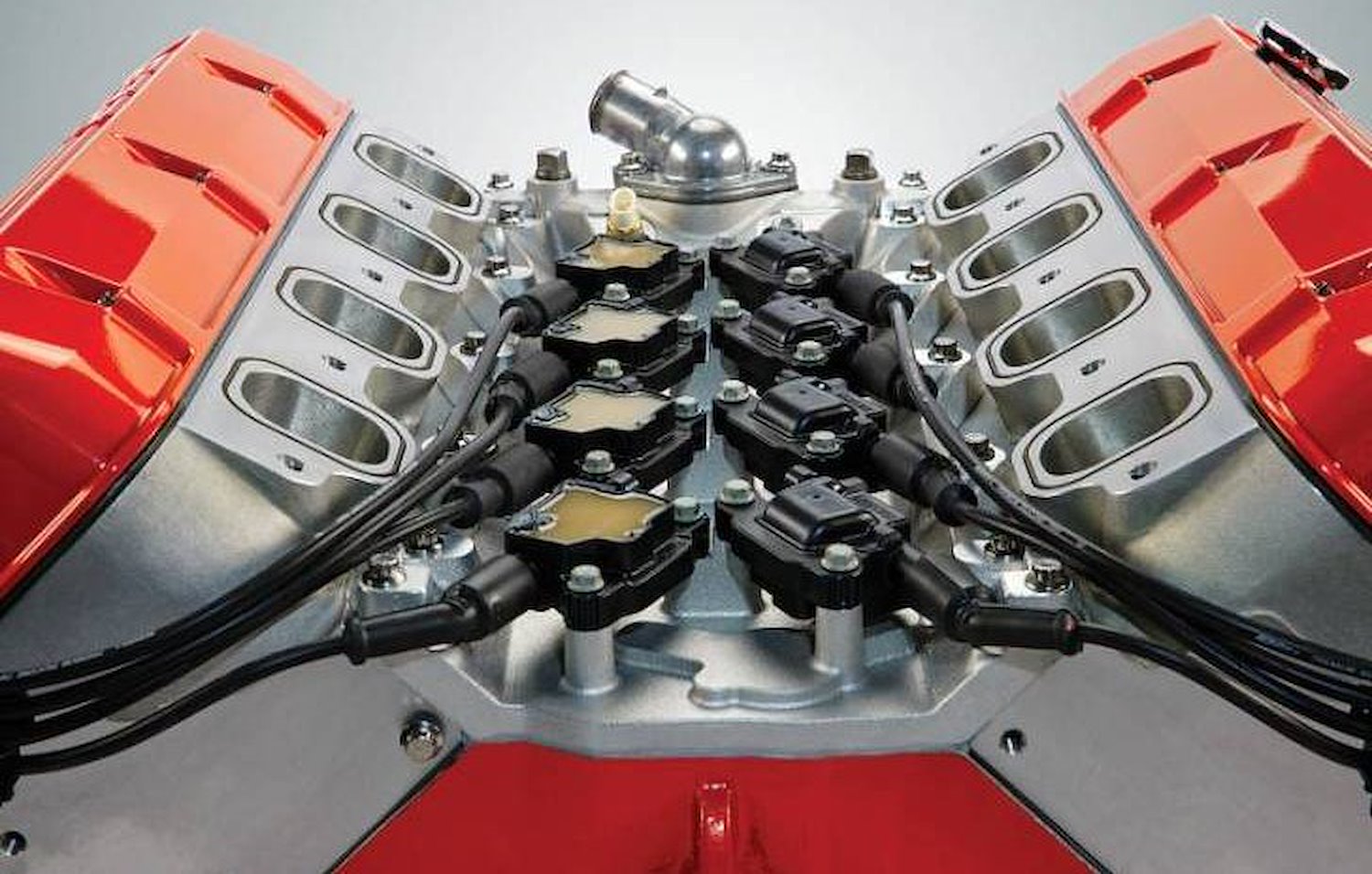

  • (8) Coils Mounted on Valley Cover
  • Aluminum Single-Plane Hi-Rise Intake Manifold
• Additional Included Items:
• Aluminum Water Pump w/Bypass Hose
• Valve Cover Breather and Oil Fill Cap
• Oil Dipstick and Tube
• Spark Plug Wires
• Aluminum Thermostat Housing

Note: Custom Header/Exhaust System Required Due to RS-X Cylinder Head Port Design

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
