INSTALLATION NOTES:

• Clutch linkage bosses are now drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads for clearance

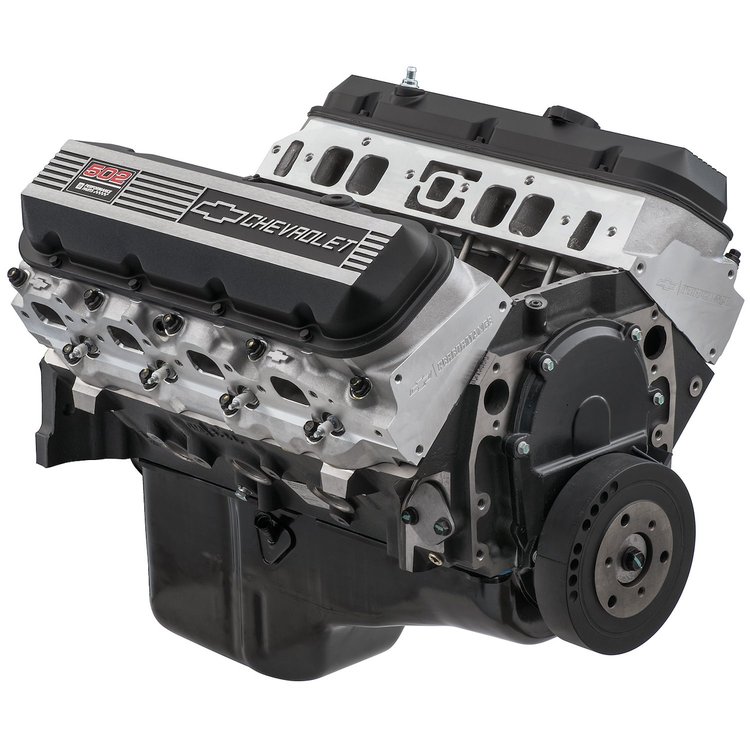

• The 502 engines now have a mechanical fuel pump boss!
• Comes with an externally balanced 14' automatic transmission flexplate. Use flywheel P/N 809-14096987 and 11" clutch assembly for manual transmission applications
• Designed for pre-1976 street vehicles or any off-road vehicle
• Not intended for marine applications

For long blocks and partial engines with steel camshafts, a distributor with a melanized steel gear must be used or engine damage will occur. Distributor #809-93440806 is recommended.

Engine Break-In Procedure

Use conventional or break-in oil (non-synthetic) for the first oil change, be sure to check the oil level in the engine and prime the oil system with an engine priming tool.

Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM, with no load on the engine for the first 30 minutes. This is critical to breaking in the camshaft.

Drive the vehicle with varying speeds and loads on the engine for the first 30 miles. Be sure not to use a lot of throttle or high RPM.  Run five or six medium-throttle accelerations to about 3000 RPM (40 to 50 MPH), then let off in gear and coast back down to 20 MPH. Run a couple of hard throttle accelerations up to about 5000 RPM (55 to 60 MPH), then let off in gear and coast back down to 20 MPH.

Let the engine cool and change the oil and filter using conventional (non-synthetic) oil and check the coolant level, top off if necessary. Drive the next 500 miles normally, without high RPMs (below 5000 RPM), hard use, or extended periods of high loading.  Change the oil and oil filter again using conventional (non-synthetic) oil.  Keep an eye on oil levels during the first thousand or so miles.

It would be suitable to use synthetic motor oil after the second recommended oil change and mileage accumulation.

19433160 supersedes 19419002, 19331576

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
