INSTALLATION NOTES:

• Requires addition of carburetor, starter, fuel pump, distributor and ignition system (not included)
• Clutch linkage bosses are now drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads, for clearance
• Comes with an externally balanced 14' automatic transmission flexplate; use flywheel P/N 809-14096987 and 11' clutch assembly for manual transmission applications
• Designed for pre-1976 street vehicles or any off-road vehicle
• Not intended for marine applications
• Motor equipped with truck style oil pan and pickup. Vehicle specific oil pan and pickup required for installation

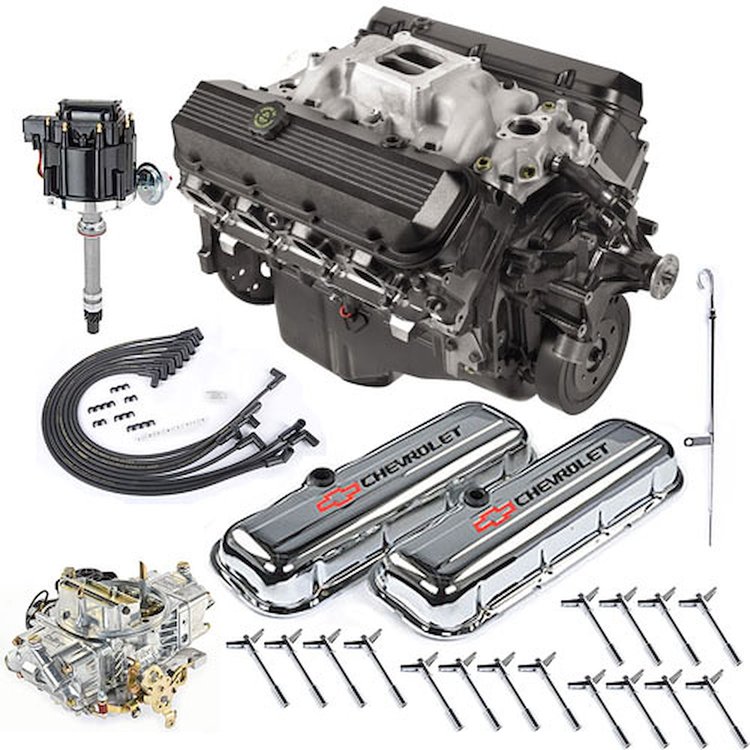

Kit Includes:

• Chevrolet Performance 454 HO Engine - 809-19433409
• Holley 770 cfm Street Avenger Carb - 510-0-80770
• Chevrolet Performance HEI Distributor - 809-93440806
• JEGS 8.5mm Black Ultra Pow'r Wires - 555-402027
• Proform Chrome Valve Covers - 778-141-812
• Proform Chrome Bowtie Wing Nut Valve Cover Fasteners - 778-141-600 (Qty 4 of 4/pkg)
• JEGS Chrome Dipstick - 555-52275

19433409K supersedes 12568774K

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
