19434240 Mark IV/Gen VI Bare 502 ci. Engine Block
InfoVehicle Info Needed
CHEVROLET PERFORMANCEPART NUMBER: 809-19434240

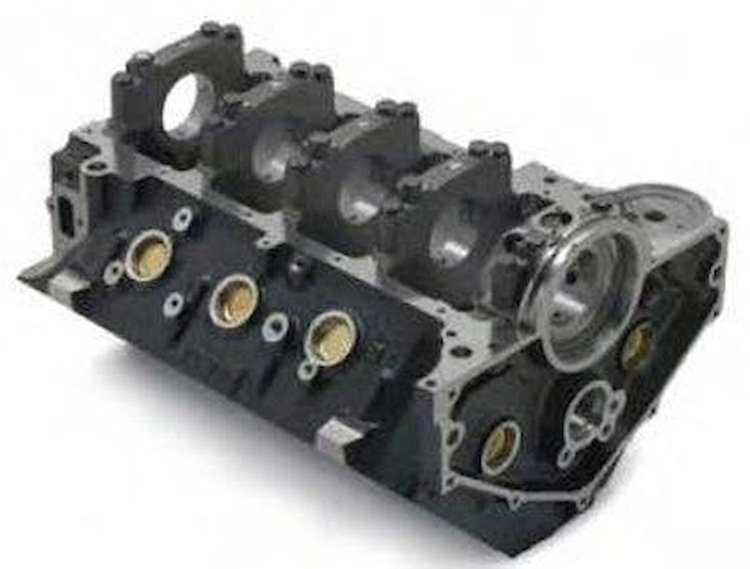

19434240 Mark IV/Gen VI Bare 502 ci. Engine Block

$3,98679
Truck Freight
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Performance Small Block Bare Block
Mark IV/Gen VI Bare Engine Block
  • Block Material: Cast-Iron
  • Bore: 4.470 in.
  • Deck Height: 9.800 in.
  • Siamese Cylinders
  • 4-Bolt Main Caps
  • Compatible w/Mark IV or Gen VI Heads
  • Uses Roller or Flat Tappet Camshaft
  • 1-Piece Rear Main

    Chevrolet Performance 19434240:

    • New Design Casting Taking the Best of Both MarkIV and GenVI Designs
    • Production Type Cast-Iron 4-Bolt
    • Block Improved Main Bearing Bulkheads with Bowtie Block-Style Bulkhead
    • Clearanced for Larger Strokes
    • 4.470 Inch Finished Bore
    • 4.500 Inch Max Bore (Siamese)
    • Fuel Pump Pad Added/Machined
    • Water Jackets for Either MarkIV or GenVI Heads
    • Revised Oiling to Allow Bigger Cam Bearings and Lift
    • Bolt Boss is Machined, Adding Near Distributor Hole Like 8.1L
    • Can be Drilled for Use with 10-Bolt Front Cover
    • Auxiliary Oil Pressure Line Added to Front of Block
    • Racing Style Oil Filter Cast Feature with Added Oil Pressure Port
    • Two Bosses Added for Manual Transmission Clutch Pivot
    • Additional Materiel Added Around Lifter Bosse

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeEngine Block
    BrandCHEVROLET PERFORMANCE
    Package Height28.0
    Package Width31.0
    Package Length35.5
    Weight157.0 PG
    Part CategoryPerformance Parts
    Engine Block StyleStock/OEM standard Deck
    Engine Block MaterialCast iron
    Engine Block Weight (Lbs.)269
    QuantitySold individually
    Raised Cam LocationNo
    Freeze Plugs IncludedYes
    Main Bolt Style4-bolt
    Main Bearings IncludedNo
    Rear Main Seal Style1-piece
    Main Caps IncludedYes
    Finished Cylinder BoresYes
    Cylinder Bore Diameter4.470 in.
    Cam Bearings IncludedYes
    Part FitmentSemi Universal
    Main Cap Fasteners IncludedYes
    Vendor Part Number19434240
    Package Qty1
    Package TypeEA
