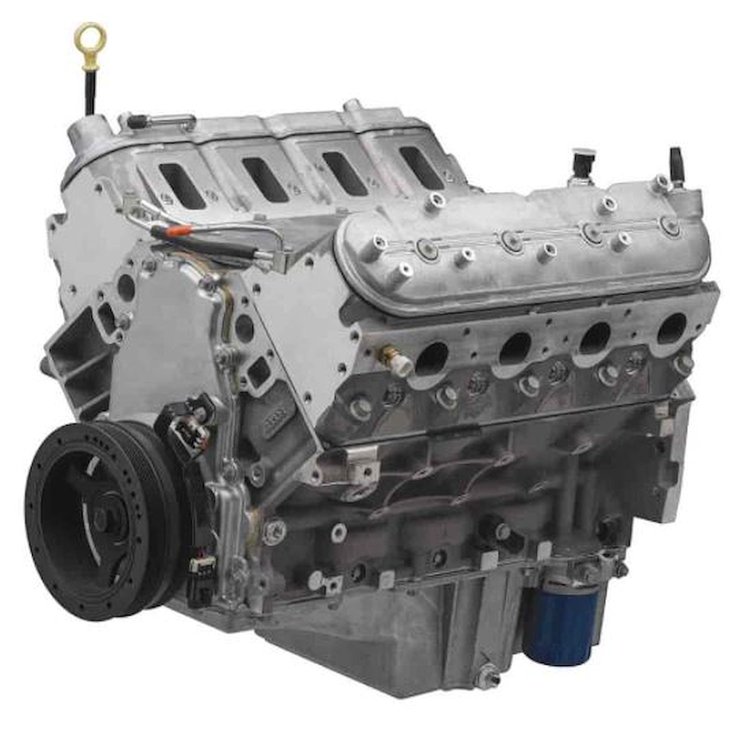

LS376/525 6.2L Performance Crate Engine

Starting with the potent LS3 foundation, GM added the more aggressive ASA camshaft to provide added high-RPM performance in the LS376/525 crate engine.

LS3 6.2L Engine Specs:

• Engine Type: LS-Series Gen IV Small-Block V-8
• Displacement: 376 ci (6.2L)
• Bore x Stroke: 4.065 x 3.622 in. (103.250 x 92 mm)
• Block: Cast aluminum with six-bolt, cross-bolted main caps
• Crankshaft: Nodular iron
• Connecting Rods: Powdered metal
• Pistons: Hypereutectic aluminum
• Camshaft Type: Hydraulic roller
• Valve Lift: .525 in. intake / .525 in. exhaust
• Camshaft Duration (@.050 in.): 226-degree intake / 236-degree exhaust
• Camshaft LSA: 110
• Cylinder Heads: L92 style port; 'as cast' with 68-cc chambers
• Valve Size: 2.165 in. intake / 1.590 in. exhaust
• Compression Ratio: 10.71
• Rocker Arms: Investment-cast, roller trunnion
• Rocker Arm Ratio: 1.7:1
• Recommended Fuel: 92 octane
• Maximum Recommended rpm: 6600
• Reluctor Wheel: 58X
• Balanced: Internal

Installation Notes:

• Will require intake manifold, throttle body, fuel rails, fuel injectors, exhaust manifolds, accessory drive, and an EFI controller
• LS3 is the same size and mounts the same as other LS-Series engines
• Includes a mid-wet sump oil pan installed. This oil pan will ONLY fit 2010-2015 Camaro SS/ZL1, 2012-2017 Caprice PPV, 2014-2017 Chevy SS, 2008-2009 Pontiac G8 chassis. THIS INSTALLED OIL PAN WILL NOT WORK WITH MUSCLE CAR LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS.

Engine Break-In Procedure

Use only engine oil that meets dexos1 specifications. For track events or competitive driving, use Mobil 1 15W-50 engine oil. Fill the engine with oil and follow the proper engine priming procedure.  Also check and fill as required any other necessary fluids such as coolant, power steering fluid, etc.

Start the engine and listen for any unusual noises. If no unusual noises are noted, run the engine at approximately 1000 RPM until normal operating temperature is reached.  The engine should be driven at varying loads and conditions for the first 30 miles or one hour without wide open throttle (WOT) or sustained high RPM accelerations.  Run five or six medium throttle (50%) accelerations to about 4000 RPM and back to idle (0% throttle) in gear. Run two or three hard throttle (WOT 100%) accelerations to about 4000 RPM and back to idle (0% throttle) in gear.

Change the engine oil and filter. Inspect the oil and the oil filter for any foreign particles to ensure that the engine is functioning properly.  Drive the next 500 miles (12 to 15 engine hours) under normal conditions. Do not run the engine at its maximum rated engine speed. Also, do not expose the engine to extended periods of high load.  Change the oil and filter again, inspect the oil and oil filter for any foreign particles to ensure that the engine is functioning properly.

19435110 supersedes 19434648; 19432557

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
