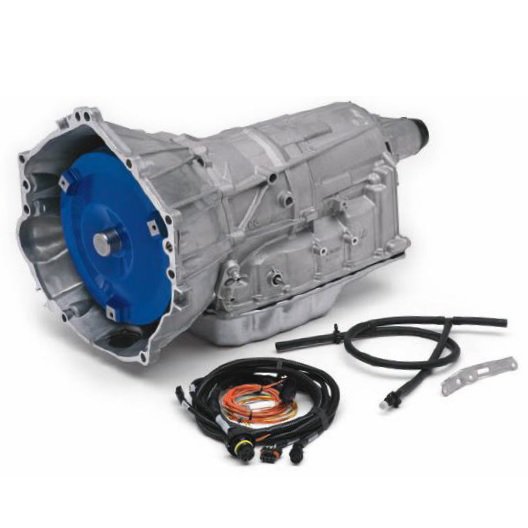

19540581 6L80-E SuperMatic Six-Speed Automatic Transmission

Name: 19540581 6L80-E SuperMatic Six-Speed Automatic Transmission
Brand: CHEVROLET PERFORMANCE
SKU: 809-19540581
Price: 6151.21 USD
Availability: InStock

^$6,151²¹

Truck Freight

4 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

6L80-E SuperMatic Six-Speed Automatic Transmission

For RWD Vehicles with GM LS Engine

440 ft.-lbs. Input TQ

650 ft.-lbs. Output TQ

2400-2800 Stall Converter

23.500 in. Long

32-Spline

195 lbs. Dry

Aluminum Case

6L80-E SuperMatic Additional Features:

Electro/hydraulic controls with clutch-to-clutch shifting.

Wiring harness includes connection provisions for paddle shifting.

Bulkhead connector supports aftermarket gear indicator displays and electronically controlled shifters.

-6 AN provisions for aftermarket transmission coolers.

6L80-E SuperMatic Gear Ratios:

1st: 4.02:1
2nd: 2.36:1
3rd: 1.53:1
4th: 1.15:1
5th 0.85:1
6th 0.67:1

6L80-E SuperMatic Includes:

Six-Speed Transmission
2400-2800 Stall Converter
Truck-Style Production Oil Pan
Production Vent Tube Assembly
32-Bit Transmission Controller (street & track calibrations) - Internal
Transmission Bulkhead Connector
Wiring Harness

6L80-E SuperMatic Does Not Include:

Transmission Dipstick
Dexron VI Transmission Fluid

19540581 supersedes 19366637

6L80-E Automatic Trans with 45% More Torque Than the Production Version

Chevrolet Performance 6L80-E SuperMatic Six-Speed Automatic Transmission is based on the production version six-speed transmission found in many modern rear-wheel-drive Chevrolet cars and trucks. This aftermarket version of the transmission is enhanced with upgraded internal components that allow for a much higher torque output of 650 ft.lbs. Equipped with a 4.02:1 first gear for strong off-the-line acceleration and a 0.67:1 final gear for smooth highway cruising, the 6L80-E is perfect for any project vehicle running a Chevrolet LS engine in a RWD configuration.

Part TypeAutomatic Transmission

Product LineChevrolet Performance SuperMatic 6L80E 6-Speed Automatic Transmission

BrandCHEVROLET PERFORMANCE

Package Height20.5

Package Width24.5

Package Length45.0

Weight220.0 PG

Part CategoryPerformance Parts

Transmission Mfr.GM

Transmission Drive Type2WD

QuantitySold individually

Transmission Mfr. Code6L80E
