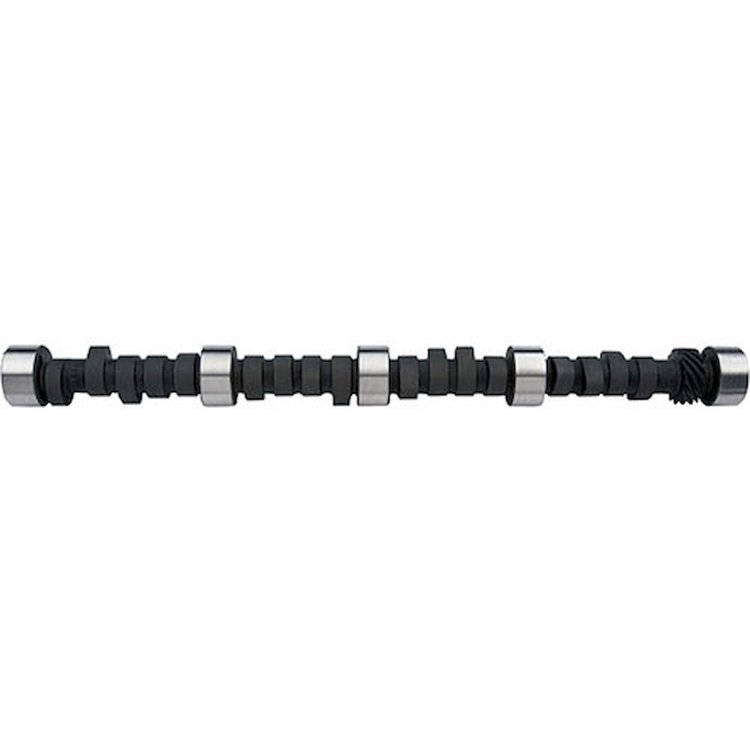

Hydraulic Flat Tappet Camshaft Small Block Chevy

Vehicle Info Needed

CHEVROLET PERFORMANCEPART NUMBER: 809-24502476

Hydraulic Flat Tappet Camshaft Small Block Chevy

Name: Hydraulic Flat Tappet Camshaft Small Block Chevy
Brand: CHEVROLET PERFORMANCE
SKU: 809-24502476
Price: 217.56 USD
Availability: InStock

^$217⁵⁶

1 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

Hydraulic Flat Tappet Camshaft

Small Block Chevy
210 / 220 Duration @ .050''
.435'' / .460'' lift
112.5 Lobe Separation Angle

Notes:
Used on the 350-300 and 330 HP special performance engine 809-12355345 & 809-12486014

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Chevrolet Performance Hydraulic Flat Tappet Camshafts endure extensive development and testing. Precise manufacturing goes into every Chevrolet Performance Camshaft. In many ways, the cam can be considered the heart of a high-performance engine. This is why Chevrolet Performance puts so much effort into delivering optimum power and drivability! Available for both small block and big block applications.

Part TypeCamshaft

Product LineChevrolet Performance Hydraulic Flat Tappet Camshafts

BrandCHEVROLET PERFORMANCE

Package Height3.1

Package Width3.3

Package Length27.2

Weight9.47 PG

Part CategoryPerformance Parts

Cam StyleHydraulic flat tappet

Intake Valve Lift With Factory Rocker Arm Ratio (I0.435

Intake Valve Lift7.366

Computer-Controlled CompatibleNo

Exhaust Valve Lift With Factory Rocker Arm Ratio11.684

Lobe Separation (Deg)112

Intake Valve Lift With Factory Rocker Arm Ratio11.049

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.46

Valve Lift With Factory Rocker Arm Ratio0.435 int./0.460 exh.

Intake Duration At .050 Inch Lift212

Camshaft Gear Attachment3-bolt

Width (In)3

Lobe Separation112.5

QuantitySold individually

Exhaust Valve Lift0.3066

Advertised Intake Duration276

Intake Duration At 050 Inch Lift212

Height (In)3

Exhaust Duration At 050 Inch Lift222

Length (In)27

Exhaust Duration At .050 Inch Lift222

Advertised Exhaust Duration280

Lifter TypeHydraulic Flat Tappet

Part FitmentSemi Universal

Computer Controlled CompatibleNo

Cam TypeHydraulic Flat Tappet

Weight (Lb)8.39

Duration At 050 Inch Lift212 int./222 exh.

Valve Springs RequiredYes

Vendor Part Number24502476

Package Qty1

Package TypeEA
