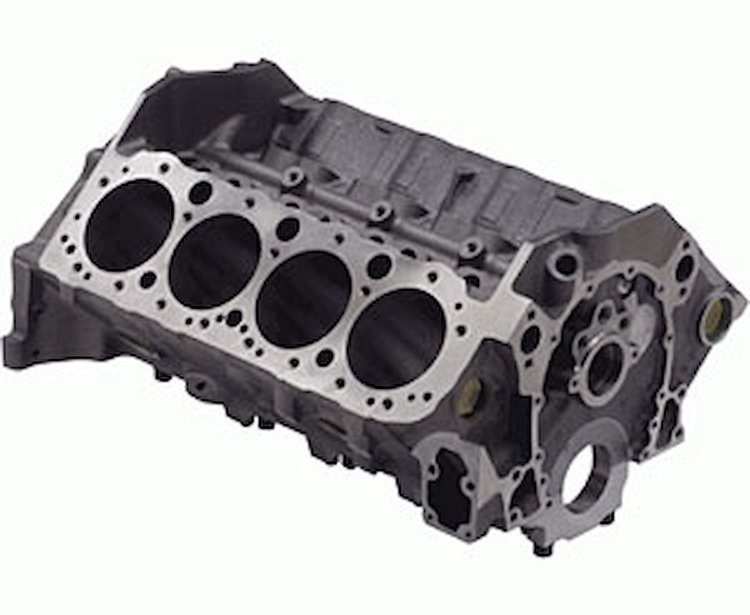

Cast Iron Bow Tie Race Block, SB Chevy (350 Main)

Product Discontinued

CHEVROLET PERFORMANCEPART NUMBER: 809-24502503

Cast Iron Bow Tie Race Block, SB Chevy (350 Main)

Name: Cast Iron Bow Tie Race Block, SB Chevy (350 Main)
Brand: CHEVROLET PERFORMANCE
SKU: 809-24502503
Price: 3089.46 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Standard Deck

Small Block Chevy (350 Main)
Standard Deck: 9.025''
Tested to 700+ Horsepower
3.980'' Finished Bore (4.155'' Maximum)
2.000' OD cam bearings required (1.867' ID)
Cylinder bore wall thickness is 0.225' minimum at 4.155' maximum bore
Oil passages for dry sump system are oversized and tapped for pipe plugs

Part TypeEngine Block

BrandCHEVROLET PERFORMANCE

Package Height18.0

Package Width21.0

Package Length30.0

Weight271.0 PG

Part CategoryPerformance Parts

Main Journal Type350 mains

Engine Block StyleStock/OEM standard deck

Engine Block MaterialCast iron

Cylinder Bore As Shipped4 in (101.6 mm)

QuantitySold individually

Raised Cam LocationNo

Freeze Plugs IncludedYes

Main Bolt Style4-bolt

Deck Height9.025 in (229.235 mm)

Main Bearings IncludedNo

Main Cap MaterialSteel

Rear Main Seal Style2-piece

Main Caps IncludedYes

Finished Cylinder BoresYes

Cylinder Bore Diameter4 in (101.6 mm)

Cam Bearings IncludedNo

Main Cap Fasteners IncludedYes

Vendor Part Number24502503

Package Qty1

Package TypeEA
