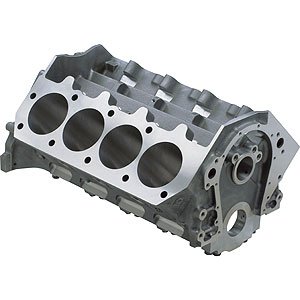

DRCE 2 Engine Block Gray Iron 4-Bolt Block
InfoVehicle Info Needed
CHEVROLET PERFORMANCEPART NUMBER: 809-24502572

DRCE 2 Engine Block Gray Iron 4-Bolt Block

$5,77367
Truck Freight
ShippingShips on 09/10/2026
Lowest PriceLowest Price Guarantee

DRCE 2 Gray Iron Engine Block
    DRCE 2 Engine Block
  • Gray Iron 4-Bolt Block
  • 9.525'' Deck Height
  • Camshaft Raised to 5.750''
  • 4.500'' Semi-Finished Bore (4.700'' max bore)
  • 16° Splayed 4-Bolt Steel Main Center Caps
  • .400'' Spread Oil Pan Rails Per Side


  • CNC-machined iron 4-bolt block
  • 9.525' deck height, may be machined to 9.000'
  • Camshaft raised to 5.750'
  • Cam tunnel accommodates 55mm cam bearings
  • 4.500' semi-finished bore
  • 4.700' max bore
  • 4-bolt steel main caps, 16° splayed-on center three mains
  • Oil pan rails spread .400' per side for additional stroke clearance
  • Deck Height: 9.525' - 9.000'
  • Fuel Pump Boss: No
  • Cylinder Wall: Siamese
  • Bore Range: 4.500' - 4.700'
  • Main Bolts #: 4
  • Main Bolt Degree: 16-Degree
  • Main Cap Meterial: Steel
  • Crankshaft Journal Size: 2.750'
  • Oiling System Configuration: Dry
  • Rear Main Seal Type: 2-Piece
  • Maximum Crankshaft Stroke: 4.600'
  • Block Weight: 255 lbs.
  • Maximum Tested Horsepower: 1400 HP

Chevrolet Performance DRCE (Drag Racing Competition Engine) Big Blocks are the foundation of many of the most powerful Pro Stock Drag Racing engines. Developed specifically with 500-cubic-inch Pro Stock engines in mind, the DRCE family of engine blocks is the latest evolution of Pro Stock engine design. In order to build optimum performance, DRCE blocks have bore spacing that allows for the preferred big bore/short stroke crankshaft combination. The camshaft has been raised & the distributor moved. The big bore design unshrouds the heads, which means bigger valves can be used. The result is maximized air/fuel mixtures. DRCE blocks are solid without lifter or head bolt holes so any GM big block cylinder heads may be used, and blocks are gray iron or compacted graphite (an extremely strong material that helps combat bore distortion & crank deflection under stress).

Show More

Specifications

  • CNC-machined to +/- 0.001'' tolerances
  • Siamese cylinder bores with 4.900'' spacing
  • No lifter bosses (solid bar can be drilled as required)
  • No head bolt holes
  • Numbers two and four main bearing bulkheads moved 0.060''
  • Bellhousing bolt pattern accommodates Chevy, Pontiac, and Oldsmobile transmissions
  • Uses big block Chevrolet crank, camshaft, balancer, flywheel, and water pump
  • Requires camshaft with distributor gear behind rear bearing
  • Priority main oiling dry sump system
  • Dual starter mounting locations
  • Front engine mounts only
  • Each block is supplied with sonic test data sheet
Part TypeEngine Block
Product LineChevrolet Performance Big Block Chevy DRCE Engine Blocks
BrandCHEVROLET PERFORMANCE
Package Height25.0
Package Width30.0
Package Length40.0
Weight250.0 PG
Part CategoryPerformance Parts
Cylinder Bore As Shipped4.49 in (114.046 mm)
Freeze Plugs IncludedNo
Main Bolt Style4-bolt
Deck Height9.525
Fuel TypeGas
Main Cap MaterialSteel
Main Bearing Cap Bolt Quantity4
Rear Main Seal Style2-piece
Main Caps IncludedYes
Cylinder Bore Diameter4.5
Main Journal TypeOEM
Engine Block StyleAftermarket
Engine Block MaterialCast iron
Engine Block Weight (Lbs.)255
QuantitySold individually
Raised Cam LocationNo
MaterialCast Iron
Main Bearings IncludedNo
Standard Or Reverse RotationStandard
Block Casting Number1A626
Cylinder Quantity8
Finished Cylinder BoresNo
Cam Bearings IncludedNo
Part FitmentSemi Universal
Main Cap Fasteners IncludedYes
Grade TypePerformance
Vendor Part Number24502572
Package Qty1
Package TypeEA
