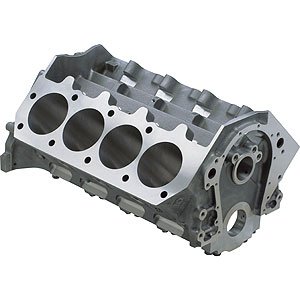

DRCE 3 Engine Block Compacted Graphite 4-Bolt Block

Vehicle Info Needed

CHEVROLET PERFORMANCEPART NUMBER: 809-25534406

DRCE 3 Engine Block Compacted Graphite 4-Bolt Block

Name: DRCE 3 Engine Block Compacted Graphite 4-Bolt Block
Brand: CHEVROLET PERFORMANCE
SKU: 809-25534406
Price: 9319.98 USD
Availability: InStock

^$9,319⁹⁸

Truck Freight

Ships on 09/10/2026

Lowest Price Guarantee

DRCE 3 Compacted Graphite Engine Block

Compacted Graphite 4-Bolt Block
9.250'' Deck Height
Camshaft Raised to 7.067''
4.590'' Semi-Finished Bore (4.700'' max bore)
22° Splayed 4-Bolt Steel Main Center Caps
Oil Pan Rails Spread to 12''
CNC-machined compacted graphite material 4-bolt block
9.250' deck height, can be machined to 9.000'
Camshaft raised to 7.067'
Cam tunnel accommodates (9) 60mm cam bearings
Cam tunnel is closed (no oil drain to rotating assembly)
4.590' semi-finished bore
4.700' max bore
2.500' crankshaft main journal
4-bolt steel doweled-after-assembly main caps, 22° splayed-oncenter three mains
Highest-available quality main studs
Oil pan rails spread to 12'
Oil and water plugs are AN O-ring-style
Deck Height: 9.250' - 9.000'
Fuel Pump Boss: No
Cylinder Wall: Siamese
Bore Range: 4.590' - 4.700'
Main Bolts #: 4
Main Bolt Degree: 22-Degree
Main Cap Meterial: Steel
Crankshaft Journal Size: 2.500'
Oiling System Configuration: Dry
Rear Main Seal Type: 2-Piece
Maximum Crankshaft Stroke: 4.600'
Block Weight: N/A
Maximum Tested Horsepower: 1400 HP

Part TypeEngine Block

BrandCHEVROLET PERFORMANCE

Package Height17.0

Package Width19.0

Package Length28.0

Part CategoryPerformance Parts

Main Bearing Cap Bolt Quantity4

Cylinder Quantity8

Cylinder Bore Diameter4.59

MaterialCast Iron

Part FitmentSemi Universal

Deck Height9.25

Grade TypePerformance

ToolStroker Combinations

Standard Or Reverse RotationStandard

Fuel TypeGas

Block Casting NumberCG

Vendor Part Number25534406

Package Qty1

Package TypeEA
