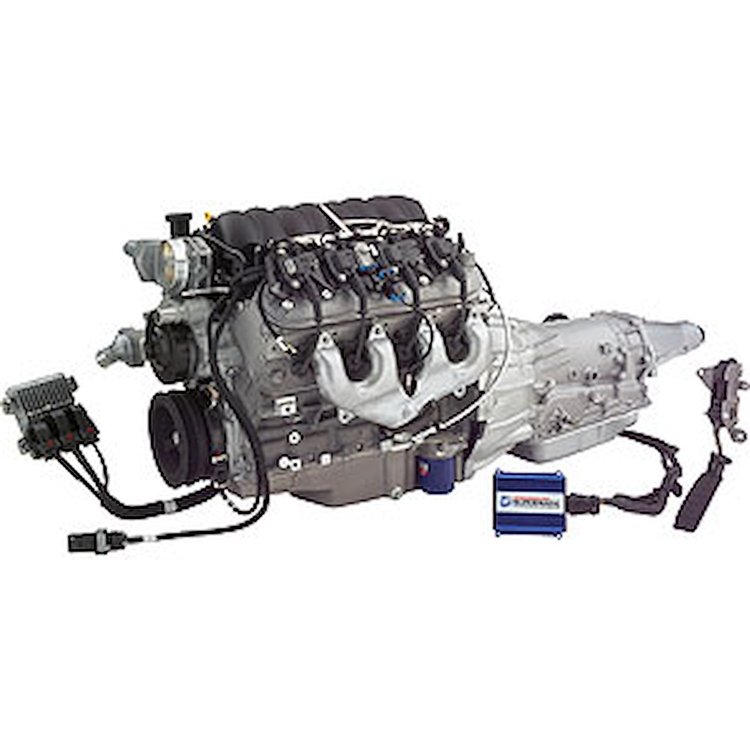

E-ROD LS3 6.2L 376ci Connect & Cruise Powertrain System 430 HP
Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-CPSLS34L65E2

E-ROD LS3 6.2L 376ci Connect & Cruise Powertrain System 430 HP

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Connect and Cruise Kits
    E-ROD LS3 6.2L 376ci Connect & Cruise Powertrain System
  • 430 HP at 5900 RPM
  • 424 ft/lbs TQ at 4600 RPM
  • Remanufactured Hydra-Matic 4L65-E Four Speed Transmission
  • 2400-2800 RPM Stall Torque Converter
  • CPSLS3EROD4L65E


    E-ROD LS3 TECH SPECS
  • Engine Type: LS-Series Gen IV Small-Block V-8
  • Displacement: 376ci (6.2L)
  • Bore x Stroke: 4.065' x 3.622' (103.25 x 92mm)
  • Block: Cast-aluminum with six-bolt, cross-bolted main caps
  • Crankshaft: Nodular iron
  • Connecting Rods: Powdered metal
  • Pistons: Hypereutectic aluminum
  • Camshaft Type: Hydraulic roller
  • Valve Lift: .551' intake / .522' exhaust
  • Camshaft Duration (@.050 in.): 204° intake / 211° exhaust
  • Cylinder Heads: Aluminum L92-style port; 'as cast' with 68-cc chambers
  • Valve Size: 2.165' intake / 1.590' exhaust
  • Compression Ratio: 10.7:1
  • Rocker Arms: Investment-cast, roller trunnion
  • Rocker Arm Ratio: 1.7:1
  • Recommended Fuel: 92 octane
  • Maximum Recommended rpm: 6600
  • Reluctor Wheel: 58X
  • Balanced: Internal
  • Includes Chevy SS mid wet sump oil pan installed. This oil pan will ONLY fit 2010-15 Camaro SS/ZL1, 2012-15 Caprice PPV, 2014-15 Chevy SS, 2008-09 Pontiac G8 chassis. THIS INSTALLED OIL PAN WILL NOT WORK WITH MUSCLE CAR LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS. (Click here to see oil pan dimensions)

    Power Your Project with CARB-certified GM LS Performance!

    Chevrolet Performance LS3 E-ROD powertrain system will enable enthusiasts to build a vehicle that complies with emissions law while providing modern-day performance and efficiency. This E-ROD System is certified by California Air Resources Board (CARB EO #D-126-32), which permits its installation into classic cars and trucks that predate onboard OBD-II emissions diagnostics. This 6.2L LS3 engine delivers 430 horsepower just like it's found in a C6 Corvette with a refinement that is rare in the world of high performance.

    Show More

    Connect and Cruise Kits

    Chevrolet Performance continues to lead the industry with its unprecedented Connect & Cruise crate powertrain systems - factory-engineered engine and transmission combinations. Chevy Performance engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower from them with total confidence. The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation and operation without the need for third-party tuning. Each kit delivers a brand-new, fully assembled crate engine, an electronically controlled overdrive transmission, electronic control modules for both, and the engine control hardware to get it all running in your project vehicle. The convenience of a crate engine, the assurance of factory validated performance, and the value of an inclusive package - that's what you get with Chevrolet Performance's Connect & Cruise crate powertrain systems. Detailed instructions outline all the necessary steps. The engineers did all the hard work of designing and calibrating perfectly matched powertrain systems - and they covered them with a 24-month/50,000-mile limited warranty.

    The Chevrolet Performance E-ROD LS3 6.2L 430HP Crate Engine offers the perfect balance of high-performance power and modern emissions compliance. Designed specifically for hot rod and restomod enthusiasts in emissions-controlled states, the E-ROD LS3 brings legendary LS power in a package that's 50-state legal and ready for the road.

    Producing a stout 430 horsepower and 424 lb-ft of torque, this engine delivers crisp throttle response and smooth drivability thanks to its proven aluminum block, high-flow heads, and hydraulic roller camshaft. Whether you're building a street cruiser or a weekend track machine, the 6.2 LS motor offers reliable, modern power without sacrificing performance.

    What sets the LS3 EROD apart is its complete system approach. It includes a specially calibrated ECM, wiring harness, oxygen sensors, MAF sensor, catalytic converters, and more—everything you need to meet emissions requirements while simplifying your swap. It's engineered to deliver a factory-quality driving experience in a custom build.

    Looking for an LS3 engine and transmission combo to modernize your classic? Pairing the E-ROD LS3 with a GM automatic or manual transmission delivers unmatched performance and seamless integration, taking your project to the next level.

    For builders who want horsepower with responsibility, the E-ROD LS3 is the smart solution. With OEM quality, plug-and-play simplicity, and emissions compliance, it's the ideal choice for enthusiasts who demand performance without compromise. Take your build further—clean, powerful, and road-ready with Chevrolet Performance.

Part TypeEngine
Product LineChevrolet Performance E-ROD LS3 6.2L 430HP Crate Engine
BrandCHEVROLET PERFORMANCE
Part CategoryPerformance Parts
Wiring Harness IncludedYes
Spark Plug Wires IncludedYes
Cylinder Head MaterialAluminum
Air Cleaner IncludedNo
Carburetor IncludedNo
Carb Eo NumberD-126-30 (pdf)
Water Pump IncludedYes
Transmission Drive Type2WD
EmissionLegal
Flexplate IncludedNo
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeGM Gen III/IV LS
Flywheel IncludedNo
Engine TypeHigh-Performance Crate Engine
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower430
Distributor IncludedNo
Camshaft StyleHydraulic roller tappet
Engine Block MaterialAluminum
Cylinder Heads IncludedYes
Computer IncludedYes
Transmission Mfr.GM
Throttle Body IncludedYes
Harmonic Balancer IncludedYes
QuantitySold as a Kit
Fuel DeliveryFuel Injection
Transmission Mfr. Code4L65-E
Rpm Power Range800-6400
Engine BalanceInternal
Compression Ratio10.7:1
Oil Pan IncludedYes
Part FitmentSemi Universal
Engine Displacement6.2L
Timing Cover IncludedYes
Spark Plugs IncludedYes
Vendor Part NumberCPSLS34L65E2
Package Qty1
Package TypeEA
