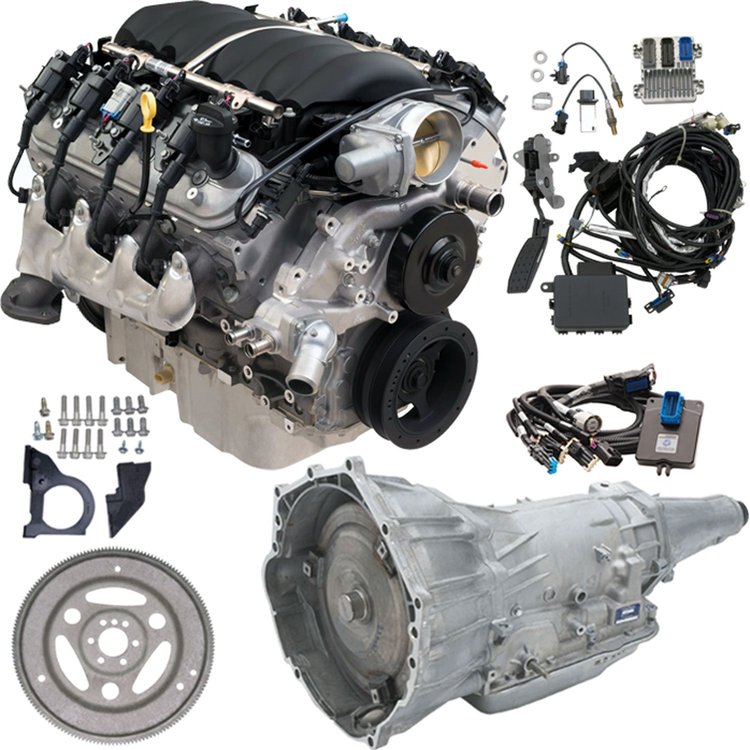

LS376/525 376ci 6.2L Connect & Cruise Powertrain System 4L70-E Trans
Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-CPSLS34L70E2

LS376/525 376ci 6.2L Connect & Cruise Powertrain System 4L70-E Trans

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Connect and Cruise Kits
    LS376/525 Connect & Cruise Powertrain System
  • 525 HP @ 6200 RPM
  • 486 ft/lbs TQ @ 5200 RPM
  • Remanufactured SuperMatic 4L70-E Four Speed Transmission
  • 3000-3400 RPM Stall Torque Converter
  • CPSLS3765254L70E

    LS376/525 376ci / 6.2L TECH SPECS:
  • Engine Type: LS-Series Gen IV Small-Block V-8
  • Displacement: 376ci (6.2L)
  • Bore x Stroke: 4.065' x 3.622' (103.25 x 92mm)
  • Block: Cast aluminum with 6-bolt, cross-bolted main bearing caps
  • Crankshaft: Nodular Iron, 6-bolt
  • Connecting Rods: Powdered-metal
  • Pistons: Hypereutectic aluminum
  • Compression Ratio: 10.7:1
  • Camshaft Type: Billet steel hydraulic roller
  • Valve Lift: .525' intake/ .525' exhaust
  • Camshaft Duration (@.050 in.): 226° intake / 236° exhaust
  • Cylinder Heads: Aluminum L92-style port; "as cast" with 68cc chambers
  • Valve Size: 2.165' intake / 1.590' exhaust
  • Rocker Arms: Investment-cast, roller trunnion
  • Rocker Arm Ratio: 1.81:1
  • Recommended Fuel: Premium pump
  • Maximum Recommended RPM: 6600
  • Reluctor Wheel: 58X
  • Balanced: Internal
  • INSTALLATION NOTES:
  • Intended for pre-1976 street vehicles or any off-road vehicle
  • Not intended for marine applications
  • Front-end accessory drive kits are available in two configurations
  • Includes Chevy SS mid wet sump oil pan installed. This oil pan will ONLY fit 2010-15 Camaro SS/ZL1, 2012-15 Caprice PPV, 2014-15 Chevy SS, 2008-09 Pontiac G8 chassis. THIS INSTALLED OIL PAN WILL NOT WORK WITH MUSCLE CAR LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS. (Click here to see oil pan dimensions)
  • Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Fuel-Injected Ferocity for Performance Cars of All Ages

    The Chevrolet Performance LS376/525 6.2L LS3 Engine is what do you get when you take Chevrolet's aggressive ASA camshaft, developed for the high-RPM world of circle track, and slip it into an LS3 crate engine. This 525 horsepower monster is one of their most powerful production-based crate engines, the new LS376/525! The ASA cam is a hydraulic roller that helps the engine deliver excellent throttle response and breathe exceptionally well at high RPM. For durability, they complement the cam with higher-rate valve springs to add stability to the valvetrain. This simple yet effective combination has an edge to it.

    Show More You'll notice it in the idle quality and you'll feel it when the revs quickly climb. With 20 more horsepower than the larger-displacement LS7, it's definitely not for the timid!

    Connect and Cruise Kits

    Chevrolet Performance continues to lead the industry with its unprecedented Connect & Cruise crate powertrain systems - factory-engineered engine and transmission combinations. Chevy Performance engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower from them with total confidence. The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation and operation without the need for third-party tuning. Each kit delivers a brand-new, fully assembled crate engine, an electronically controlled overdrive transmission, electronic control modules for both, and the engine control hardware to get it all running in your project vehicle. The convenience of a crate engine, the assurance of factory validated performance, and the value of an inclusive package - that's what you get with Chevrolet Performance's Connect & Cruise crate powertrain systems. Detailed instructions outline all the necessary steps. The engineers did all the hard work of designing and calibrating perfectly matched powertrain systems - and they covered them with a 24-month/50,000-mile limited warranty.

    GM Warranty

    Unleash serious street and track power with the Chevrolet Performance LS3 LS376/525 6.2L 525HP Crate Engine—a bold upgrade for any high-performance build. Based on the proven LS3 platform, this crate engine ups the ante with a more aggressive camshaft and enhanced airflow, delivering an impressive 525 horsepower and 486 lb-ft of torque.

    The LS3 motor is known for its balance of reliability, modern technology, and performance, and this LS376/525 variant takes it a step further. It's engineered for enthusiasts who want more than stock but still value GM-level durability and ease of integration. Featuring high-flow rectangular port aluminum cylinder heads and a high-lift hydraulic roller camshaft, this engine offers thrilling top-end power without sacrificing street manners.

    Perfect for Pro-Touring builds, hot rods, or late-model swaps, the LS376/525 delivers plug-and-play performance when paired with GM's Connect & Cruise system. Whether you're building a track weapon or weekend cruiser, this engine gives you the punch you're looking for with minimal guesswork.

    Considering the LS376/525 price compared to custom-built alternatives, this engine offers outstanding value with factory-tested performance and peace of mind. If you're searching for a factory-backed crate engine that combines raw power with modern efficiency, the LS3 525 is your solution.

    Upgrade your project with one of Chevrolet Performance's most exciting crate options—engineered to deliver uncompromising horsepower and rock-solid reliability right out of the box.

Part TypeEngine
Product LineChevrolet Performance LS3 LS376/525 6.2L 525HP Crate Engine
BrandCHEVROLET PERFORMANCE
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Spark Plug Wires IncludedYes
Cylinder Head MaterialAluminum
Air Cleaner IncludedNo
Carburetor IncludedNo
Carb Eo NumberN/A
Water Pump IncludedYes
EmissionNot Legal
Flexplate IncludedYes
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeGM Gen III/IV LS
Flywheel IncludedNo
Engine TypeHigh-Performance Crate Engine
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower525
Distributor IncludedYes
Camshaft StyleHydraulic roller tappet
Engine Block MaterialAluminum
Cylinder Heads IncludedYes
Computer IncludedNo
Throttle Body IncludedYes
Harmonic Balancer IncludedYes
QuantitySold as a Kit
Fuel DeliveryFuel Injection
Rpm Power Range3000-6300
Engine BalanceInternal
Compression Ratio10.7:1
Oil Pan IncludedYes
Part FitmentSemi Universal
Engine Displacement6.2L
Timing Cover IncludedYes
Spark Plugs IncludedYes
Vendor Part NumberCPSLS34L70E2
Package Qty1
Package TypeEA
