Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-CPSLS376480T

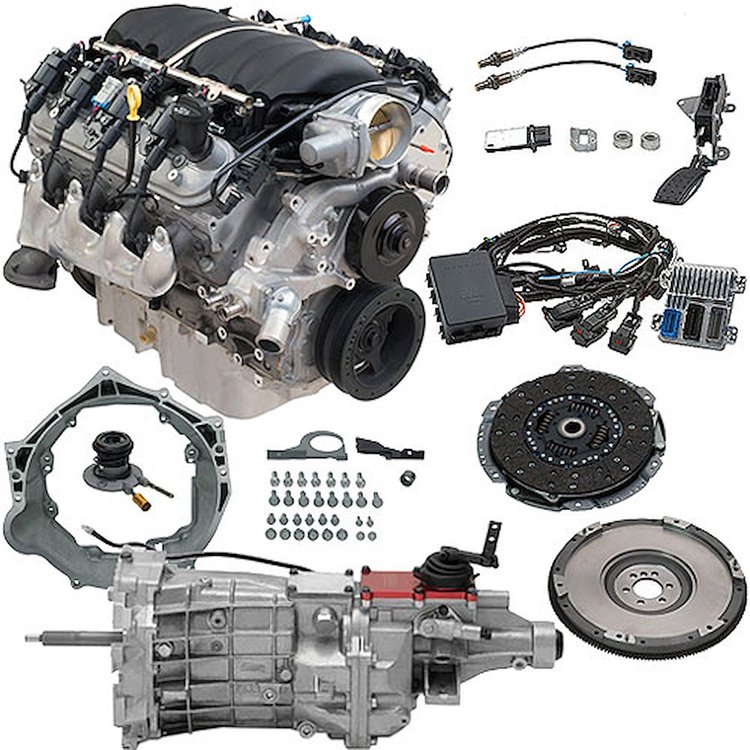

LS376/480 376ci 6.2L Connect & Cruise Powertrain System 495 HP
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Connect and Cruise Kits
- LS376/480 376ci 6.2L Connect & Cruise Powertrain System
- 495 HP @ 5750 RPM
- 473 ft.-lbs. of TQ @ 4500 RPM
- T56 Super Magnum Six Speed Transmission
- CPSLS376480T56
- CPSLS3764806LMAN
LS376/480 TECH SPECS: - Engine Type: LS-Series Gen IV Small-Block V-8
- Displacement: 376ci (6.2L)
- Bore x Stroke: 4.065' x 3.622' (103.25 x 92mm)
- Block: Cast-aluminum with six-bolt, cross-bolted main caps
- Crankshaft: Nodular Iron
- Connecting Rods: Powdered Metal
- Pistons: Hypereutectic Aluminum
- Camshaft Type: Hydraulic Roller
- Camshaft Lift: .525' intake / .525' exhaust
- Camshaft Duration (@.050 in.): 219° intake / 228° exhaust
- Cylinder Heads: Aluminum L92-style port; 'as cast' with 68-cc chambers
- Valve Size: 2.165' intake / 1.590' exhaust
- Compression Ratio: 10.7:1
- Rocker Arms: Investment-cast, roller trunnion
- Rocker Arm Ratio: 1.7:1
- Recommended Fuel: 92 Octane
- Maximum Recommended rpm: 6600
- Reluctor Wheel: 58X
- Balanced: Internal Installation Notes:
- Includes Chevy SS mid wet sump oil pan installed. This oil pan will ONLY fit 2010-15 Camaro SS/ZL1, 2012-15 Caprice PPV, 2014-15 Chevy SS, 2008-09 Pontiac G8 chassis. THIS INSTALLED OIL PAN WILL NOT WORK WITH MUSCLE CAR LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS. (Click here to see oil pan dimensions)
- Intended for pre-1976 street vehicles or any off-road vehicle
- Not intended for marine applications
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeEngine
BrandCHEVROLET PERFORMANCE
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Spark Plug Wires IncludedYes
Cylinder Head MaterialAluminum
Air Cleaner IncludedNo
Carburetor IncludedNo
Carb Eo NumberN/A
Water Pump IncludedYes
EmissionNot Legal
Flexplate IncludedYes
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeGM Gen III/IV LS
Flywheel IncludedNo
Engine TypeHigh-Performance Crate Engine
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower495
Distributor IncludedNo
Camshaft StyleHydraulic roller tappet
ToolTransmission Lookup
Engine Block MaterialAluminum
Cylinder Heads IncludedYes
Computer IncludedNo
Throttle Body IncludedYes
Harmonic Balancer IncludedYes
QuantitySold as a Kit
Fuel DeliveryFuel Injection
Rpm Power Range2000-6500
Engine BalanceInternal
Compression Ratio10.7:1
Oil Pan IncludedYes
Part FitmentSemi Universal
Engine Displacement6.2L
Timing Cover IncludedYes
Spark Plugs IncludedYes
Package Qty1
Package TypeEA
