LS376/525 376ci 6.2L Connect & Cruise Powertrain System 525 HP

Product Discontinued

CHEVROLET PERFORMANCEPART NUMBER: 809-CPSLS376525T

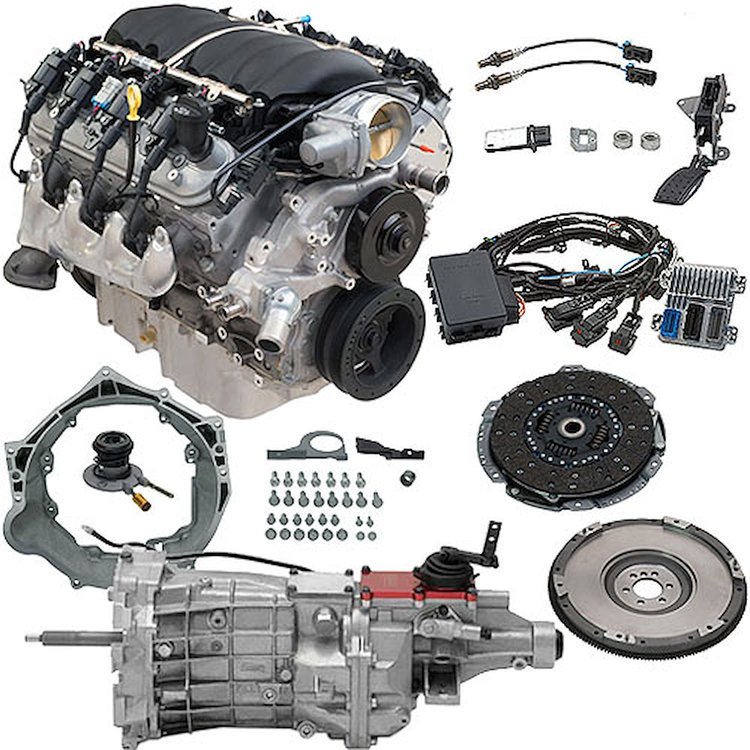

LS376/525 376ci 6.2L Connect & Cruise Powertrain System 525 HP

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

525 HP @ 6300 RPM
489 ft/lbs TQ @ 4400 RPM
T56 Super Magnum Six Speed Transmission
CPSLS376525T56
CPSLS3765256LMAN

LS376/525 TECH SPECS
Engine Type: LS-Series Gen IV Small-Block V-8
Displacement: 376ci (6.2L)
Bore x Stroke: 4.065' x 3.622' (103.25 x 92mm)
Block: Cast-aluminum with six-bolt, cross-bolted main caps
Crankshaft: Nodular iron
Connecting Rods: Powdered metal
Pistons: Hypereutectic aluminum
Camshaft Type: Hydraulic roller
Valve Lift: .525' intake / .525' exhaust
Camshaft Duration (@.050 in.): 226° intake / 236° exhaust
Cylinder Heads: Aluminum L92-style port; 'as cast' with 68cc chambers
Valve Size: 2.165' intake / 1.590' exhaust
Compression Ratio: 10.7:1
Rocker Arms: Investment-cast, roller trunnion
Rocker Arm Ratio: 1.7:1
Recommended Fuel: 92 octane
Maximum Recommended rpm: 6600
Reluctor Wheel: 58X
Balanced: Internal

INSTALLATION NOTES:

Includes Chevy SS mid wet sump oil pan installed. This oil pan will ONLY fit 2010-15 Camaro SS/ZL1, 2012-15 Caprice PPV, 2014-15 Chevy SS, 2008-09 Pontiac G8 chassis. THIS INSTALLED OIL PAN WILL NOT WORK WITH MUSCLE CAR LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS. (Click here to see oil pan dimensions)
Intended for pre-1976 street vehicles or any off-road vehicle
Not intended for marine applications
Non-Corvette applications require flexplate - p/n 809-12654640
Front-end accessory drive kits are available in two configurations

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeEngine

BrandCHEVROLET PERFORMANCE

Part CategoryPerformance Parts

Wiring Harness IncludedNo

Spark Plug Wires IncludedYes

Cylinder Head MaterialAluminum

Air Cleaner IncludedNo

Carburetor IncludedNo

Carb Eo NumberN/A

Water Pump IncludedYes

EmissionNot Legal

Flexplate IncludedYes

AssembledYes

Engine Assembly StyleLong block

Intake Manifold IncludedYes

Engine Make/SizeGM Gen III/IV LS

Flywheel IncludedNo

Engine TypeHigh-Performance Crate Engine

Rear Main Seal Style1-piece

Valve Covers IncludedYes

Horsepower525

Distributor IncludedYes

Camshaft StyleHydraulic roller tappet

ToolTransmission Lookup

Engine Block MaterialAluminum

Cylinder Heads IncludedYes

Computer IncludedNo

Throttle Body IncludedYes

Harmonic Balancer IncludedYes

QuantitySold individually

Fuel DeliveryFuel Injection

Rpm Power Range3000-6300

Engine BalanceInternal

Compression Ratio10.7:1

Oil Pan IncludedYes

Part FitmentSemi Universal

Engine Displacement6.2L

Timing Cover IncludedYes

Spark Plugs IncludedYes

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
