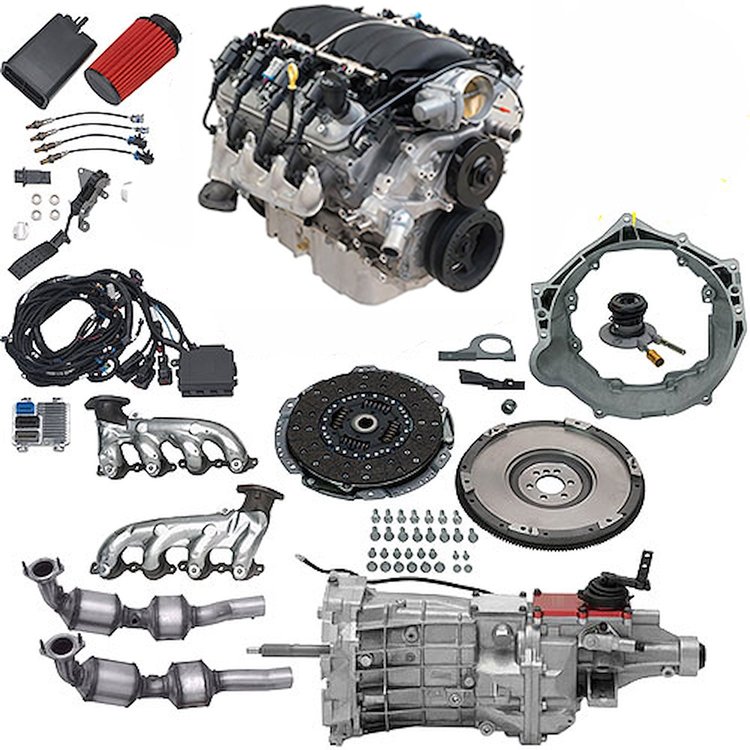

CPSLS3ERODT E-ROD LS3 6.2L 376ci Connect & Cruise Powertrain System 430 HP Features:

• Engine Type: LS-Series Gen IV Small-Block V-8
• Displacement: 376ci (6.2L)
• Bore x Stroke: 4.065' x 3.622' (103.25 x 92mm)
• Block: Cast aluminum with six-bolt, cross-bolted main caps
• Crankshaft: Nodular iron
• Connecting Rods: Powdered metal
• Pistons: Hypereutectic aluminum
• Camshaft Type: Hydraulic roller
• Valve Lift: .551' intake / .522' exhaust
• Camshaft Duration (@.050 in.): 204° intake / 211° exhaust
• Cylinder Heads: Aluminum L92-style port; 'as cast' with 68-cc chambers
• Valve Size: 2.165' intake / 1.590' exhaust
• Compression Ratio: 10.7:1
• Rocker Arms: Investment-cast, roller trunnion
• Rocker Arm Ratio: 1.7:1
• Recommended Fuel: 92 octane
• Maximum Recommended rpm: 6600
• Reluctor Wheel: 58X
• Balanced: Internal

CPSLS3ERODT E-ROD LS3 6.2L 376ci Connect & Cruise Powertrain System 430 HP Note:

• THIS INSTALLED OIL PAN WILL NOT WORK WITH MUSCLE CAR LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS.
