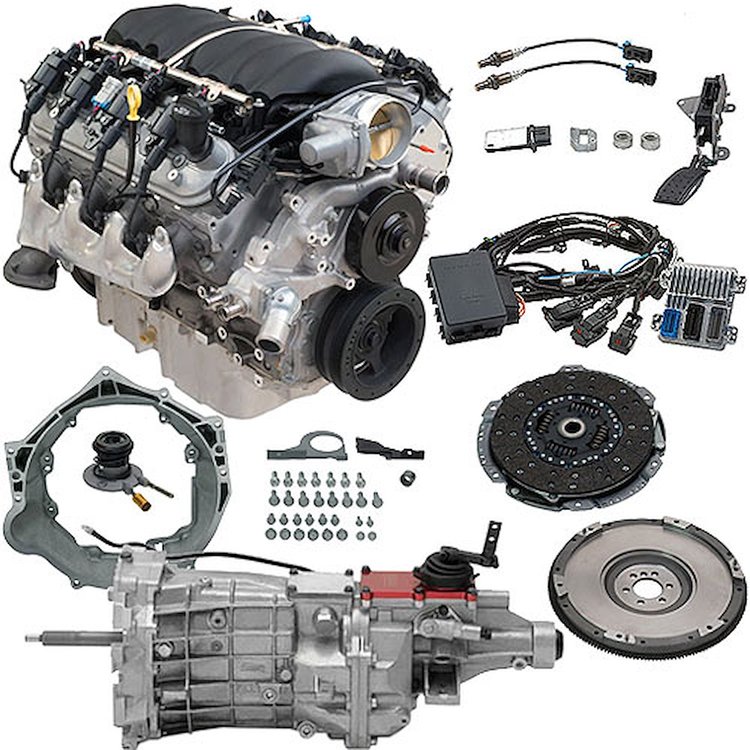

LS3 376ci 6.2L Connect & Cruise Powertrain System 430 HP

Product Discontinued

CHEVROLET PERFORMANCEPART NUMBER: 809-CPSLS3T56

LS3 376ci 6.2L Connect & Cruise Powertrain System 430 HP

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

430 HP @ 5900 RPM
424 ft/lbs TQ @ 4600 RPM
T56 Super Magnum Six Speed Transmission
CPSLS36LMAN

LS3 6.2L TECH SPECS
Engine Type: LS-Series Gen IV Small-Block V-8
Displacement: 376ci (6.2L)
Bore x Stroke: 4.065' x 3.622' (103.25 x 92mm)
Block: Cast-aluminum with six-bolt, cross-bolted main caps
Crankshaft: Nodular iron
Connecting Rods: Powdered metal
Pistons: Hypereutectic aluminum
Camshaft Type: Hydraulic roller
Valve Lift: .551' intake / .522' exhaust
Camshaft Duration (@.050 in.): 204° intake / 211° exhaust
Cylinder Heads: Aluminum L92-style port; 'as cast' with 68cc combustion chambers
Valve Size: 2.165' intake / 1.590' exhaust
Compression Ratio: 10.7:1
Rocker Arms: Investment-cast, roller trunnion
Rocker Arm Ratio: 1.7:1
Recommended Fuel: 92 octane
Maximum Recommended rpm: 6600
Reluctor Wheel: 58X
Balanced: Internal

INSTALLATION NOTES:

Includes Chevy SS mid wet sump oil pan installed. This oil pan will ONLY fit 2010-15 Camaro SS/ZL1, 2012-15 Caprice PPV, 2014-15 Chevy SS, 2008-09 Pontiac G8 chassis. THIS INSTALLED OIL PAN WILL NOT WORK WITH MUSCLE CAR LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS. (Click here to see oil pan dimensions)
Not intended for marine applications

Part TypeEngine

BrandCHEVROLET PERFORMANCE

Part CategoryPerformance Parts

Wiring Harness IncludedNo

Spark Plug Wires IncludedYes

Cylinder Head MaterialAluminum

Air Cleaner IncludedNo

Carburetor IncludedNo

Carb Eo NumberN/A

Water Pump IncludedYes

EmissionNot Legal

Flexplate IncludedYes

AssembledYes

Engine Assembly StyleLong block

Intake Manifold IncludedYes

Engine Make/SizeGM Gen III/IV LS

Flywheel IncludedNo

Engine TypeHigh-Performance Crate Engine

Rear Main Seal Style1-piece

Valve Covers IncludedYes

Horsepower430

Distributor IncludedYes

Camshaft StyleHydraulic roller tappet

ToolTransmission Lookup

Engine Block MaterialAluminum

Cylinder Heads IncludedYes

Computer IncludedNo

Throttle Body IncludedYes

Harmonic Balancer IncludedYes

QuantitySold as a Kit

Fuel DeliveryFuel Injection

Rpm Power Range800-6400

Engine BalanceInternal

Compression Ratio10.7:1

Oil Pan IncludedYes

Part FitmentSemi Universal

Engine Displacement6.2L

Timing Cover IncludedYes

Spark Plugs IncludedYes

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
