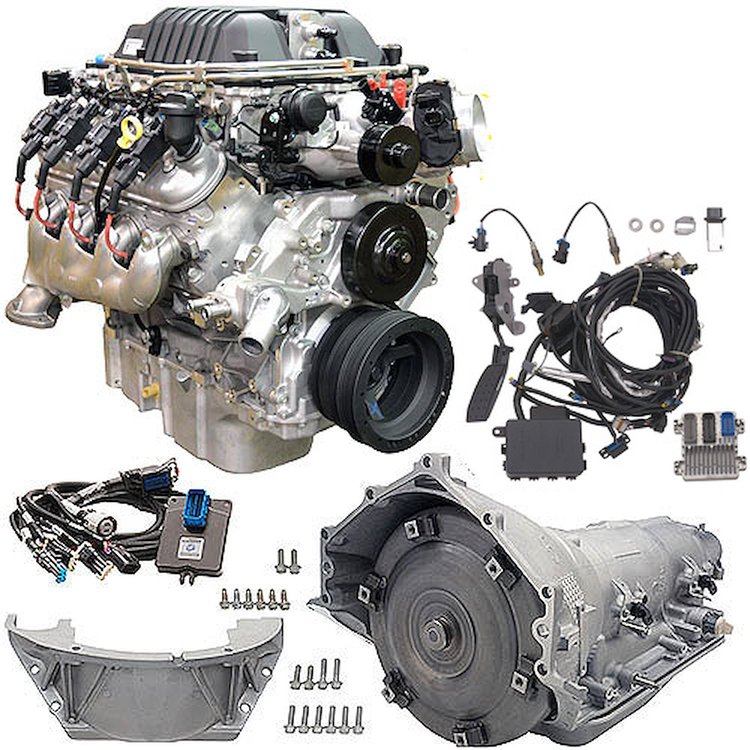

LSA Supercharged 6.2L Connect & Cruise Powertrain System 4L85-E Trans

Name: LSA Supercharged 6.2L Connect & Cruise Powertrain System 4L85-E Trans
Brand: CHEVROLET PERFORMANCE
SKU: 809-CPSLSA4L85E
Price: 23025.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Connect and Cruise Kits

Connect & Cruise Powertrain System

GM LSA Supercharged 6.2L Engine

556 HP @ 6100 RPM

551 ft/lbs TQ @ 3800 RPM

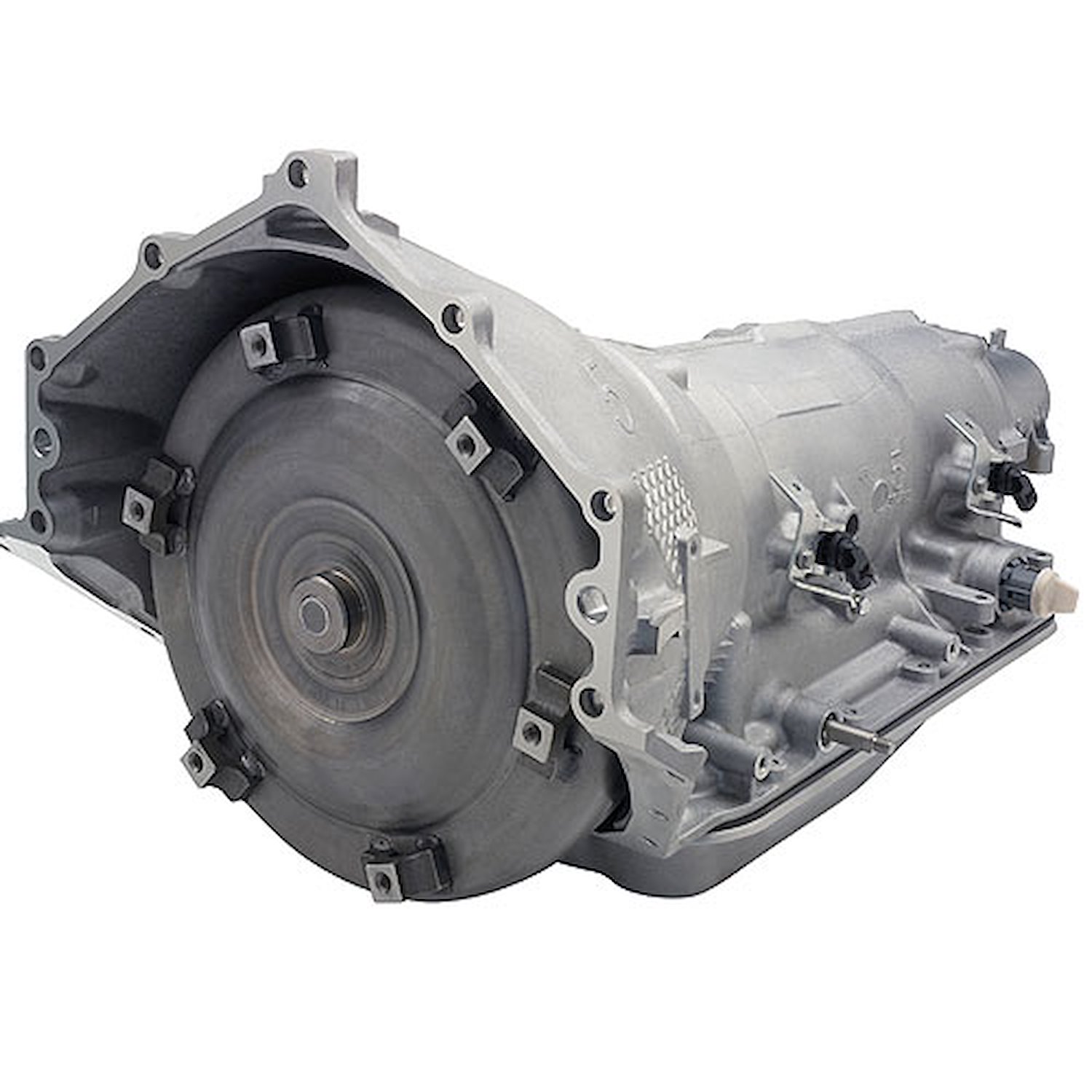

Hydra-Matic 4L85-E Transmission (Remanufactured)

2400-2800 RPM Stall Torque Converter

LSA 6.2L SC TECH SPECS:

Engine Type: 6.2L Gen IV V8 Small Block
Displacement: 6.2L 376ci (6162cc)
Bore x Stroke: 4.06' x 3.62' (103.25mm x 92mm)
Block: Cast aluminum with 6-bolt cross-bolted nodular iron main caps
Crankshaft: Forged Steel
Connecting Rods: Powdered Metal
Pistons: Hypereutectic Aluminum
Camshaft Type: Hydraulic Roller
Valve Lift: .480' Intake / .480' Exhaust
Camshaft Duration at .050': 198° Intake / 216° Exhaust
Cylinder Heads: Aluminum L92 style intake port 'as cast' with 68cc combustion chambers
Valve Size: 2.16' Intake / 1.59' Exhaust
Compression Ratio: 9.1 to 1
Rocker Arms: 1.7 to 1 Ratio, Investment Cast, Roller Trunnion
Recommended Fuel: 92 Octane
Maximum Recommended RPM: 6200
Reluctor Wheel: 58X
Balance: Internal
Includes Chevy SS mid wet sump oil pan installed. This oil pan will ONLY fit 2010-15 Camaro SS/ZL1, 2012-15 Caprice PPV, 2014-15 Chevy SS, 2008-09 Pontiac G8 chassis. THIS INSTALLED OIL PAN WILL NOT WORK WITH MUSCLE CAR LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS. (Click here to see oil pan dimensions)

Installation Notes:

Assembly does not include any electronics or accessory drive components
Coolant pump included P/N 22901367
8-bolt crank flange
Not intended for marine applications
Includes flexplate
Assembled with ZL1 Camaro wet sump oil pan

ZL1 Camaro Power for Your Hot Rod!

Chevrolet Performance's LSA 6.2L supercharged crate engine is an increasingly popular choice for hot rod builders, thanks to its great balance of performance and value. This supercharged engine uses a unique aluminum cylinder block casting that's home to a forged steel crankshaft with integrated piston-cooling oil jets and high-flow cylinder heads that support the airflow pushed by a 1.9L Eaton TVS supercharger. Same as the production variant used in the fifth-generation Camaro ZL1 with the updated intercooler lid, this LSA produces 580 horsepower and 556 lb.-ft. of tire-shredding torque.

Connect and Cruise Kits

Chevrolet Performance continues to lead the industry with its unprecedented Connect & Cruise crate powertrain systems - factory-engineered engine and transmission combinations. Chevy Performance engineers matched the engines and transmissions for optimal performance and durability, so you can wring out every horsepower from them with total confidence. The specially calibrated controllers are designed for retrofit installations in older vehicles, for easier and quicker installation and operation without the need for third-party tuning. Each kit delivers a brand-new, fully assembled crate engine, an electronically controlled overdrive transmission, electronic control modules for both, and the engine control hardware to get it all running in your project vehicle. The convenience of a crate engine, the assurance of factory validated performance, and the value of an inclusive package - that's what you get with Chevrolet Performance's Connect & Cruise crate powertrain systems. Detailed instructions outline all the necessary steps. The engineers did all the hard work of designing and calibrating perfectly matched powertrain systems - and they covered them with a 24-month/50,000-mile limited warranty.

GM Warranty

Part TypeEngine

Product LineChevrolet Performance LSA Supercharged 6.2L Crate Engine (556 HP)

BrandCHEVROLET PERFORMANCE

Part CategoryPerformance Parts

Wiring Harness IncludedYes

Spark Plug Wires IncludedYes

Cylinder Head MaterialAluminum

Carburetor IncludedNo

Water Pump IncludedYes

Flexplate IncludedYes

AssembledYes
