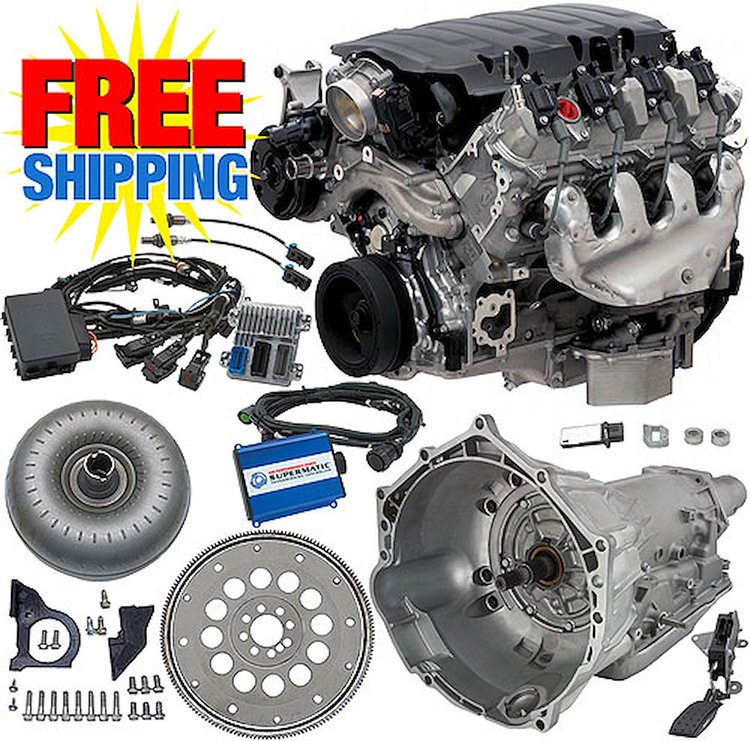

LT1 376ci / 6.2L TECH SPECS:

• Engine Type: Direct injection spark ignition Gen V Small-Block V8
• Displacement: 376ci (6.2L)
• Bore x Stroke: 4.065' x 3.622' (103.25 x 92mm)
• Block: Cast aluminum with 6-bolt nodular iron main bearing caps
• Crankshaft: Forged steel
• Connecting Rods: Forged powdered metal
• Pistons: Hypereutectic aluminum
• Compression Ratio: 11.5:1
• Camshaft Type: Billet steel roller
• Valve Lift: .561' intake/ .531' exhaust
• Camshaft Duration (@.050 in.): 200° intake / 212° exhaust
• Valve Size: 2.13' intake / 1.59' exhaust
• Rocker Arms: Investment-cast, roller trunnion
• Rocker Arm Ratio: 1.81:1
• Recommended Fuel: Premium
• Maximum Recommended RPM: 6600
• Reluctor Wheel: 58X
• Balanced: Internal

INSTALLATION NOTES:

• Engines shipped with high-pressure direct-injection fuel pump installed
• Intended for pre-1976 street vehicles or any off-road vehicle
• 8-bolt crankshaft flange
• Not intended for marine applications
• Dry sump engine requires production or aftermarket oil lines and external oil tank (not included)
• Dry sump engine comes with a Corvette oil pan. Use oil hose adapters (p/n 809-25534412) to adapt -12 AN fittings
