Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-CPSLT1T56W

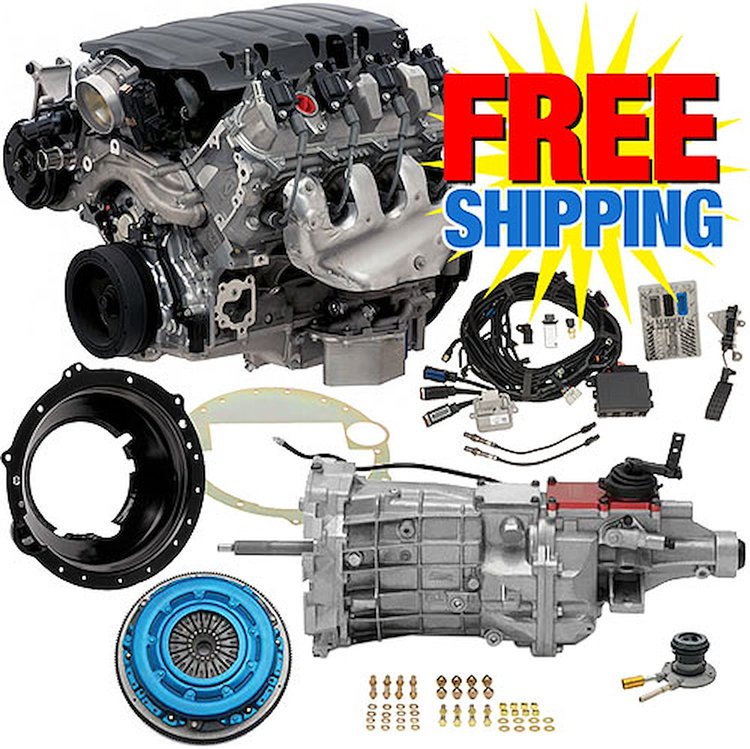

LT1 376ci 6.2L Connect & Cruise Powertrain System, Wet Sump & 6 Speed Trans
$22,93778
Truck Freight
Ships on 09/16/2026
Lowest Price Guarantee- LT1 376ci / 6.2L Connect & Cruise Powertrain System
- Wet Sump Oil System
- 460 HP @ 6000 RPM
- 465 ft/lbs TQ @ 4600 RPM
- T56 Super Magnum Six Speed Transmission
LT1 376ci / 6.2L TECH SPECS: - Engine Type: Direct injection spark ignition Gen V Small-Block V8
- Displacement: 376ci (6.2L)
- Bore x Stroke: 4.065' x 3.622' (103.25 x 92mm)
- Block: Cast aluminum with 6-bolt nodular iron main bearing caps
- Crankshaft: Forged steel
- Connecting Rods: Forged powdered metal
- Pistons: Hypereutectic aluminum
- Compression Ratio: 11.5:1
- Camshaft Type: Billet steel roller
- Valve Lift: .561' intake/ .531' exhaust
- Camshaft Duration (@.050 in.): 242° intake / 244° exhaust
- Cylinder Heads: Aluminum, Rectangular Port Direct Injection
- Valve Size: 2.165' intake / 1.590' exhaust
- Rocker Arms: Investment-cast, roller trunnion
- Rocker Arm Ratio: 1.81:1
- Recommended Fuel: Premium
- Maximum Recommended RPM: 6600
- Reluctor Wheel: 58X
- Balanced: Internal INSTALLATION NOTES:
- Engines shipped with high-pressure direct-injection fuel pump installed
- Intended for pre-1976 street vehicles or any off-road vehicle
- 8-bolt crankshaft flange
- Not intended for marine applications
