225-B GM LS Black-Out Block Adapter Kit, #10 Threaded Ports, Replaces 13/16 in.-16 TPI Disposable Filter, Viton O-Ring

Name: 225-B GM LS Black-Out Block Adapter Kit, #10 Threaded Ports, Replaces 13/16 in.-16 TPI Disposable Filter, Viton O-Ring
Brand: CLEAR VIEW FILTRATION
SKU: 126-225-B
Price: 169.95 USD
Availability: InStock

^$169⁹⁵

1 left in stock

Ships Today

Lowest Price Guarantee

GM LS Oil Filter Black-Out Block Adapter Kit

#10 Threaded Ports

Replaces 13/16 in.-16 TPI Disposable Filter

Viton O-Ring

Clear View Filtration 225-B Features:

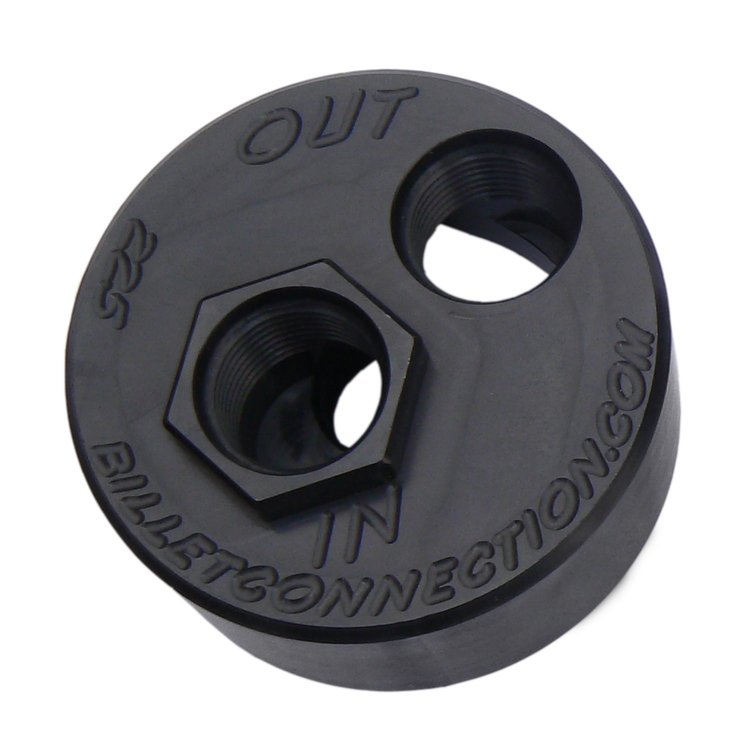

Early LS Oil Filter Adapters screw on the oil pan where the stock disposable filters usually goes. Oil Filter Adapter Ports are threaded for #10 O-Ring boss fittings. Oil Filter Adapters are engraved which Port is In and Out to help with install. Oil Filter adapters are plumbed with the Out Port of the adapter to the In Port of the remote filter. The Out Port of the remote filter goes to the In Port of the adapter. Also can work with Dry Sump setups by plugging the Outlet Port of the block adapter and just using the Inlet Port. When using See-Through Filters on LS motors use #12 O-Ring Boss to #10 AN fittings in the filter and #10 O-Ring Boss to #10 AN fittings in the adapter with #10 lines. Block adapters can fit more makes and models than listed. Check which disposable filter fits the application and compare thread and seal specs.

Finish: Black Anodized
Inlet Port Size: 10 AN O-ring
Outlet Port Size: 10 AN O-ring

Billet High-Flow Block Adapters

Clear View Filtration Block Adapters are installed where the OE disposable oil filter is located, providing a high-flow design for high-pressure and high-volume oil systems for today’s performance and race engines. These block adapters are machined out of 6061 billet aluminum and designed to not restrict the flow of oil. Available for popular domestic applications and in clear or black anodized finishes.

Part TypeOil Filter Adapter

Product LineClear View Filtration High-Flow Block Adapters

BrandCLEAR VIEW FILTRATION

Package Height1.85

Package Width3.8

Package Length4.65

Weight0.685 PG

Part CategoryPerformance Parts

Outlet Size10 AN O-ring

Inlet Size10 AN O-ring

Part FitmentSemi Universal

FinishBlack Anodized
