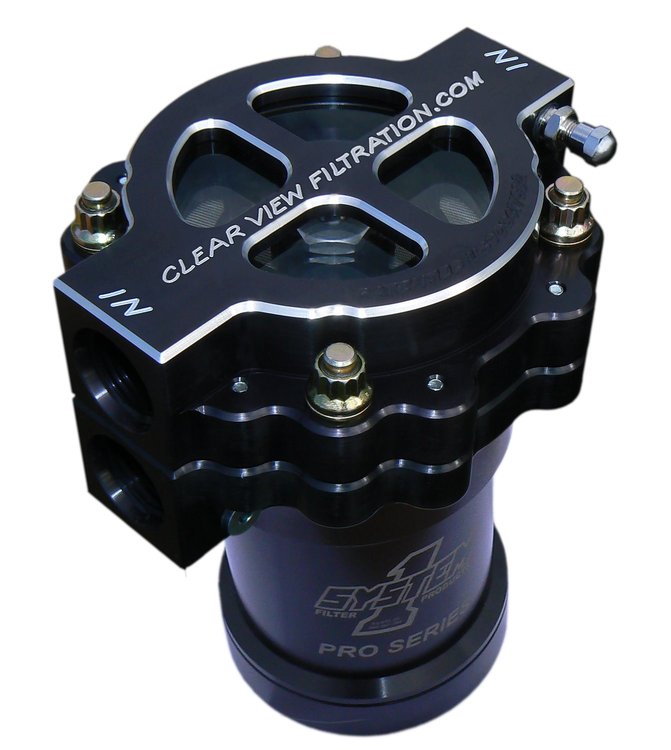

405-115-B 4 in. Screw-On/S1 Black-Out Filter, #12 Ports, 115 Micron Element, Accepts System 1, Up To 50 Weight Oil
InfoVehicle Info Needed
CLEAR VIEW FILTRATIONPART NUMBER: 126-405-115-B

405-115-B 4 in. Screw-On/S1 Black-Out Filter, #12 Ports, 115 Micron Element, Accepts System 1, Up To 50 Weight Oil

$55995
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

1000-4-B Black-Out Mighty Prime High Pressure Oil Priming System w/4 in. Bracket

CLEAR VIEW FILTRATION

1000-4-B Black-Out Mighty Prime High Pressure Oil Priming System w/4 in. Bracket

Part Number : 126-1000-4-B
$48495
WIX Racing Oil Filter Height: 6.21"

WIX RACING FILTERS

WIX Racing Oil Filter Height: 6.21"

Part Number : 283-51222R
$2899
AN Hose & Fitting Assembly Kit

JEGS

AN Hose & Fitting Assembly Kit

Part Number : 555-28010
$758$9.99
You Save$2.41
AN Port Adapter Fitting -12 AN port (1 1/16 in.-12 Thread) to -12 AN hose

JEGS

AN Port Adapter Fitting -12 AN port (1 1/16 in.-12 Thread) to -12 AN hose

Part Number : 555-110170
$1809$19.99
You Save$1.90

4 in. Filters
4 in. Screw-On/S1 Black-Out Filter
  • #12 Ports
  • 115 Micron Element
  • Accepts System 1
  • Up To 50 Weight Oil
  • Bracket Included

    Clear View Filtration 405-115-B Features:

    These 4 in. Screw-On Filters were designed to use a System 1 or disposable filter on the bottom. This is the same filter assembly as part # 400-115 except that filter has a receiver groove in the bottom which help prevents the disposable filter seal from blowing out. Part # 405-115 has a flat sealing surface on the bottom so a System 1 o-ring seal can seal correctly. Early finned style and System 1 filters which use 2 o-rings can only use the outside o-ring to seal. The inside one can not be used. Recommend using the Billet Pro Series System 1 which uses a single larger o-ring seal. Also needs System 1 Chevy threaded bushing when using a System 1.

    • Oil Filter Style: Inline
    • Finish: Black Anodized
    • Inlet Port Size: 12 AN O-ring
    • Outlet Port Size: 12 AN O-ring
    • Smallest Particle Filtered: 115 Microns
    • Filter Bypass Relief Valve: Yes
    • Anti-Drainback Valve: No
    • Filter Height: 3 in.
    • Filter Length: 6 in.
    • Thread Size For Screw On Filter: 13/16 in.-16 System 1
    • Quick and Easy Oil Filter Inspection

      Clear View Filtration See-Through Oil Filter Assemblies enable users to monitor the flow of oil through the filter visually, helping assess its condition. When oil is not actively circulating, it quickly drains from the assembly, revealing the filter element and trapped particles within seconds. This feature allows for a clear visual inspection of contaminants, helping users determine whether the particles are from normal wear and tear or indicate excessive wear of bearings and other engine components. Oil Filters are available in 4 or 6-inch sizes and clear or black anodized finishes.

    Part TypeOil Filter
    Product LineClear View Filtration See-Through Oil Filter Assemblies
    BrandCLEAR VIEW FILTRATION
    Package Height5.65
    Package Width9.25
    Package Length11.95
    Weight4.5 PG
    Part CategoryPerformance Parts
    Outlet Size12 AN O-ring
    Inlet Size12 AN O-ring
    Filter Length (In.)6
    Filter StyleInline
    Micron Rating115 Microns
    Filter Bypass Relief ValveYes
    Thread Size13/16 in.-16 System 1
    Part FitmentSemi Universal
    FinishBlack Anodized
    Filter Height (In.)3
    Anti-Drainback ValveNo
    Vendor Part Number405-115-B
    Package Qty1
    Package TypeEA
