410-60-B 4 in. Hi-Flow Black-Out Filter, #12 Ports, 60 Micron Element, For Small/Big Block Engines Running Up To 50 Weight Oil
InfoVehicle Info Needed
CLEAR VIEW FILTRATIONPART NUMBER: 126-410-60-B

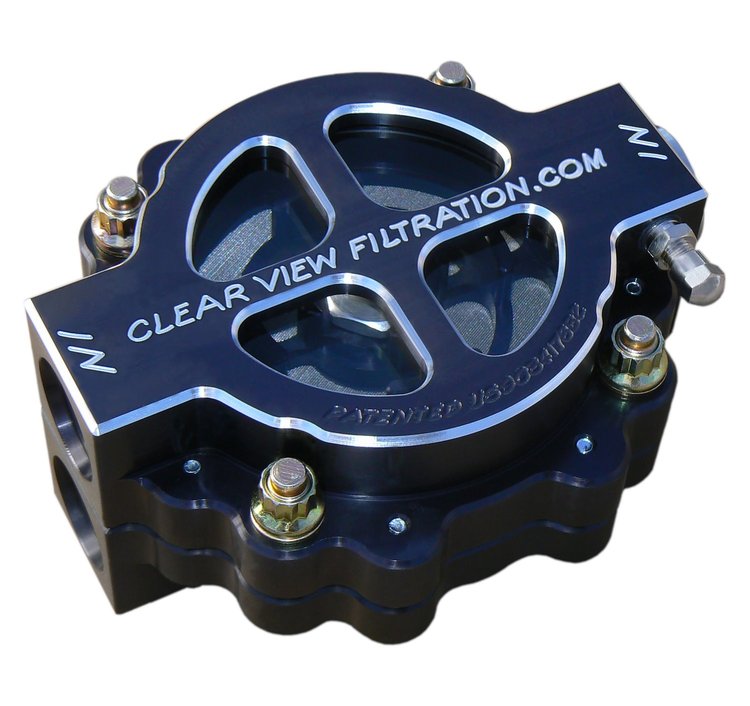

410-60-B 4 in. Hi-Flow Black-Out Filter, #12 Ports, 60 Micron Element, For Small/Big Block Engines Running Up To 50 Weight Oil

$54995
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

1000-4-B Black-Out Mighty Prime High Pressure Oil Priming System w/4 in. Bracket

CLEAR VIEW FILTRATION

1000-4-B Black-Out Mighty Prime High Pressure Oil Priming System w/4 in. Bracket

Part Number : 126-1000-4-B
$48495
AN Hose & Fitting Assembly Kit

JEGS

AN Hose & Fitting Assembly Kit

Part Number : 555-28010
$758$9.99
You Save$2.41
AN Port Adapter Fitting -12 AN port (1 1/16 in.-12 Thread) to -12 AN hose

JEGS

AN Port Adapter Fitting -12 AN port (1 1/16 in.-12 Thread) to -12 AN hose

Part Number : 555-110170
$1809$19.99
You Save$1.90
Drain Pan [7 Quart]

JEGS

Drain Pan [7 Quart]

Part Number : 555-W4070
$499$5.99
You Save$1.00

4 in. Filters
4 in. Hi-Flow Black-Out Filter
  • #12 Ports
  • 60 Micron Element
  • For Small/Big Block Engines Running Up To 50 Weight Oil
  • Bracket Included

    Clear View Filtration 410-60-B Features:

    4 in. Hi-Flow Filter Assemblies allow visual inspection of filtered particles captured on the filter screen within seconds, using a shot of air and without draining or leaking any fluid, and without unbolting or loosening any fasteners or fittings. Filters are for use with most BB and SB engine combinations and applications where the user does not want to run a disposable filter. Not recommended for all aluminum Hemi combinations with external oil pumps. Filter works where spaceis limited and being light weight is ideal. Filter has 2 Inlet & 1 Outlet #12 Ports. Filters are Black anodized for durability and easy maintenance.

    • Oil Filter Style: Inline
    • Finish: Black Anodized
    • Inlet Port Size: 12 AN O-ring
    • Outlet Port Size: 12 AN O-ring
    • Smallest Particle Filtered: 60 Microns
    • Filter Bypass Relief Valve: Yes
    • Anti-Drainback Valve: No
    • Filter Height: 3 in.
    • Filter Length: 6 in.
    • Quick and Easy Oil Filter Inspection

      Clear View Filtration See-Through Oil Filter Assemblies enable users to monitor the flow of oil through the filter visually, helping assess its condition. When oil is not actively circulating, it quickly drains from the assembly, revealing the filter element and trapped particles within seconds. This feature allows for a clear visual inspection of contaminants, helping users determine whether the particles are from normal wear and tear or indicate excessive wear of bearings and other engine components. Oil Filters are available in 4 or 6-inch sizes and clear or black anodized finishes.

    Part TypeOil Filter
    Product LineClear View Filtration See-Through Oil Filter Assemblies
    BrandCLEAR VIEW FILTRATION
    Package Height5.4
    Package Width9.3
    Package Length11.8
    Weight4.665 PG
    Part CategoryPerformance Parts
    Outlet Size12 AN O-ring
    Inlet Size12 AN O-ring
    Filter Length (In.)6
    Filter StyleInline
    Micron Rating60 Microns
    Filter Bypass Relief ValveYes
    Part FitmentSemi Universal
    FinishBlack Anodized
    Filter Height (In.)3
    Anti-Drainback ValveNo
    Vendor Part Number410-60-B
    Package Qty1
    Package TypeEA
