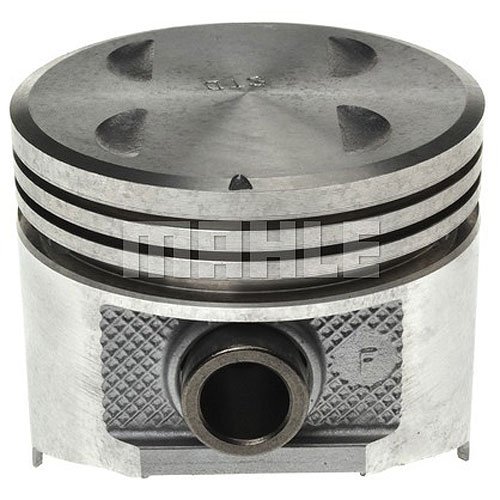

Piston Set 1968-2001 Small Block Chrysler V8 318ci (5.2L) with 3.94" Bore (+.030")
InfoVehicle Info Needed
CLEVITE MAHLEPART NUMBER: 695-2242007030

Piston Set 1968-2001 Small Block Chrysler V8 318ci (5.2L) with 3.94" Bore (+.030")

$19499
ShippingShips on 10/14/2026
Lowest PriceLowest Price Guarantee

Chrysler
    Piston Set
  • 1968-2001
  • Small Block Chrysler V8 318ci (5.2L)
  • 3.94'' Bore (+.030")
  • Flat Top with 4-Valve Reliefs
  • Rings Not Included

    Technical Specs:
  • Material: Aluminum
  • Bore: 3.94' (100.07mm)
  • Compression Height: 1.741"
  • Compression Ring Groove: 0.078" (5/64')
  • Second Ring Groove: 0.078" (5/64')
  • Oil Ring Groove Width: 0.188" (3/16')
  • Full Length: 3.43" (87.122mm)
  • Pin Size: 0.984" O.D. (24.999mm)
  • Pin Type: Press Fit
  • Skirt Type: Non-Coated
  • Piston Skirt Clearance: 0.002"
  • Notes: Use Piston Ring p/n 695-40069CP.030
  • Year Range and applicable VIN code: 1998-2000 "Y" ; 1999-2000 "T" ; 1998-2000 "2"
Part TypePiston
BrandCLEVITE MAHLE
Package Height4.2
Package Width9.6
Package Length18.6
Weight15.11 PG
Part CategoryReplacement Parts
Vendor Part Number2242007030
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
