Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2242040

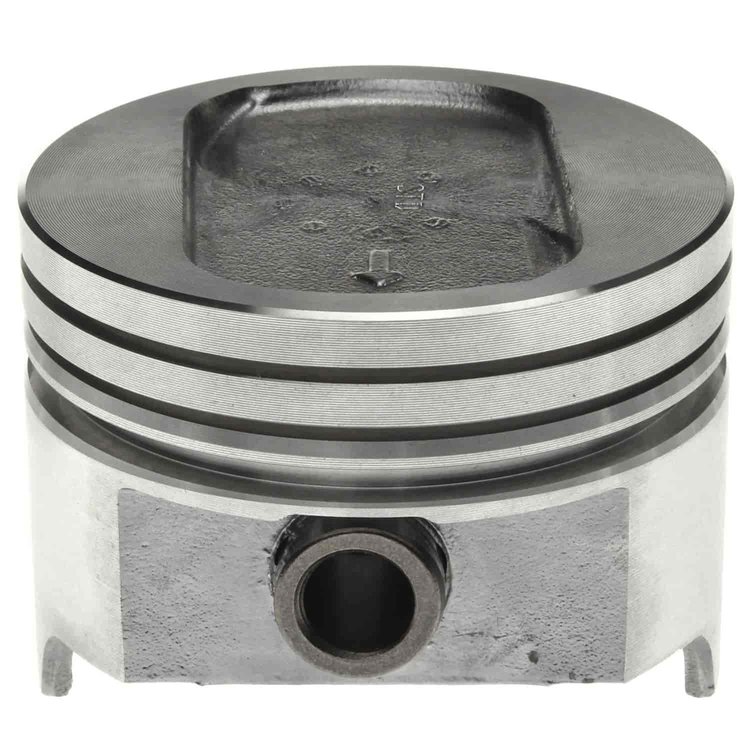

Piston Set 1980-1992 Ford 351W (5.8L) with 4.00" Bore (Standard)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford
- Piston Set
- 1980-1992
- Ford 351W (5.8L)
- 4.00" Bore (Standard)
- 11.5cc Dish with 2 Valve Reliefs
- Set of 8
- Rings Not Included
Technical Specs: - Material: Aluminum
- Bore: 4.00' (101.6mm)
- Piston Top: Rectangular Recessed Head w/2 Valve Reliefs; 0.105" Recess Depth; 11.5cc Dish
- Compression Height: 1.752"
- Compression Ring Groove: 5/64"
- Second Ring Groove: 5/64"
- Oil Ring Groove Width: 3/16"
- Full Length: 3.35" (85.9mm)
- Pin Size: 0.912" O.D. (23.17mm)
- Pin Type: Offset Location
- Skirt Type: Non-Coated
- Piston Skirt Clearance: 0.002"
- Notes: Use Piston Ring p/n 695-40564CP (Rings Not Included)
- Year Range and applicable VIN code: CAR - 1980-91 "G", 1969-79 "H", 1971-74 "Q", 1971-72 "R", 1969-71 "M"; TRUCK - 1969-71 "M", 1972-74 "Q", 1969-79 "H", 1984-93 "H", 1980-85 "G", 1993 "R"
Part TypePiston
BrandCLEVITE MAHLE
Package Height3.1
Package Width4.0
Package Length4.1
Weight1.7 PG
Part CategoryReplacement Parts
Vendor Part Number2242040
Package Qty1
Package TypeEA
