Vehicle Info NeededCLEVITE MAHLEPART NUMBER: 695-2243443010

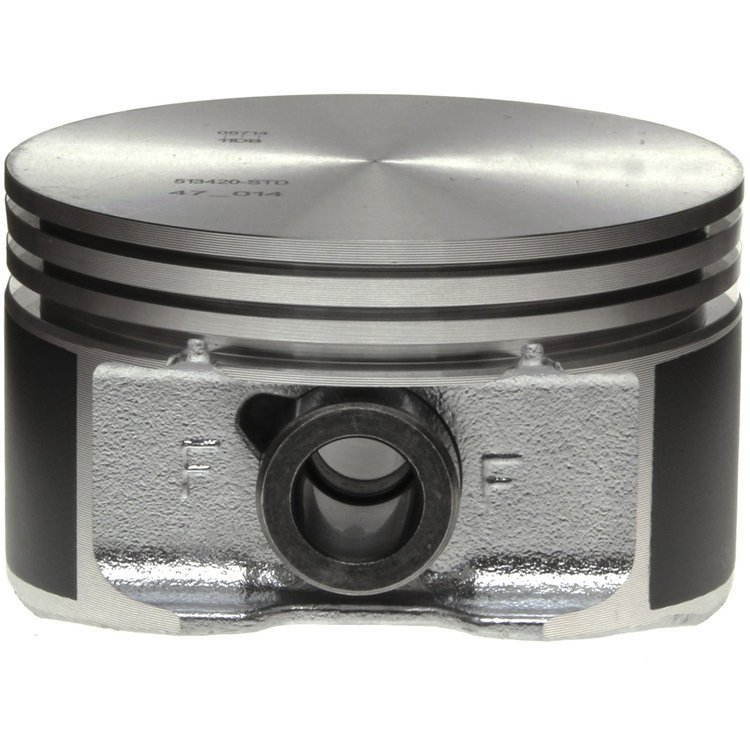

Piston 1999-2007 Chrysler V8 4.7L SOHC with 3.671" Bore (+.010")
$23499
Ships on 09/16/2026
Lowest Price GuaranteeChrysler
- Piston
- 1999-2007
- Chrysler V8 4.7L SOHC
- 3.671" Bore (+.010")
- Flat Top
- Coated Skirt
- 1/pkg
- Rings Not Included
Technical Specs: - Material: Aluminum
- Bore: 3.671' (93.24mm)
- Compression Height: 1.252"
- Compression Ring Groove: 1.50mm
- Second Ring Groove: 1.50mm
- Oil Ring Groove Width: 3.00mm
- Full Length: N/A
- Pin Size: 0.945" O.D. (24.0mm)
- Pin Type: N/A
- Skirt Type: Coated
- Piston Skirt Clearance: 0.002"
- Notes: Use Piston Ring p/n 695-41699.010 (Rings Not Included); Casting Number - 93L27
- Year Range and applicable VIN code: 2000-2004 "N"
Part TypePiston
BrandCLEVITE MAHLE
Package Height5.6
Package Width5.6
Package Length6.2
Weight1.3 PG
Part CategoryReplacement Parts
Vendor Part Number2243443010
Package Qty1
Package TypeEA
