Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2243443WR020

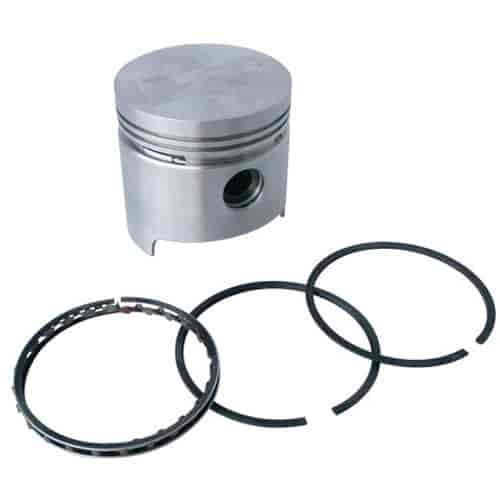

Piston and Rings Set 1999-2007 Chrysler V8 4.7L SOHC with 3.681" Bore (+.020")
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chrysler
- Piston and Rings Set
- 1999-2007
- Chrysler V8 4.7L SOHC
- 3.681" Bore (+.020")
- Flat Top
- Coated Skirt
- Set of 8
Technical Specs: - Material: Aluminum
- Bore: 3.681' (93.47mm)
- Compression Height: 1.252"
- Compression Ring Groove: 1.50mm
- Second Ring Groove: 1.50mm
- Oil Ring Groove Width: 3.00mm
- Full Length: N/A
- Pin Size: 0.945" O.D. (24.0mm)
- Pin Type: N/A
- Skirt Type: Coated
- Piston Skirt Clearance: 0.002"
- Notes: Piston Rings Included; Casting Number - 93L27
- Year Range and applicable VIN code: 2000-2004 "N"
Part TypePiston
BrandCLEVITE MAHLE
Package Height5.3
Package Width5.7
Package Length5.7
Weight1.39 PG
Part CategoryReplacement Parts
Vendor Part Number2243443WR020
Package Qty1
Package TypeEA
