Vehicle Info NeededCLEVITE MAHLEPART NUMBER: 695-2243449

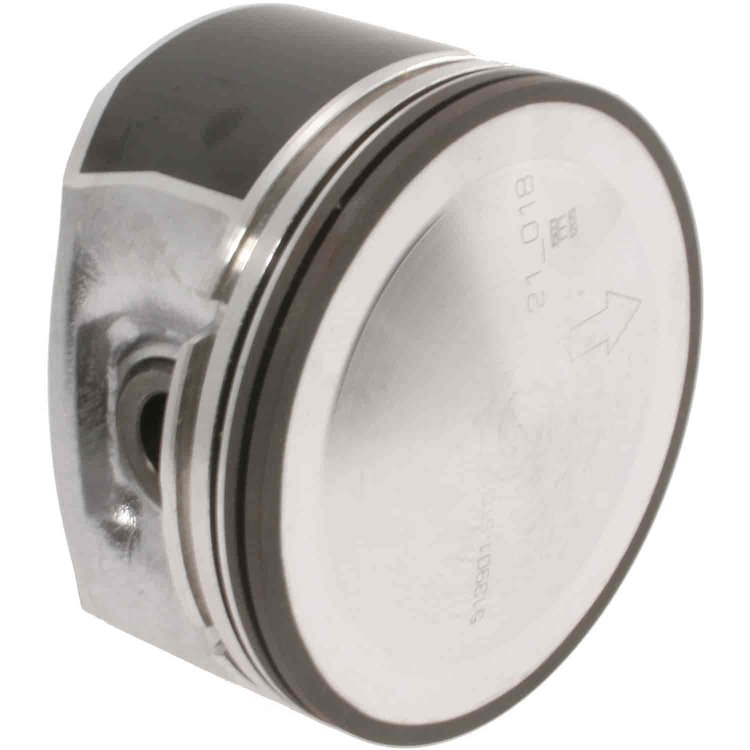

Piston Set 2003-2008 Chrysler HEMI V8 5.7L with 3.92" Bore (Standard)
$43899
Ships on 09/15/2026
Lowest Price GuaranteeChrysler
- Piston Set
- 2003-2008
- Chrysler HEMI V8 5.7L
- 3.92" Bore (Standard)
- Dome Top, 0.157" Height
- Coated Skirt
- Reduced Compression Height (.010")
- Rings Not Included
Technical Specs: - Material: Aluminum
- Bore: 3.917' (99.57mm)
- Compression Height: 1.2106" (This is a .010" reduced Compression Height.)
- Compression Ring Groove: 1.50mm
- Second Ring Groove: 1.50mm
- Oil Ring Groove Width: 3.00mm
- Full Length: N/A
- Pin Size: 0.945" O.D. (24.0mm)
- Pin Type: N/A
- Skirt Type: Coated
- Piston Skirt Clearance: 0.002"
- Notes: Use Piston Ring p/n 695-41904CP (Rings Not Included); Casting Number - 99L10A1
- Year Range and applicable VIN code: 2003-2004 "D"
Part TypePiston
BrandCLEVITE MAHLE
Package Height4.1
Package Width9.7
Package Length18.6
Weight11.05 PG
Part CategoryReplacement Parts
Vendor Part Number2243449
Package Qty1
Package TypeEA
