Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2243454WR030

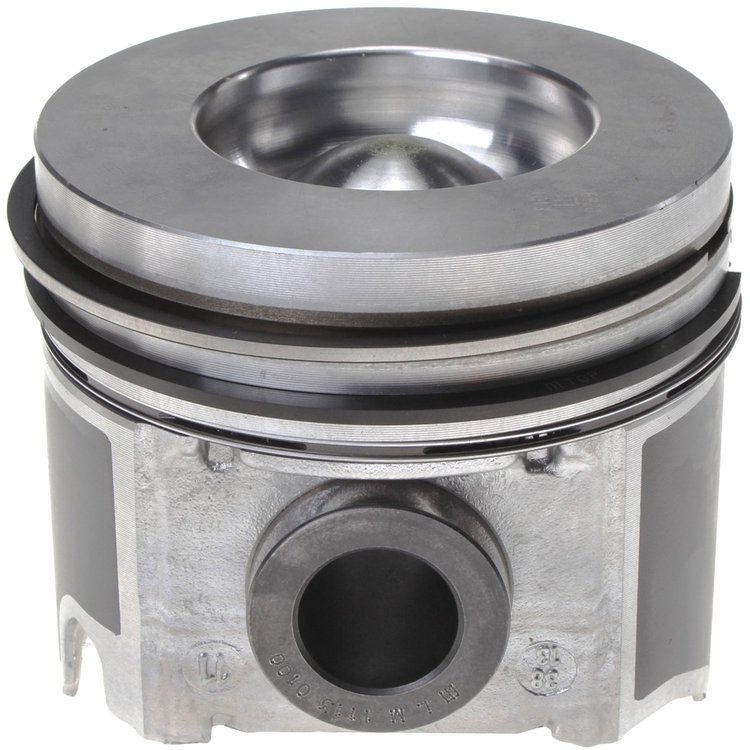

Piston and Rings Set 2003 Ford/Navistar Powerstroke Diesel V8 6.0L with 3.77" Bore (+.030")
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford
- Piston and Rings Set
- 2003
- Ford/Navistar Powerstroke Diesel V8 6.0L
- 3.77" Bore (+.030")
- Set of 8
Technical Specs: - Material: Aluminum
- Bore: 3.77'
- Compression Height: 2.059"
- Compression Ring Groove: 2.30mm
- Second Ring Groove: 2.00mm
- Oil Ring Groove Width: 3.50mm
- Full Length: 85.82mm
- Pin Size: 1.339" O.D. (34.0mm)
- Pin Type: Floating; Center Location
- Skirt Type: Coated
- Piston Skirt Clearance: 0.004"
- Notes: Piston Rings Included - Keystone Top Ring; Casting Number - 95L102
- For Serial Number 1611 & Up 2003 Only
- Flat Top w/ 0.646" Recess Depth
Quality Diesel Pistons from One of the Largest Original Equipment Piston Manufacturers in the World
Mahle Original Diesel Pistons are designed to meet or exceed the original manufacturer's specifications to reduce engine noise, piston and cylinder wear, and improve oil control.
Part TypePiston
Product LineMAHLE Original Diesel Pistons
BrandCLEVITE MAHLE
Package Height4.37
Package Width9.37
Package Length18.62
Weight2.45 PG
Part CategoryReplacement Parts
Vendor Part Number2243454WR030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
