Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2243497

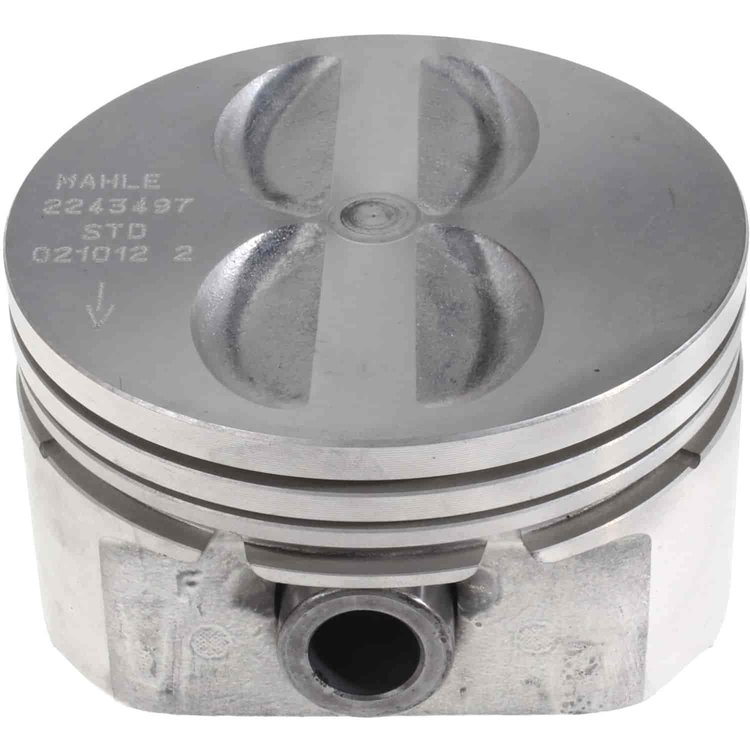

Piston Set 1990-1996 Chevy Corvette V8 L98/LT1 350ci (5.7L) with 4.00" Bore (Standard)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
- Piston Set
- 1990-1996
- Chevy Corvette V8 L98/LT1 350ci (5.7L)
- 4.000'' Bore (Standard)
- Flat Top with 4 Valve Reliefs
- Set of 8
- Rings Not Included
Technical Specs: - Material: Aluminum
- Bore: 4.00' (101.6mm)
- Piston Top: Flat Top w/4 Valve Reliefs
- Compression Height: 1.559"
- Compression Ring Groove: 2.00mm
- Second Ring Groove: 1.50mm
- Oil Ring Groove Width: 4.00mm
- Full Length: N/A
- Pin Size: 0.927" O.D. (23.553mm)
- Pin Type: Offset Location
- Skirt Type: Non-Coated
- Piston Skirt Clearance: 0.001"
- Notes: Use Piston Ring p/n 695-41616CP (Rings Not Included); Casting Number - 101V13
- Year Range and applicable VIN code: CAR - 1990-1991 "8", 1992-1996 "P"
Part TypePiston
BrandCLEVITE MAHLE
Package Height2.7
Package Width4.5
Package Length9.2
Weight1.54 PG
Part CategoryReplacement Parts
Vendor Part Number2243497
Package Qty1
Package TypeEA
