Vehicle Info NeededCLEVITE MAHLEPART NUMBER: 695-2243497020

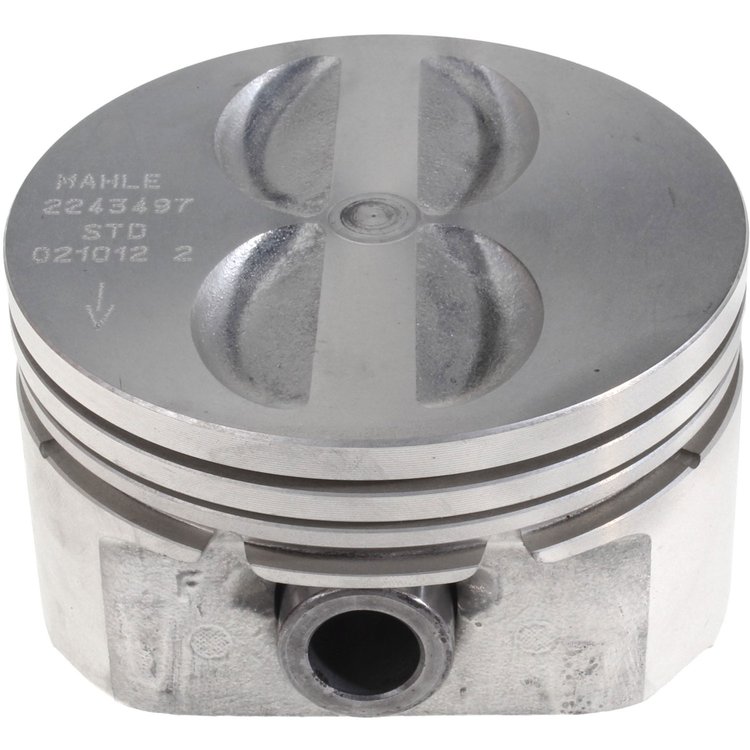

Piston Set 1990-1996 Chevy Corvette V8 L98/LT1 350ci (5.7L) with 4.020" Bore (+.020")
$15699
Ships on 09/18/2026
Lowest Price GuaranteeGM
- Piston Set
- 1990-1996
- Chevy Corvette V8 L98/LT1 350ci (5.7L)
- 4.020'' Bore (+.020")
- Flat Top with 4 Valve Reliefs
- Rings Not Included
Technical Specs: - Material: Aluminum
- Bore: 4.020' (102.1mm)
- Piston Top: Flat Top w/4 Valve Reliefs
- Compression Height: 1.559"
- Compression Ring Groove: 2.00mm
- Second Ring Groove: 1.50mm
- Oil Ring Groove Width: 4.00mm
- Full Length: N/A
- Pin Size: 0.927" O.D. (23.553mm)
- Pin Type: Offset Location; Fixed
- Skirt Type: Non-Coated
- Piston Skirt Clearance: 0.001"
- Notes: Use Piston Ring p/n 695-41616CP.020 (Rings Not Included); Casting Number - 101V13
- Year Range and applicable VIN code: CAR - 1990-1991 "8", 1992-1996 "P"
Part TypePiston
BrandCLEVITE MAHLE
Package Height2.6
Package Width4.5
Package Length4.5
Weight1.52 PG
Part CategoryReplacement Parts
Vendor Part Number2243497020
Package Qty1
Package TypeEA
