![Ford/Navistar Powerstroke Diesel V8 6.0L Ceramic Coated Piston Set [Standard Compression]](https://www.jegs.com/images/mini_750/600/695/695-2243503c030.jpg)
Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2243503C030

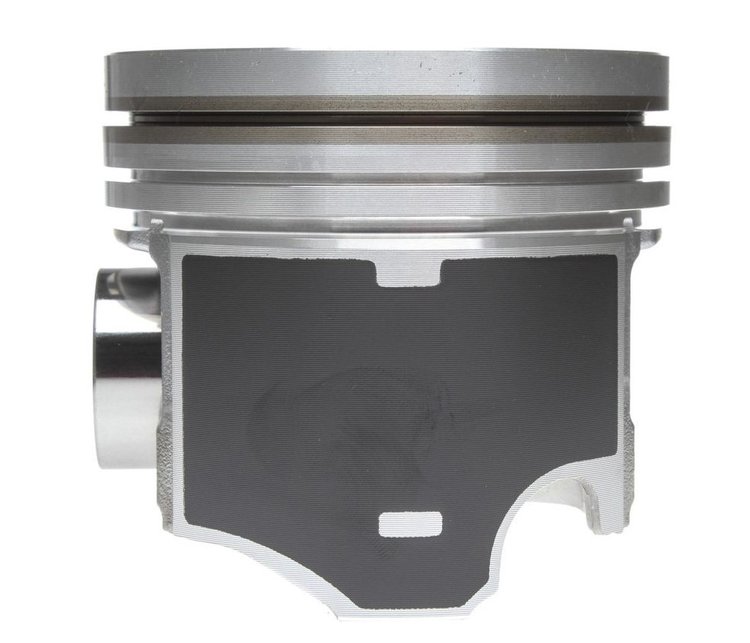

Ford/Navistar Powerstroke Diesel V8 6.0L Ceramic Coated Piston Set [Standard Compression]
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford

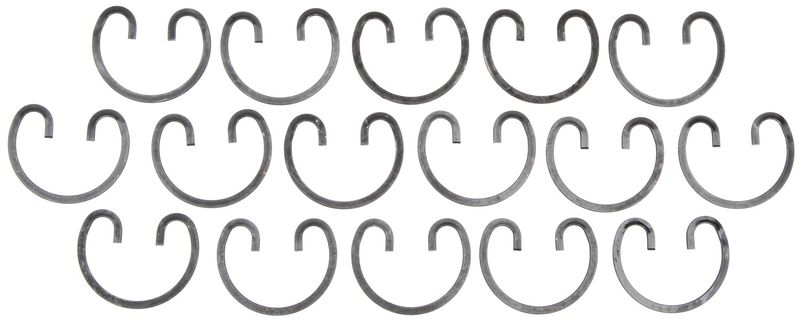

Piston Set2003-2010 Ford/Navistar 6.0L Powerstroke Diesel V8 Ceramic Coated Top Coated Skirt Standard Compression Includes Wrist Pins and Locks Rings Sold Separately Set of 8
- 3.770 in. Bore (+.030 in.)
Clevite MAHLE Ceramic Coated Piston Set 2243503C030 Specifications:
- Bore: 3.770 in. (.030 in. oversize)
- Material: Aluminum w/ceramic coated top and coated skirt
- Piston Head Type: Bowl (standard compression)
- Top Ring Groove: 2.30 mm
- Second Ring Groove: 2.00 mm
- Oil Ring Groove: 3.44 mm
- Wrist Pin Diameter: 34.01 mm
- Requires Clevite MAHLE Plasma-Moly Ring Set 41940.030 (sold separately)
Part TypePiston
BrandCLEVITE MAHLE
Part CategoryReplacement Parts
Wrist Pin StyleFloating
QuantitySet of 8
Piston MaterialAluminum
Pin DiameterOEM
Rod LengthOEM
Piston StyleDish, with no valve reliefs
Bore3.770 in.
Package Qty1
Package TypeEA
