![Ford/Navistar Powerstroke Diesel V8 6.0L Ceramic Coated Piston Set [Standard Compression]](https://www.jegs.com/images/mini_750/600/695/695-2243503c040.jpg)
Vehicle Info NeededCLEVITE MAHLEPART NUMBER: 695-2243503C040

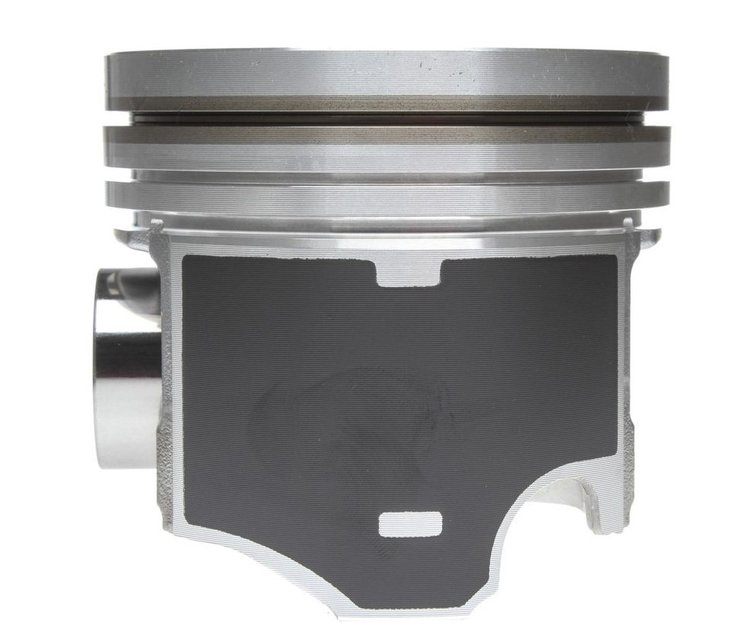

Ford/Navistar Powerstroke Diesel V8 6.0L Ceramic Coated Piston Set [Standard Compression]
$93299
Ships on 09/16/2026
Lowest Price GuaranteeFord
Piston Set2003-2010 Ford/Navistar 6.0L Powerstroke Diesel V8 Ceramic Coated Top Coated Skirt Standard Compression Includes Wrist Pins and Locks Rings Sold Separately Set of 8
- 3.780 in. Bore (+.040 in.)
Clevite MAHLE Ceramic Coated Piston Set 2243503C040 Specifications:
- Bore: 3.80 in. (.040 in. oversize)
- Material: Aluminum w/ceramic coated top and coated skirt
- Piston Head Type: Bowl (standard compression)
- Top Ring Groove: 2.30 mm
- Second Ring Groove: 2.00 mm
- Oil Ring Groove: 3.44 mm
- Wrist Pin Diameter: 34.01 mm
- Requires Clevite MAHLE Plasma-Moly Ring Set 41940.040 (sold separately)
Quality Diesel Pistons from One of the Largest Original Equipment Piston Manufacturers in the World
Mahle Original Diesel Pistons are designed to meet or exceed the original manufacturer's specifications to reduce engine noise, piston and cylinder wear, and improve oil control.
Part TypePiston
Product LineMAHLE Original Diesel Pistons
BrandCLEVITE MAHLE
Part CategoryReplacement Parts
Wrist Pin StyleFloating
QuantitySet of 8
Piston MaterialAluminum
Pin DiameterOEM
Rod LengthOEM
Piston StyleDish, with no valve reliefs
Bore3.78 in (96.012 mm)
Package Qty1
Package TypeEA
