Vehicle Info NeededCLEVITE MAHLEPART NUMBER: 695-2243503WR030

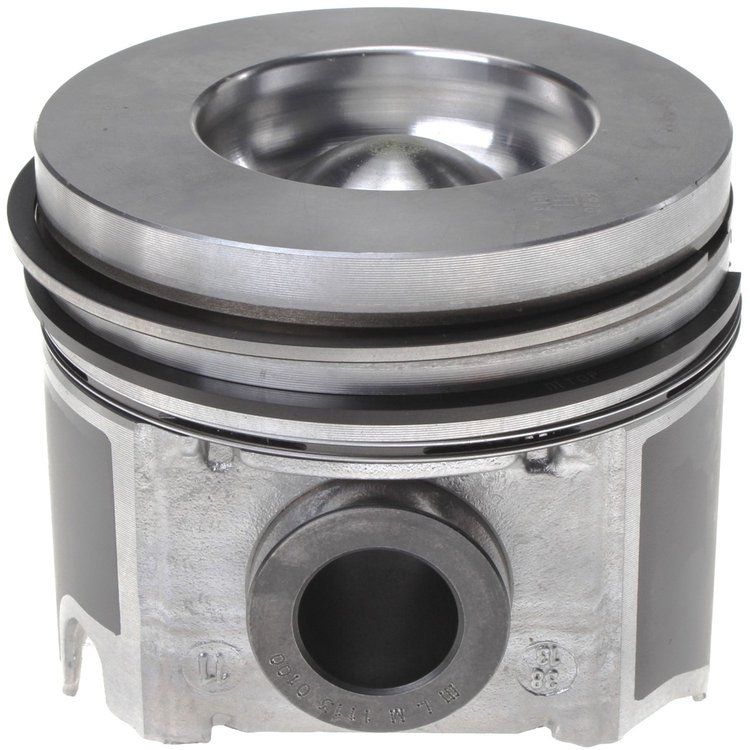

Piston and Ring Set 2003-2010 Ford/Navistar Powerstroke Diesel V8 6.0L with 3.77" Bore (+.030")
$74299
Ships on 10/13/2026
Lowest Price GuaranteeFord
- Piston and Ring Set
- 2003-2010
- Ford/Navistar Powerstroke Diesel V8 6.0L
- 3.77" Bore (+.030")
- 1/pkg
Technical Specs: - Material: Aluminum
- Bore: 3.77' (95.76mm)
- Compression Height: 2.059"
- Compression Ring Groove: 2.30mm
- Second Ring Groove: 2.00mm
- Oil Ring Groove Width: 3.50mm
- Full Length: 85.82mm
- Pin Size: 1.339" O.D. (34.0mm)
- Pin Type: Floating; Center Location
- Skirt Type: Coated
- Piston Skirt Clearance: 0.004"
- Notes: Piston Rings Included - Keystone Top Ring; Casting Number - 95L102A1
- Year Range and applicable VIN code: TRUCK - 2004-2006 "P"
- Flat Top w/ 31.89cc Combustion Chamber, 0.665" Deep Dish
Part TypePiston
BrandCLEVITE MAHLE
Package Height4.2
Package Width5.3
Package Length10.2
Weight2.46 PG
Part CategoryReplacement Parts
Vendor Part Number2243503WR030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
