Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2243503WR040

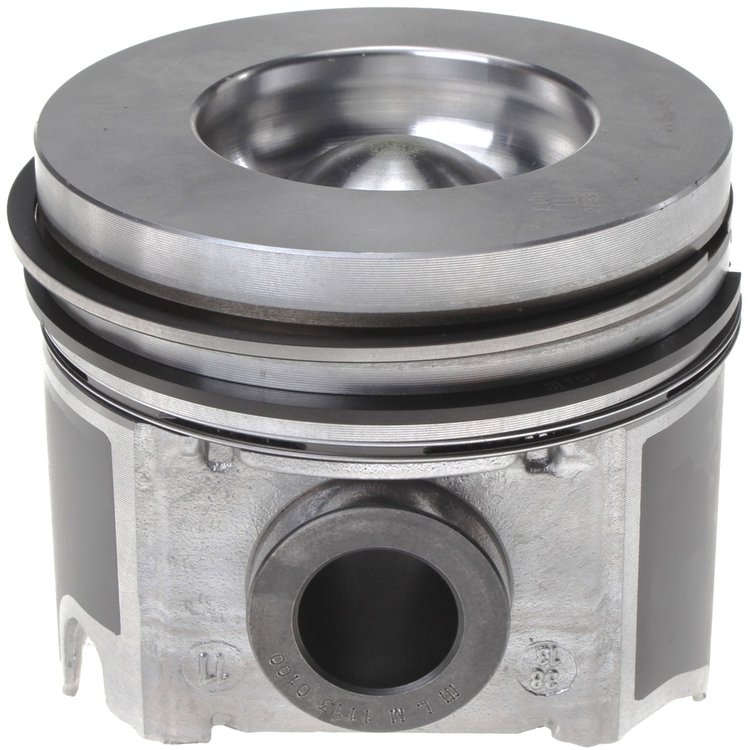

Piston and Ring Set 2003-2010 Ford/Navistar Powerstroke Diesel V8 6.0L with 3.78" Bore (+.040")
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford
- Piston and Ring Set
- 2003-2010
- Ford/Navistar Powerstroke Diesel V8 6.0L
- 3.78" Bore (+.040")
- 1/pkg
Technical Specs: - Material: Aluminum
- Bore: 3.78' (96.01mm)
- Compression Height: 2.059"
- Compression Ring Groove: 2.30mm
- Second Ring Groove: 2.00mm
- Oil Ring Groove Width: 3.50mm
- Full Length: 85.82mm
- Pin Size: 1.339" O.D. (34.0mm)
- Pin Type: Floating; Center Location
- Skirt Type: Coated
- Piston Skirt Clearance: 0.004"
- Notes: Piston Rings Included - Keystone Top Ring; Casting Number - 95L102A1
- Year Range and applicable VIN code: TRUCK - 2004-2006 "P"
- Flat Top w/ 31.89cc Combustion Chamber, 0.665" Deep Dish
Quality Diesel Pistons from One of the Largest Original Equipment Piston Manufacturers in the World
Mahle Original Diesel Pistons are designed to meet or exceed the original manufacturer's specifications to reduce engine noise, piston and cylinder wear, and improve oil control.
Part TypePiston
Product LineMAHLE Original Diesel Pistons
BrandCLEVITE MAHLE
Package Height4.3
Package Width4.7
Package Length5.0
Weight2.52 PG
Part CategoryReplacement Parts
Vendor Part Number2243503WR040
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
