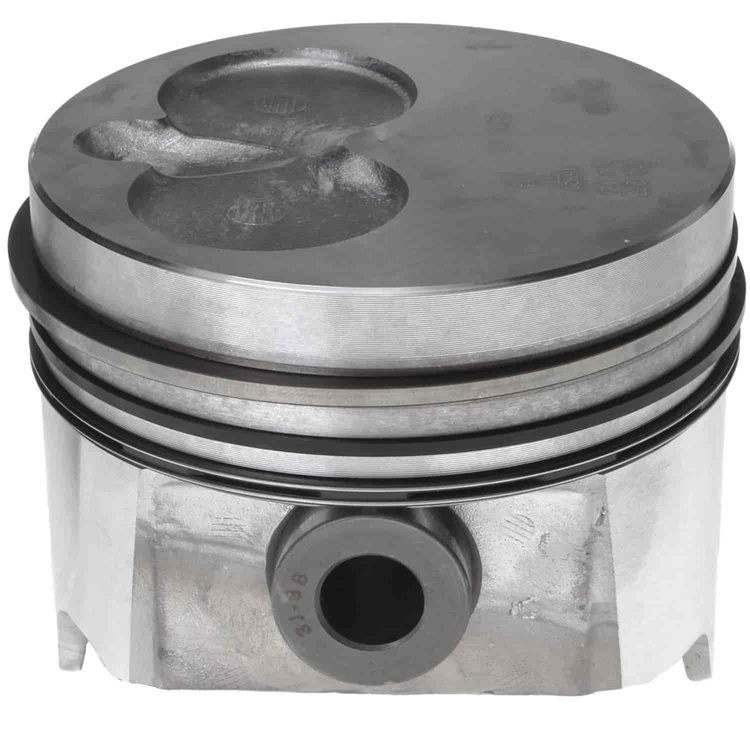

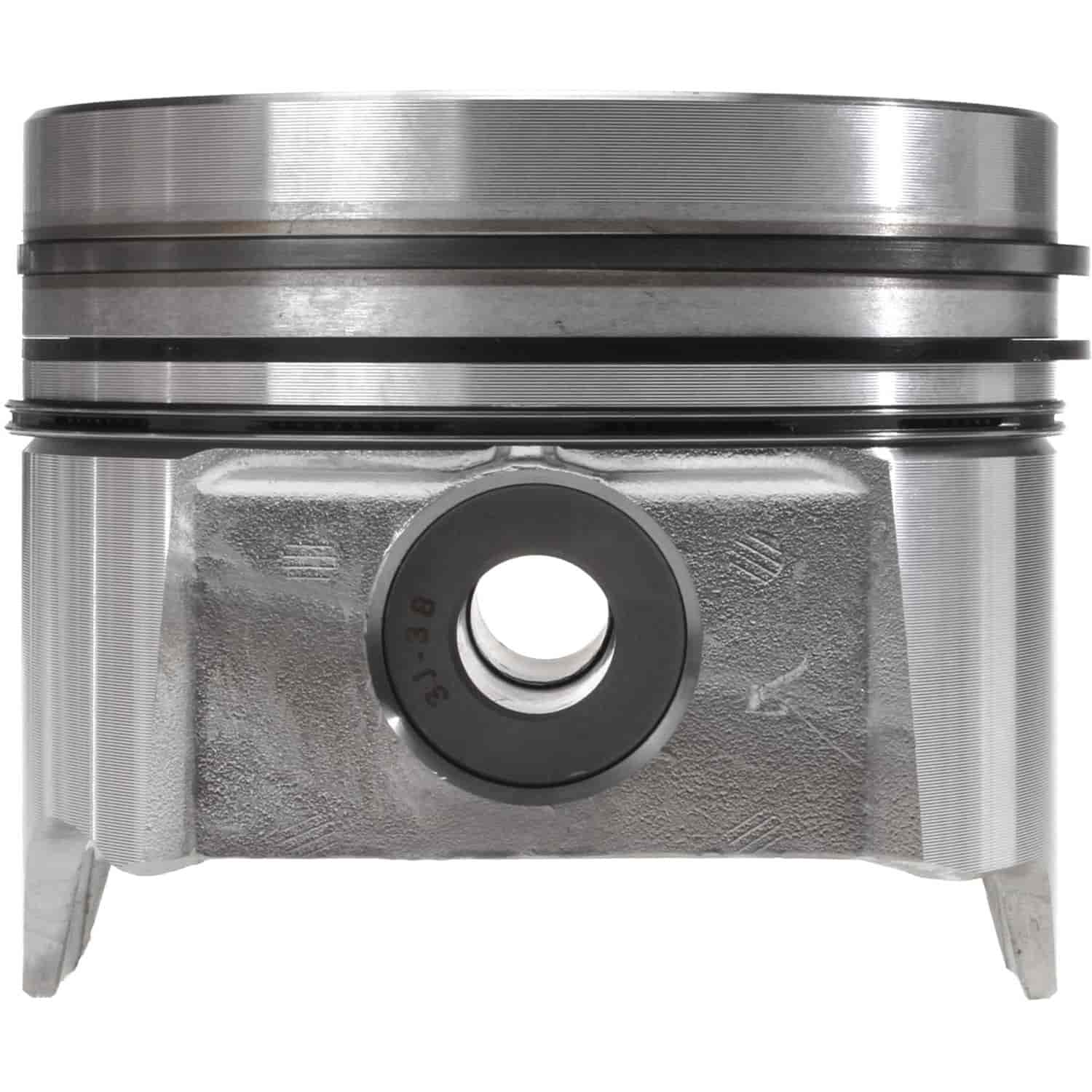

Piston Set 1988-1994 Ford/Navistar Powerstroke Diesel V8 7.3L with 4.110" Bore (Standard)
InfoVehicle Info Needed
CLEVITE MAHLEPART NUMBER: 695-2243508WR

Piston Set 1988-1994 Ford/Navistar Powerstroke Diesel V8 7.3L with 4.110" Bore (Standard)

$86899
ShippingShips on 12/03/2026
Lowest PriceLowest Price Guarantee

Ford
Piston Set
  • 1988-1994
  • Ford/Navistar Powerstroke Diesel V8 7.3L
  • 4.110" Bore (Standard)
  • Ricardo Bowl Head

     Technical Specs:

    • Material: Aluminum
    • Bore: 4.11' (104.4mm)
    • Compression Height: 1.950"
    • Compression Ring Groove: 3.00mm
    • Second Ring Groove: 2.00mm
    • Oil Ring Groove Width: 3.50mm
    • Full Length: N/A
    • Pin Size: 1.11" O.D. (28.204mm)
    • Pin Type: Floating
    • Skirt Type: Non-Coated
    • Piston Skirt Clearance: 0.005"
    • Notes: Casting Change 104L22 was Superseded by 104L32 Rings Will Not Interchange; Casting Number - 104L32
    • Year Range and applicable VIN code: TRUCK - 1988-1994 "M"
    • Premium Piston Ring Set 695-14417N

      • Quality Diesel Pistons from One of the Largest Original Equipment Piston Manufacturers in the World

      Mahle Original Diesel Pistons are designed to meet or exceed the original manufacturer's specifications to reduce engine noise, piston and cylinder wear, and improve oil control.



    Part TypePiston
    Product LineMAHLE Original Diesel Pistons
    BrandCLEVITE MAHLE
    Package Height5.3
    Package Width5.5
    Package Length5.9
    Weight2.91 PG
    Part CategoryReplacement Parts
    Vendor Part Number2243508WR
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
