Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2243508WR030

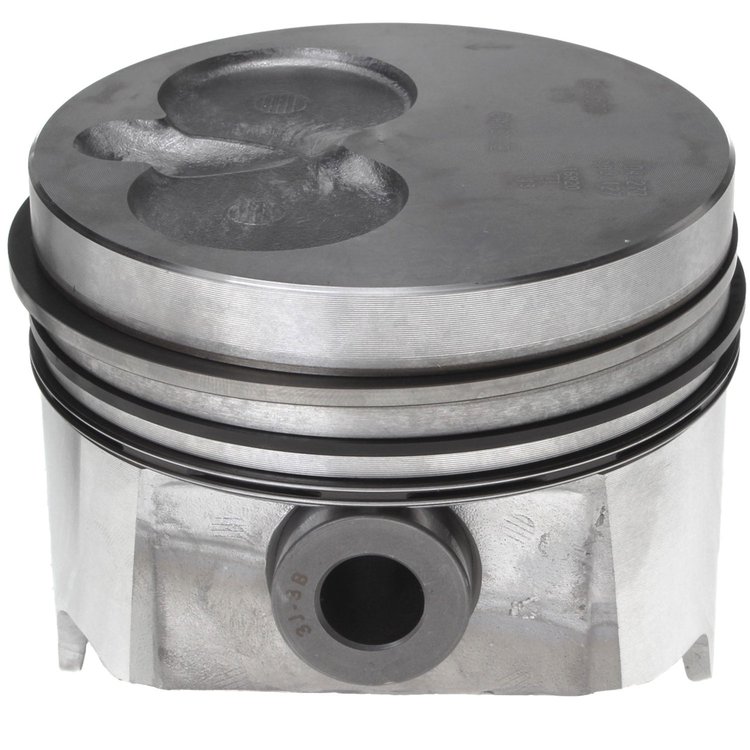

Piston and Rings Set 1988-1994 Ford PowerStroke Diesel V8 7.3L with 4.140" Bore (+.030")
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford
- Piston and Rings Set
- 1988-1994
- Ford PowerStroke Diesel V8 7.3L
- 4.140'' Bore (+.030")
- Ricardo Bowl Head
- Set of 8
Technical Specs: - Material: Aluminum
- Bore: 4.14'
- Compression Height: 1.950"
- Compression Ring Groove: 3.00mm
- Second Ring Groove: 2.00mm
- Oil Ring Groove Width: 3.50mm
- Full Length: N/A
- Pin Size: 1.11" O.D. (28.204mm)
- Pin Type: Floating
- Skirt Type: Non-Coated
- Piston Skirt Clearance: 0.005"
- Notes: Casting Change 104L22 was Superseded by 104L32 Rings Will Not Interchange; Casting Number - 104L32
- Year Range and applicable VIN code: TRUCK - 1988-1994 "M"
- Premium Piston Ring Set 695-14417N
Quality Diesel Pistons from One of the Largest Original Equipment Piston Manufacturers in the World
Mahle Original Diesel Pistons are designed to meet or exceed the original manufacturer's specifications to reduce engine noise, piston and cylinder wear, and improve oil control.
Part TypePiston
Product LineMAHLE Original Diesel Pistons
BrandCLEVITE MAHLE
Package Height4.37
Package Width9.37
Package Length18.62
Weight2.63 PG
Part CategoryReplacement Parts
Vendor Part Number2243508WR030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
