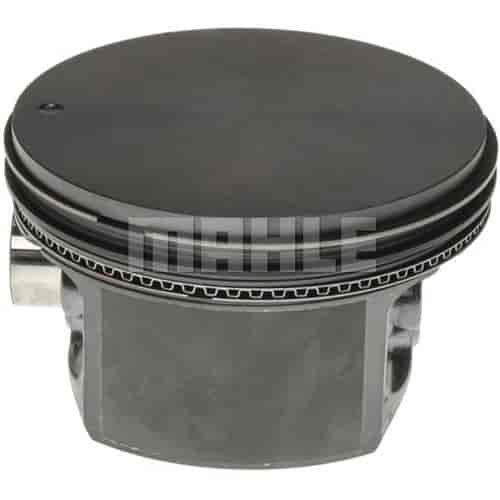

Piston With Rings 1997-2004 Chevy LS V8 5.7L (LS1) with 3.898"/99mm Bore (Standard)

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

1997-2004
Chevy LS V8 5.7L (LS1)
3.898"/99mm Bore (Standard)
Coated Skirt
1/pkg

Technical Specs:
Material: Aluminum
Bore: 3.898' (99.0mm)
Compression Height: 1.3385"
Compression Ring Groove: 1.50mm
Second Ring Groove: 1.50mm
Oil Ring Groove Width: 3.00mm
Pin Size: .9429" O.D.
Pin Type: Floating; Offset Location
Skirt Type: Coated
Piston Skirt Clearance: 0.001"
Piston Type: Flat Top

Part TypePiston

BrandCLEVITE MAHLE

Package Height2.3

Package Width3.0

Package Length4.1

Weight1.43 PG

Part CategoryReplacement Parts

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations

Piston With Rings 1997-2004 Chevy LS V8 5.7L (LS1) with 3.898"/99mm Bore (Standard)
