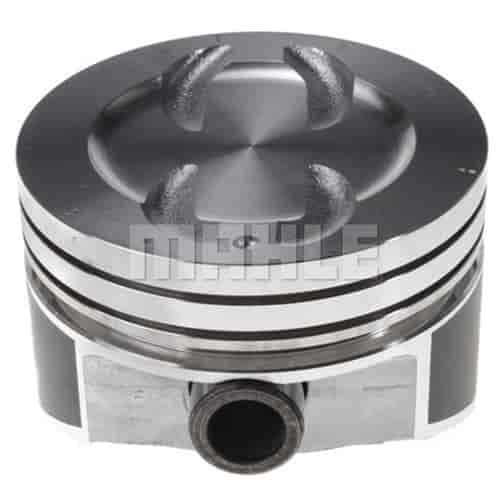

Hypereutectic Piston Set 1971-1995 Small Block Chevy 350 ci (5.7L) with 4.020 in. Bore (+.020 in.)

Name: Hypereutectic Piston Set 1971-1995 Small Block Chevy 350 ci (5.7L) with 4.020 in. Bore (+.020 in.)
Brand: CLEVITE MAHLE
SKU: 695-2243543020
Price: 194.99 USD
Availability: InStock

^$194⁹⁹

Ships on 09/18/2026

Lowest Price Guarantee

Hypereutectic Piston Set

1971-1995

Small Block Chevy 350 ci (5.7L)

4.020 in. Bore (+.020 in.)

Dish with 4 Valve Reliefs

Coated Skirt

Sold Individually

Rings Not Included

Technical Specs:

Material: Hypereutectic
Bore: 4.020' (101.6mm)
Piston Top: Recessed Head w/4 Valve Reliefs; 0.1023" Recess Depth; w/2.767" diameter
Compression Height: 1.55"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Pin Size: 0.927" O.D. (23.553mm)
Pin Type: Offset Location
Skirt Type: Coated
Piston Skirt Clearance: 0.002"

Part TypePiston

BrandCLEVITE MAHLE

Package Height3.0

Package Width4.4

Package Length4.4

Weight1.55 PG

Part CategoryReplacement Parts

Vendor Part Number2243543020

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations

Hypereutectic Piston Set 1971-1995 Small Block Chevy 350 ci (5.7L) with 4.020 in. Bore (+.020 in.)
